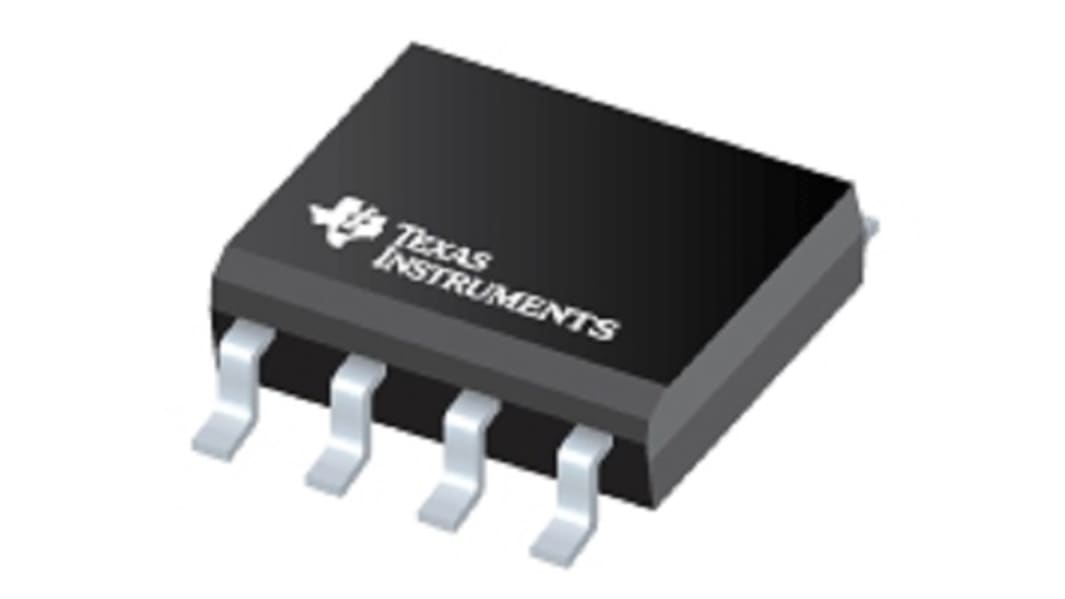

Texas Instruments xx555 SE555D Precision Timer, 1, 8-Pin SOIC
- RS Stock No.:
- 268-3176
- Mfr. Part No.:
- SE555D
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£5.78
(exc. VAT)
£6.94
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- 10 left, ready to ship
- Final 1,500 unit(s) shipping from 31 December 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £0.578 | £5.78 |
| 20 - 40 | £0.567 | £5.67 |
| 50 + | £0.549 | £5.49 |
*price indicative
- RS Stock No.:
- 268-3176
- Mfr. Part No.:
- SE555D
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Precision Timer | |
| Mount Type | Surface | |
| Sub Type | General Purpose Timer | |
| Package Type | SOIC | |
| Number of Internal Timers | 1 | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 18V | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Propagation Delay Time @ M | 15ns | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.58mm | |
| Length | 4.9mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Propagation Delay Test Condition | 15pF | |
| Series | xx555 | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Precision Timer | ||
Mount Type Surface | ||
Sub Type General Purpose Timer | ||
Package Type SOIC | ||
Number of Internal Timers 1 | ||
Pin Count 8 | ||
Maximum Supply Voltage 18V | ||
Minimum Supply Voltage 4.5V | ||
Maximum Propagation Delay Time @ M 15ns | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.58mm | ||
Length 4.9mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Propagation Delay Test Condition 15pF | ||
Series xx555 | ||
