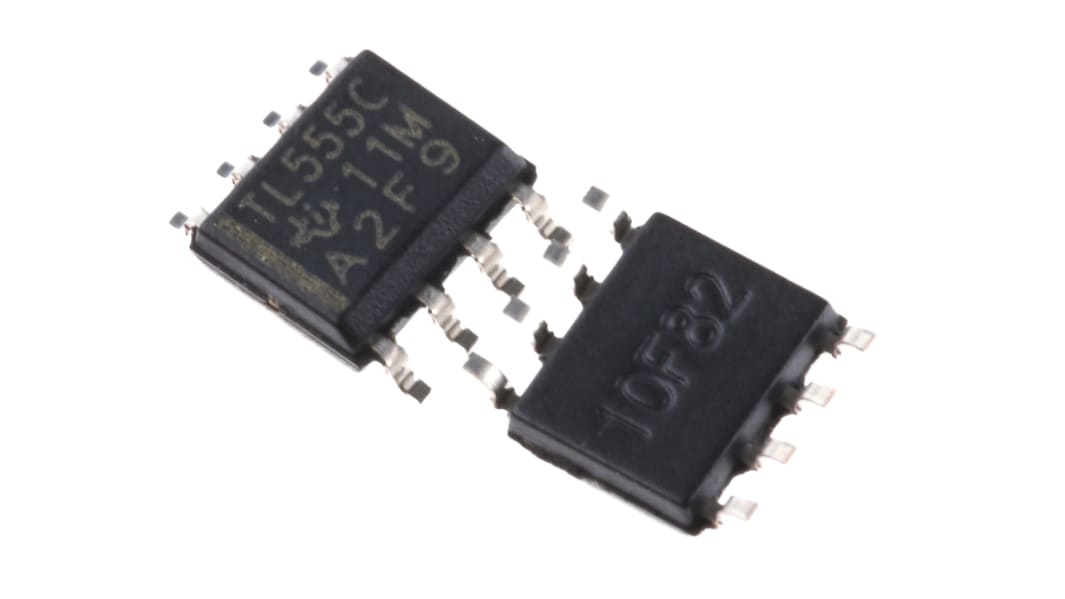

Texas Instruments TLC555CDR, Timer Circuit 2MHz, 8-Pin SOIC
- RS Stock No.:
- 662-4006
- Mfr. Part No.:
- TLC555CDR
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.79
(exc. VAT)
£3.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
- Plus 40 unit(s) ready to ship from another location
- Plus 2,410 unit(s) shipping from 11 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.279 | £2.79 |
50 - 90 | £0.265 | £2.65 |
100 - 240 | £0.251 | £2.51 |
250 - 490 | £0.237 | £2.37 |
500 + | £0.229 | £2.29 |
*price indicative
- RS Stock No.:
- 662-4006
- Mfr. Part No.:
- TLC555CDR
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Mounting Type | Surface Mount | |
Timer Type | Standard | |
Package Type | SOIC | |
Number of Internal Timers | 1 | |
Pin Count | 8 | |
Maximum Input Frequency | 2MHz | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Operating Supply Voltage | 15 V | |
Minimum Operating Temperature | 0 °C | |
Maximum Operating Temperature | +70 °C | |
Maximum Low Level Output Current | 100mA | |
Maximum High Level Output Current | -10mA | |
Width | 3.91mm | |
Height | 1.58mm | |
Dimensions | 4.9 x 3.91 x 1.58mm | |
Length | 4.9mm | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Mounting Type Surface Mount | ||
Timer Type Standard | ||
Package Type SOIC | ||
Number of Internal Timers 1 | ||
Pin Count 8 | ||
Maximum Input Frequency 2MHz | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 15 V | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature +70 °C | ||
Maximum Low Level Output Current 100mA | ||
Maximum High Level Output Current -10mA | ||
Width 3.91mm | ||
Height 1.58mm | ||
Dimensions 4.9 x 3.91 x 1.58mm | ||
Length 4.9mm | ||
