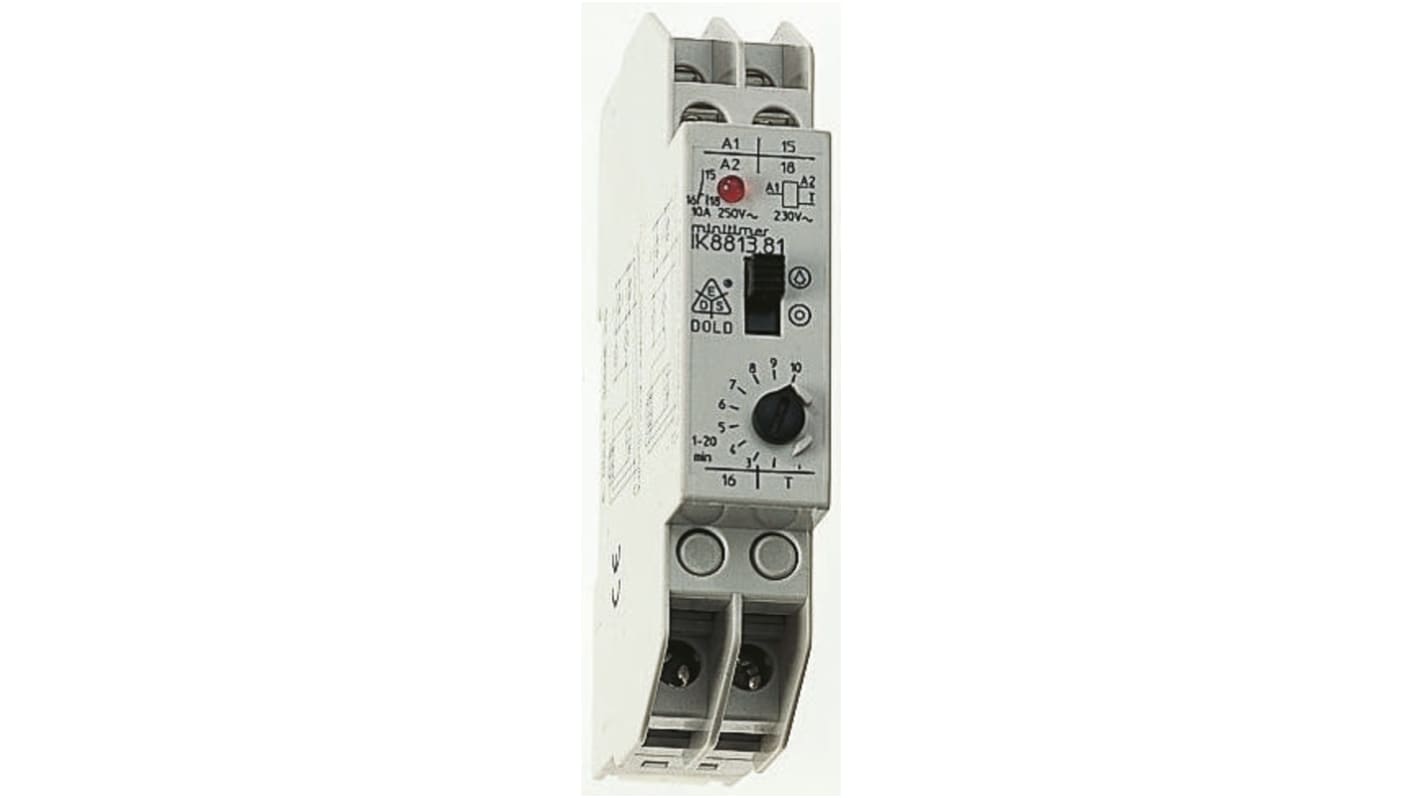

Dold MINITIMER Timer Light Switch 230V ac
- RS Stock No.:
- 240-9314
- Mfr. Part No.:
- IK8813.81 AC50/60Hz 230V 1-20M
- Brand:
- Dold
Subtotal (1 unit)*
£106.25
(exc. VAT)
£127.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £106.25 |
*price indicative
- RS Stock No.:
- 240-9314
- Mfr. Part No.:
- IK8813.81 AC50/60Hz 230V 1-20M
- Brand:
- Dold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dold | |
| Product Type | Timer Light Switch | |
| Number of Channels | 1 | |
| Contact Configuration | SPDT | |
| Maximum Supply Voltage | 230V ac | |
| Series | MINITIMER | |
| Height | 86mm | |
| Depth | 58mm | |
| Select all | ||
|---|---|---|
Brand Dold | ||
Product Type Timer Light Switch | ||
Number of Channels 1 | ||
Contact Configuration SPDT | ||
Maximum Supply Voltage 230V ac | ||
Series MINITIMER | ||
Height 86mm | ||
Depth 58mm | ||
- COO (Country of Origin):
- MT
IK8813 - staircase light time switch
Staircase lighting timer, can also be used for courtyard, garden, garage, storeroom and cellar lighting, as well as ventilators, dryers and other electrical technology.
Can be switched off before time lapse
Running time 1 → 20 min
With continuous light switch and LED display for contact positioning
For serial-mounted installation, overall width 17.5 mm
Design and function
The IK8813 time switch is controlled by an electronic timing element.
This can be configured using keys and by means of 3- or 4-wire technology, whereby the key and the device must be connected to the same phase.
Staircase
