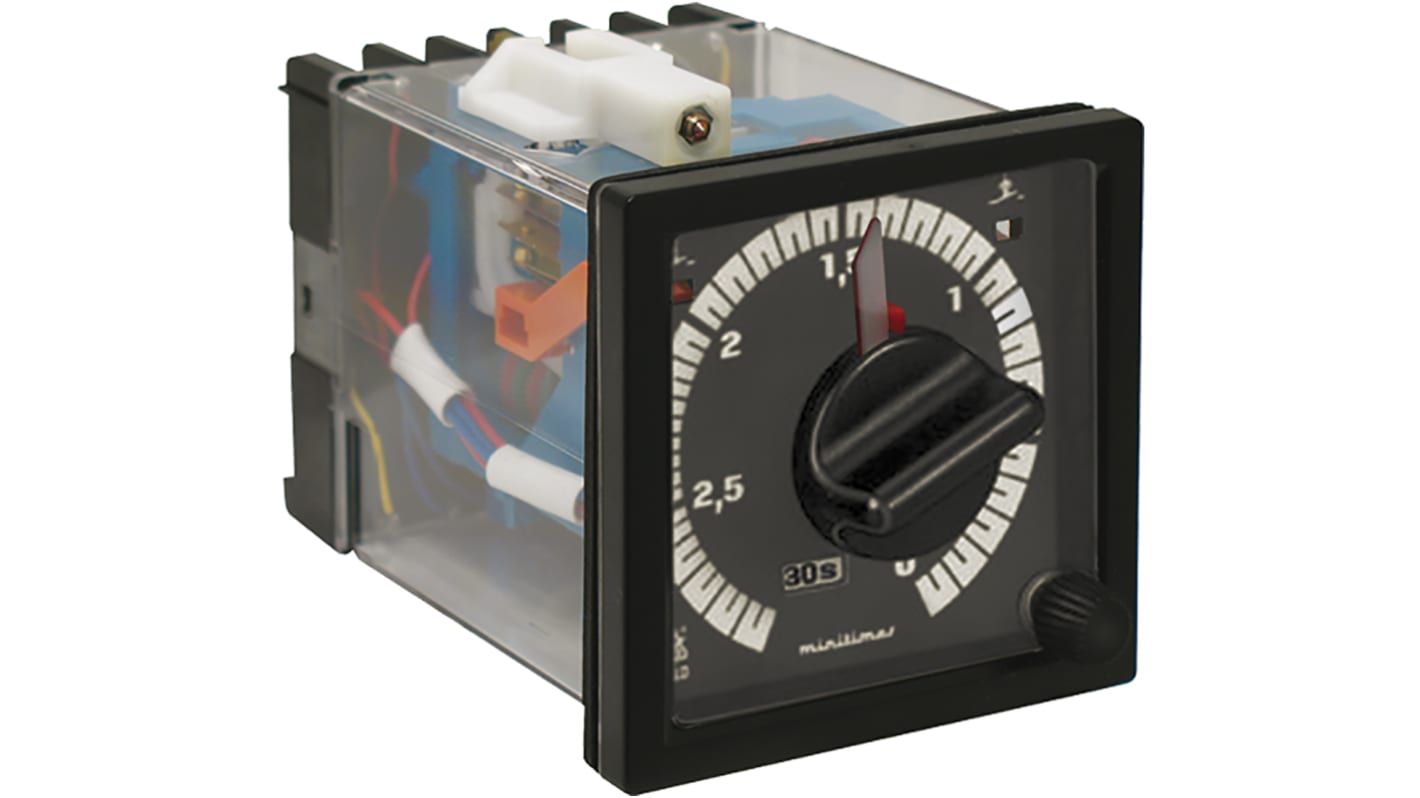

Dold EF7616 Series Panel Mount Timer Relay, 230V ac, 4-Contact, 15 → 1000s, 1-Function, DPDT

View all Timer Relays

Subtotal (1 unit)*

£257.39

(exc. VAT)

£308.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£257.39

*price indicative

RS Stock No.:
181-2807
Mfr. Part No.:
EF7616.24 AC50/60Hz 230V 0,15-1000s
Brand:
Dold
Find similar products by selecting one or more attributes.
Select all

Brand

Dold

Supply Voltage

230V ac

Mounting Type

Panel Mount

Mode of Operation

Continuous

Time Range

15 → 1000s

Number of Contacts

4

Number of Timer Functions

Single

Contact Configuration

DPDT

Time Increment

Seconds

Maximum Current

3A

Maximum Voltage

230V ac

Switch Configuration

SPDT

Terminal Type

Screw

Power Supply

External

Width

128mm

Series

EF7616

Length

72mm

Depth

72mm

Maximum Operating Temperature

+55°C

Time Delay

<60ms

Minimum Operating Temperature

-20°C

COO (Country of Origin):
DE
Delay up to 60 h
6 switchable time ranges, adjustable on front side
Repeat accuracy ≤ ± 0.5 % (≤ ± 1 % for ranges 3 s and 6 s)
Time lapse display
Switching position display (except for EH 7616)
With instantaneous contact
Available no-voltage safe
EF 7616: front side, protected against beam water, IP 65
AA 7616: width 45 mm
EC 7616: front surface 48 x 72 mm
EF 7616: front surface 2 x 72 mm
EH 7616: front surface 96 x 96 mm
Application
Time dependent controls
