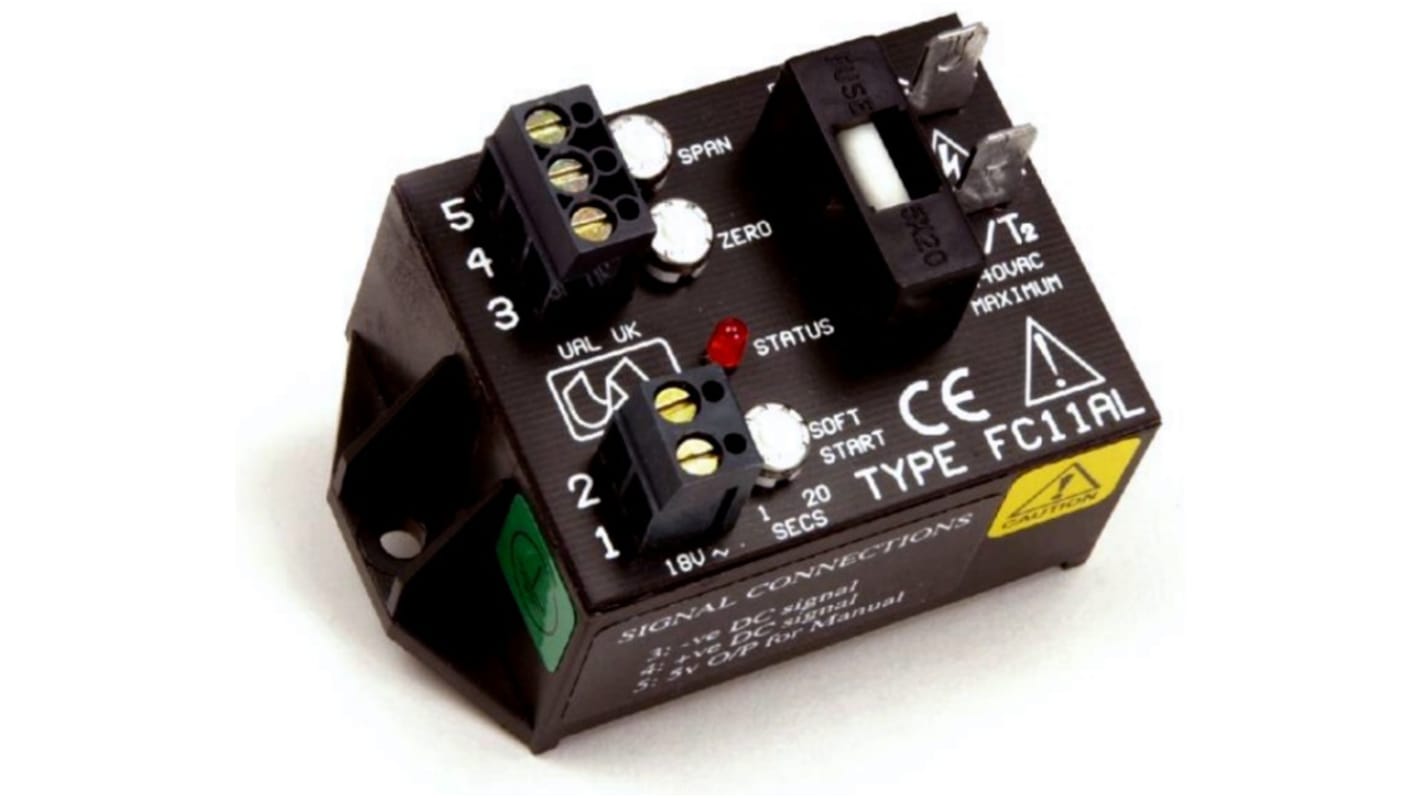

United Automation FC11AL, Phase-Angle Firing Module

View all Thyristors
Bulk discount available

Subtotal (1 unit)*

£86.29

(exc. VAT)

£103.55

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 23 February 2026
  • Plus 5 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£86.29
2 - 4£82.84
5 - 9£79.57
10 - 19£76.37
20 +£73.26

*price indicative

RS Stock No.:
214-3878
Mfr. Part No.:
FC11AL
Brand:
United Automation
Find similar products by selecting one or more attributes.
Select all

Brand

United Automation

Product Type

Phase-Angle Firing Module

Mount Type

Surface

Minimum Operating Temperature

0°C

Maximum Operating Temperature

65°C

Standards/Approvals

I.E.T. Regulations (BS7671)

Series

FC11AL

Automotive Standard

No

COO (Country of Origin):
GB

Universal Phase Angle Trigger Module, FC11AL


Phase angle trigger module for resistive & inductive loads. The MONO-LINK firing system is ideal for use with inductive loads via triac or thyristor on single phase-to-neutral, phase-to-phase supplies.

Remote power transformer for increased reliability and wide operational voltage capacity

MONO-LINK® gate-to-gate firing

High isolation opto-coupled output

Voltage control or 4-20mA current loop

Adjustable soft-start function

Auxiliary 5Vdc output for manual control

Status indication

The number of complete mains cycles during fixed repeating periods (typically 1 to 10 seconds) is varied, thus altering the duty cycle or on-/off-time ratio. Trigger pulses coincide with the zero-crossing times of the mains supply thus ensuring no RFI is produced when using resistive loads.

Note

Power transformer NOT included
