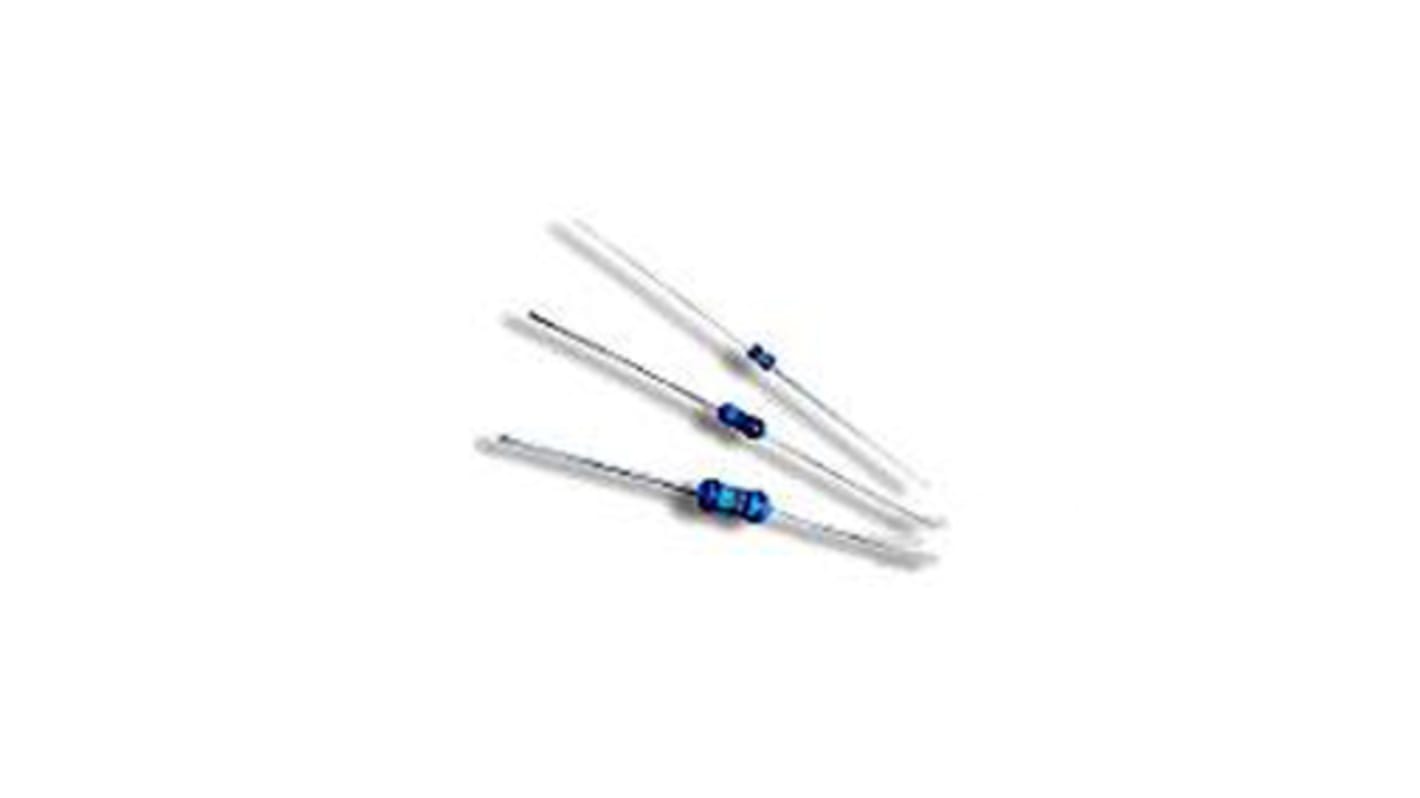

TE Connectivity 10kΩ Thin Film Resistor 0.25W ±0.1% 1622796-6
- RS Stock No.:
- 137-2593
- Mfr. Part No.:
- 1622796-6
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 1000 units)*
£170.00
(exc. VAT)
£200.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,000 unit(s) shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | £0.17 | £170.00 |
| 2000 - 4000 | £0.163 | £163.00 |
| 5000 + | £0.156 | £156.00 |
*price indicative
- RS Stock No.:
- 137-2593
- Mfr. Part No.:
- 1622796-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 10kΩ | |
| Power Rating | 0.25W | |
| Tolerance | ±0.1% | |
| Technology | Thin Film | |
| Series | YR1 | |
| Maximum Operating Temperature | +155°C | |
| Temperature Coefficient | ±5ppm/°C | |
| Minimum Operating Temperature | -65°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 10kΩ | ||
Power Rating 0.25W | ||
Tolerance ±0.1% | ||
Technology Thin Film | ||
Series YR1 | ||
Maximum Operating Temperature +155°C | ||
Temperature Coefficient ±5ppm/°C | ||
Minimum Operating Temperature -65°C | ||
- COO (Country of Origin):
- IN
TE Connectivity R Series of Precision Metal Film Fixed Resistors
The R series from TE Connectivity offers a highly reliable range of precision metal film fixed resistors. These resistors offers high precision with a tolerance to 0.1% and temperature coefficients to 15ppm. The range provides great stability under heavy load and different environmental conditions and can be used in a wide -65°C to +155°C operating temperature making them perfect for applications where long-term stability is essential.
Features & Benefits
Precision Metal Film Fixed Resistors
High precision with a tolerance of 0.1% & temperature coefficients to 15ppm
Great stability under heavy loads
Wide -65°C to +155°C operating temperature
The resistive element comprises a thin film of nickel-chrome alloy evaporated onto a high thermal conductivity ceramic element. Metal end caps are force fitted to the element prior to spiralling to value. Tinned copper lead wires are welded to the end caps and the components are then coated. One coat of phenolic resin is followed by three coats of epoxy resin. All resistors are tested for value and tolerance.
Precision metal film resistors with tolerance to 0.1% and temperature coefficients to 15ppm
Metal film resistors have excellent stability under load and severe environmental conditions. They exhibit very low noise current and voltage coefficients. Precision metal film resistors are particularly suitable in all applications where long-term stability is important.
Metal film resistors have excellent stability under load and severe environmental conditions. They exhibit very low noise current and voltage coefficients. Precision metal film resistors are particularly suitable in all applications where long-term stability is important.
