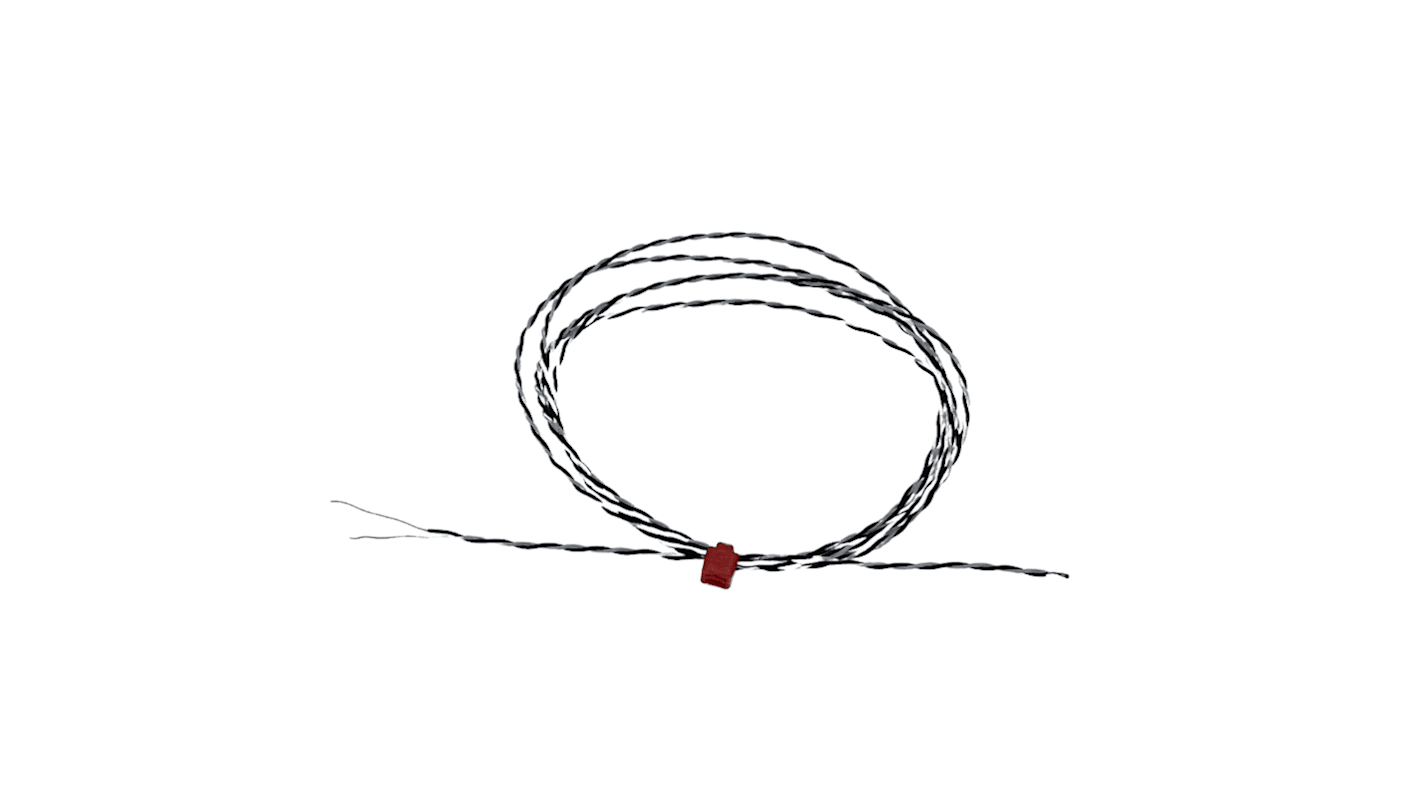

RS PRO Type J Exposed Junction Thermocouple 2m Length, 1/0.5mm Diameter, -75°C → +250°C
- RS Stock No.:
- 271-3172
- Brand:
- RS PRO
Subtotal (1 unit)*
£9.70
(exc. VAT)
£11.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15 unit(s) shipping from 13 October 2025
- Plus 5 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.70 |
*price indicative
- RS Stock No.:
- 271-3172
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thermocouple Type | J | |
| Probe Diameter | 1/0.5mm | |
| Probe Length | 2m | |
| Probe Material | PFA | |
| Maximum Temperature Sensed | +250°C | |
| Series | XQ | |
| Termination Type | Bare Wire Tail | |
| Cable Length | 2m | |
| Standards Met | IEC, RoHS Compliant | |
| Minimum Temperature Sensed | -75°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thermocouple Type J | ||
Probe Diameter 1/0.5mm | ||
Probe Length 2m | ||
Probe Material PFA | ||
Maximum Temperature Sensed +250°C | ||
Series XQ | ||
Termination Type Bare Wire Tail | ||
Cable Length 2m | ||
Standards Met IEC, RoHS Compliant | ||
Minimum Temperature Sensed -75°C | ||
- COO (Country of Origin):
- GB
RS PRO Type J Thermocouple
This RS PRO range of Type J, K and T fast response welded exposed junction thermocouples have been designed with the highest quality and versatility in mind and feature fine wire temperature sensors and insulated twin-twisted 1/0.2 mm lead. These thermocouples have an exposed welded junction which enables them to operate with a fast response time and a Class 1 tolerance for optimum performance, offering the quality you would expect from RS PRO.
Features and Benefits
- IEC-584-3 class 1 tolerance for optimum accuracy
- Class 1 cable specification with a bare tail’s termination
- Exposed welded junction for fast response
- PFA insulated twin-twisted lead offers versatility and flexibility
Temperature ranges from -75 to +250°C
Applications
These RS PRO type K, J and T thermocouple temperature sensors are useful in a wide range of temperature monitoring applications and environments, particularly in test and development applications including but not limited to:
Test and measurement
Temperature mapping
OEM applications
Test and measurement
Temperature mapping
OEM applications
