Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

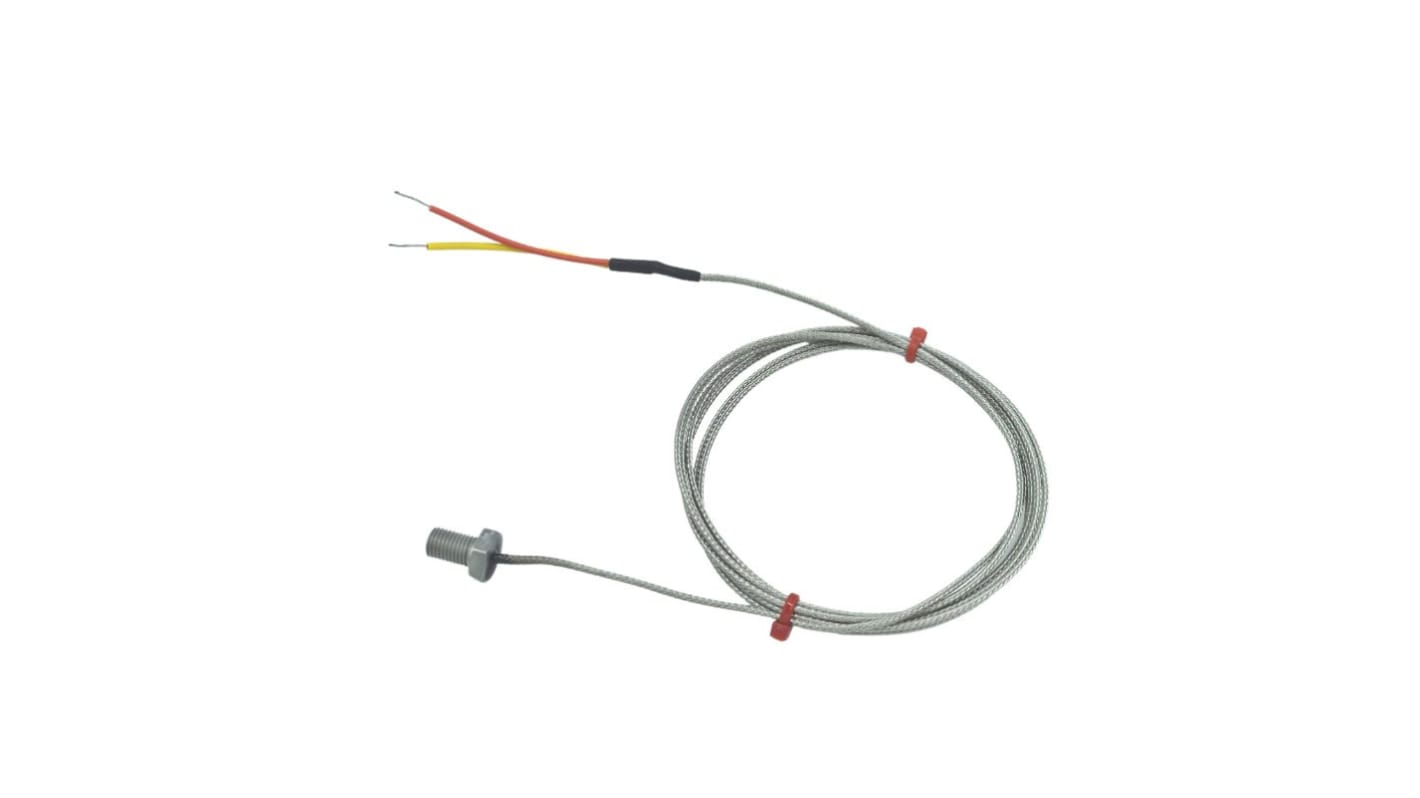

RS PRO ANSI M12 x 25mm Type K Bolt Thermocouple (2m)
A reliable and consistent Type K bolt thermocouple for the direct measurement of temperature in engines, boilers, industrial equipment and machinery. Comprising of an M12x25mm bolt sensor connected to a 2m Glassfibre Stainless Steel braided cable terminating in ANSI colour coded bare wire tails.
Bolt sensors are designed to be screwed directly into the surface or body of the machinery being measured providing a fast response time and very accurate measurements and are suitable for temperatures up to 250°C.
The Type K thermocouple features grounding on the bolts reducing the risk of electric shocks and the Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.
A hardwearing, reliable and accurate bolt type Type K thermocouple suitable for harsh industrial environments.
Features and Benefits
M12 x 25mm Bolt thermocouple
1mm pitch
Type K
Bare tails
Glassfibre Stainless Steel braided cable
Grounded junction
Cable length of 2 m
Maximum temperature measurement of +250°C
ANSI colour coded
Standards and Approvals: ANSI MC96.1
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
---|---|
Thermocouple Type | K |
Probe Diameter | 12mm |
Probe Length | 25mm |
Probe Material | Stainless Steel |
Maximum Temperature Sensed | +250°C |
Series | Bolt Thermocouple |
Termination Type | Bare Wire Tail |
Cable Length | 2m |
Standards Met | ANSI |
