RS PRO Type K Bolt Thermocouple 25mm Length, 10mm Diameter → +250°C

View all Thermocouples
Bulk discount available

Subtotal (1 unit)*

£54.28

(exc. VAT)

£65.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 5 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£54.28
10 - 99£52.65
100 +£43.42

*price indicative

RS Stock No.:
268-4390
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thermocouple Type

K

Probe Diameter

10mm

Probe Length

25mm

Maximum Temperature Sensed

+250°C

Probe Material

Stainless Steel

Series

Bolt Thermocouple

Termination Type

Bare Wire Tail

Cable Length

2m

Standards Met

JIS

RoHS Status: Exempt

COO (Country of Origin):
GB

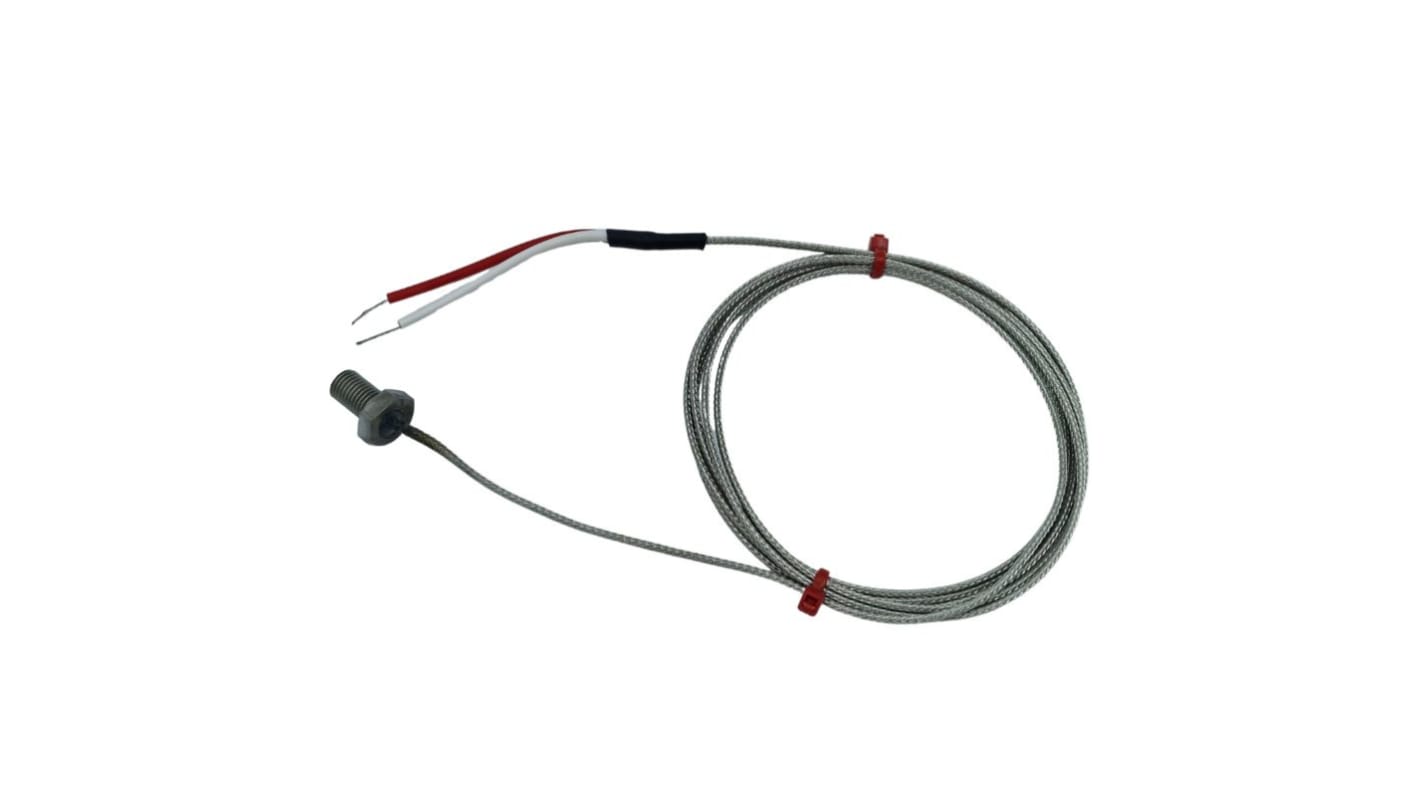

RS PRO JIS M10 x 25mm Type K Bolt Thermocouple (2m)


A reliable and consistent Type K bolt thermocouple for the direct measurement of temperature in engines, boilers, industrial equipment and machinery. Comprising of an M10x25mm bolt sensor connected to a 2m Glassfibre insulated Stainless Steel braided cable terminating in JIS colour coded bare wire tails.

Bolt sensors are designed to be screwed directly into the surface or body of the machinery being measured providing a fast response time and very accurate measurements and are suitable for temperatures up to 250°C.

The Type K thermocouple features grounding on the bolts reducing the risk of electric shocks and the Glassfibre Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.

A hardwearing, reliable and accurate bolt type Type K thermocouple suitable for harsh industrial environments.

Features and Benefits


M10 x 25mm Bolt thermocouple

1mm pitch

Type K

Bare tails

Glassfibre Stainless Steel braided cable

Cable length of 2 m

Grounded Junction

Maximum temperature measurement of +250°C

JIS colour coded

Standards and Approvals: JIS
