RS PRO Bolt Thermocouple Type K Bolt Thermocouple 13 mm Length, 12 mm Diameter → 250 °C Max
- RS Stock No.:
- 268-4384
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£45.55
(exc. VAT)
£54.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £45.55 |
| 10 - 99 | £44.18 |
| 100 + | £36.44 |
*price indicative
- RS Stock No.:
- 268-4384
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Bolt Thermocouple | |
| Thermocouple Type | K | |
| Probe Diameter | 12mm | |
| Probe Length | 13mm | |
| Probe Material | 303 Stainless Steel | |
| Maximum Temperature Sensed | 250°C | |
| Terminal Type | Bare Wire Tail | |
| Series | Bolt Thermocouple | |
| Cable Length | 2m | |
| Standards/Approvals | RoHS Compliant, ANSI | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Bolt Thermocouple | ||
Thermocouple Type K | ||
Probe Diameter 12mm | ||
Probe Length 13mm | ||
Probe Material 303 Stainless Steel | ||
Maximum Temperature Sensed 250°C | ||
Terminal Type Bare Wire Tail | ||
Series Bolt Thermocouple | ||
Cable Length 2m | ||
Standards/Approvals RoHS Compliant, ANSI | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

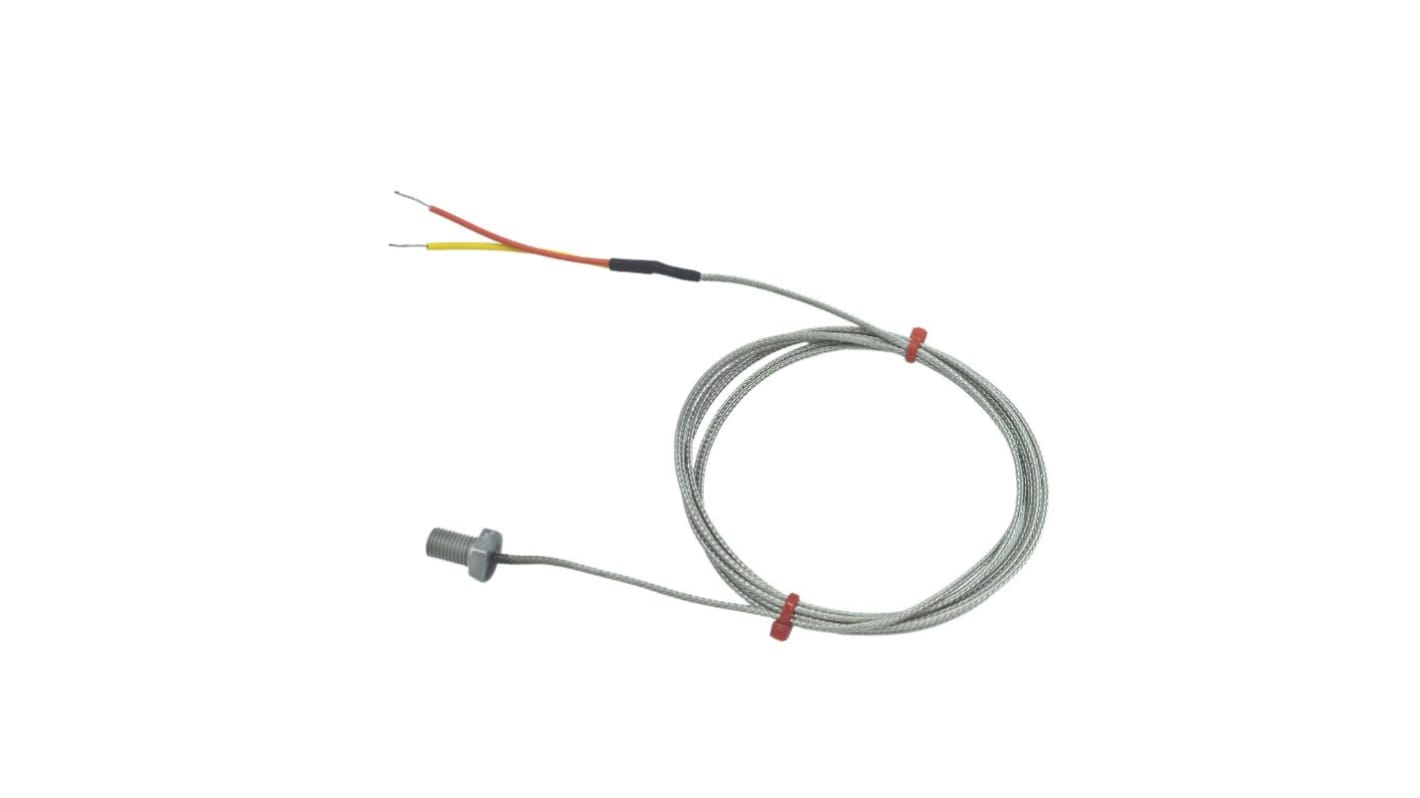

RS PRO ANSI M12 x 13mm Type K Bolt Thermocouple (2m)
A reliable and consistent Type K bolt thermocouple for the direct measurement of temperature in engines, boilers, industrial equipment and machinery. Comprising of an M12x13mm bolt sensor connected to a 2m Glassfibre Stainless Steel braided cable terminating in ANSI colour coded bare wire tails.;Bolt sensors are designed to be screwed directly into the surface or body of the machinery being measured providing a fast response time and very accurate measurements and are suitable for temperatures up to 250°C.;The Type K thermocouple features grounding on the bolts reducing the risk of electric shocks and the Glassfibre insulated Stainless Steel braided cable protects against wearing and mechanical stresses, and features excellent heat and thermal resistance.; A hardwearing, reliable and accurate bolt type Type K thermocouple suitable for harsh industrial environments.
Features and Benefits
M12 x 13mm Bolt thermocouple;1mm pitch;Type K ;Bare tails;Glassfibre Stainless Steel braided cable;Grounded junction;Cable length of 2 m;Maximum temperature measurement of +250°C;ANSI colour coded
Standards and Approvals: ANSI MC96.1
