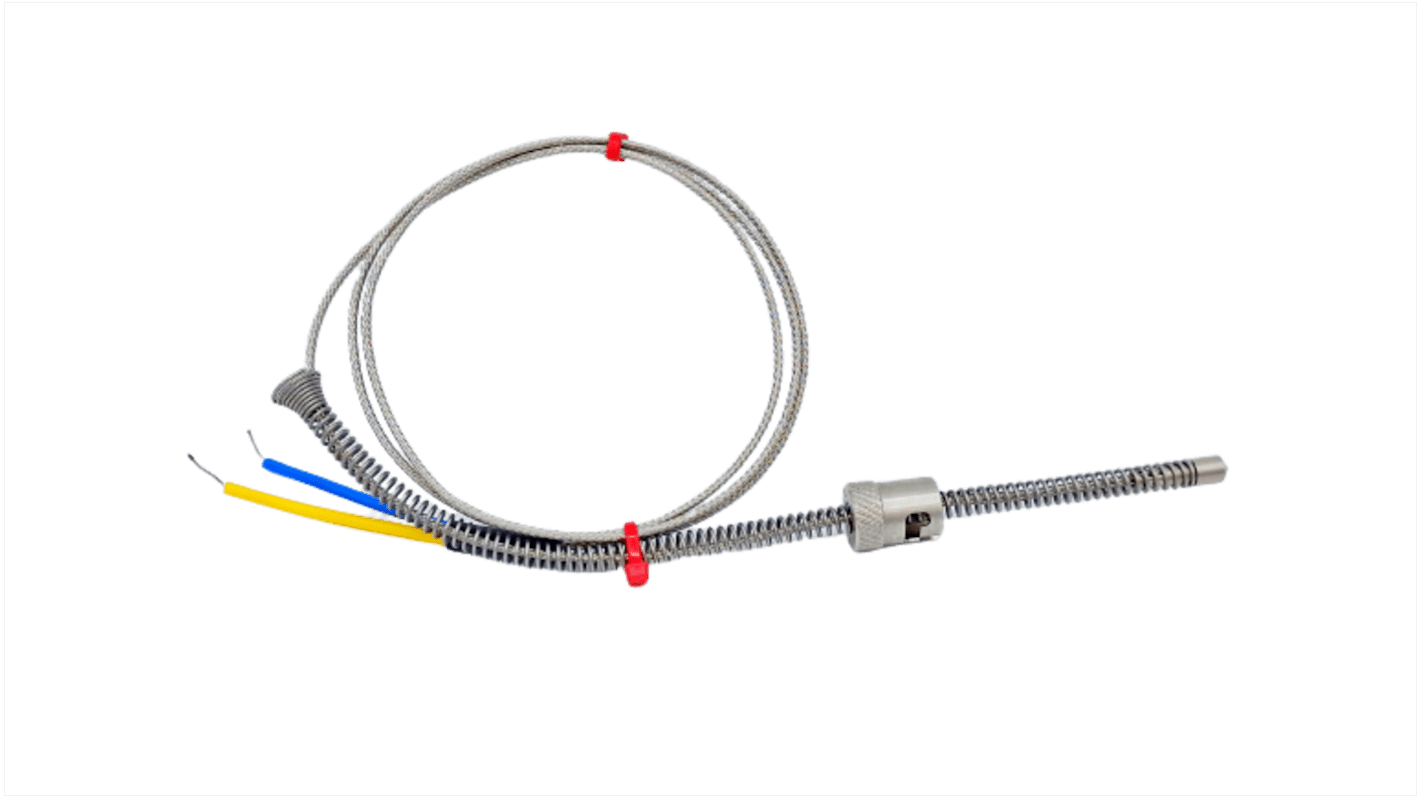

RS PRO Type J Adjustable Bayonet Thermocouple 3m Length, 6mm Diameter → +350°C
- RS Stock No.:
- 252-2430
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£36.41
(exc. VAT)
£43.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
- Plus 25 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £36.41 |
10 - 49 | £35.32 |
50 + | £29.13 |
*price indicative
- RS Stock No.:
- 252-2430
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thermocouple Type | J | |
Probe Diameter | 6mm | |
Probe Length | 3m | |
Maximum Temperature Sensed | +350°C | |
Termination Type | Bare Wire Tail | |
Cable Length | 3m | |
Standards Met | BS | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thermocouple Type J | ||
Probe Diameter 6mm | ||
Probe Length 3m | ||
Maximum Temperature Sensed +350°C | ||
Termination Type Bare Wire Tail | ||
Cable Length 3m | ||
Standards Met BS | ||
- COO (Country of Origin):
- GB
RS PRO Type Type J Thermocouple 6mm Diameter → +350°C
From RS PRO a Type K thermocouple temperature sensor designed for measuring heat changes in reducing atmospheres. This heavy duty thermocouple sensor has a rugged design with a glass fibre insulated lead and stainless steel over braid and its sensed temperature range of -60°C to +350°C means it is suitable for use in harsh environments.
How does a Thermocouple Work?
A thermocouple is a sensor used to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ends to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect
Properties of Glassfibre Insulation
Glassfibre wire insulation is flexible with a good temperature range but does not prevent the ingress of fluids
Features and Benefits
- BS Type J Adjustable Bayonet Thermocouple
- Colour coded to former British standard
- Glassfibre insulated lead with stainless steel overbraid
- Adjustable single slot bayonet cap (11.4mm inside diameter)
Suitable for the plastics industry
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
