RS PRO RS238/1019 Calibrated Type Type J Mineral Insulated Thermocouple 1 m Length, 3 mm Diameter, -100 °C → 760 °C Max
- RS Stock No.:
- 174-1668
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£40.66
(exc. VAT)
£48.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.66 |
| 5 - 9 | £38.59 |
| 10 + | £36.60 |
*price indicative
Calibration Options:
- Calibration Type:
- RSCAL
- RS Stock No.
- 181-7322
Each
£70.16
(exc. VAT)
£84.19
(inc. VAT)
- RS Stock No.:
- 174-1668
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Mineral Insulated Thermocouple | |
| Thermocouple Type | Type J | |
| Probe Diameter | 3 mm | |
| Probe Length | 1m | |
| Maximum Temperature Sensed | 760°C | |
| Probe Material | 321 Stainless Steel | |
| Terminal Type | Miniature Plug | |
| Series | RS238/1019 | |
| Standards/Approvals | IEC, RoHS Compliant | |
| IsCalibrated | Yes | |
| Minimum Temperature Sensed | -100°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Mineral Insulated Thermocouple | ||
Thermocouple Type Type J | ||
Probe Diameter 3 mm | ||
Probe Length 1m | ||
Maximum Temperature Sensed 760°C | ||
Probe Material 321 Stainless Steel | ||
Terminal Type Miniature Plug | ||
Series RS238/1019 | ||
Standards/Approvals IEC, RoHS Compliant | ||
IsCalibrated Yes | ||
Minimum Temperature Sensed -100°C | ||
- COO (Country of Origin):
- GB
RS PRO Thermocouple

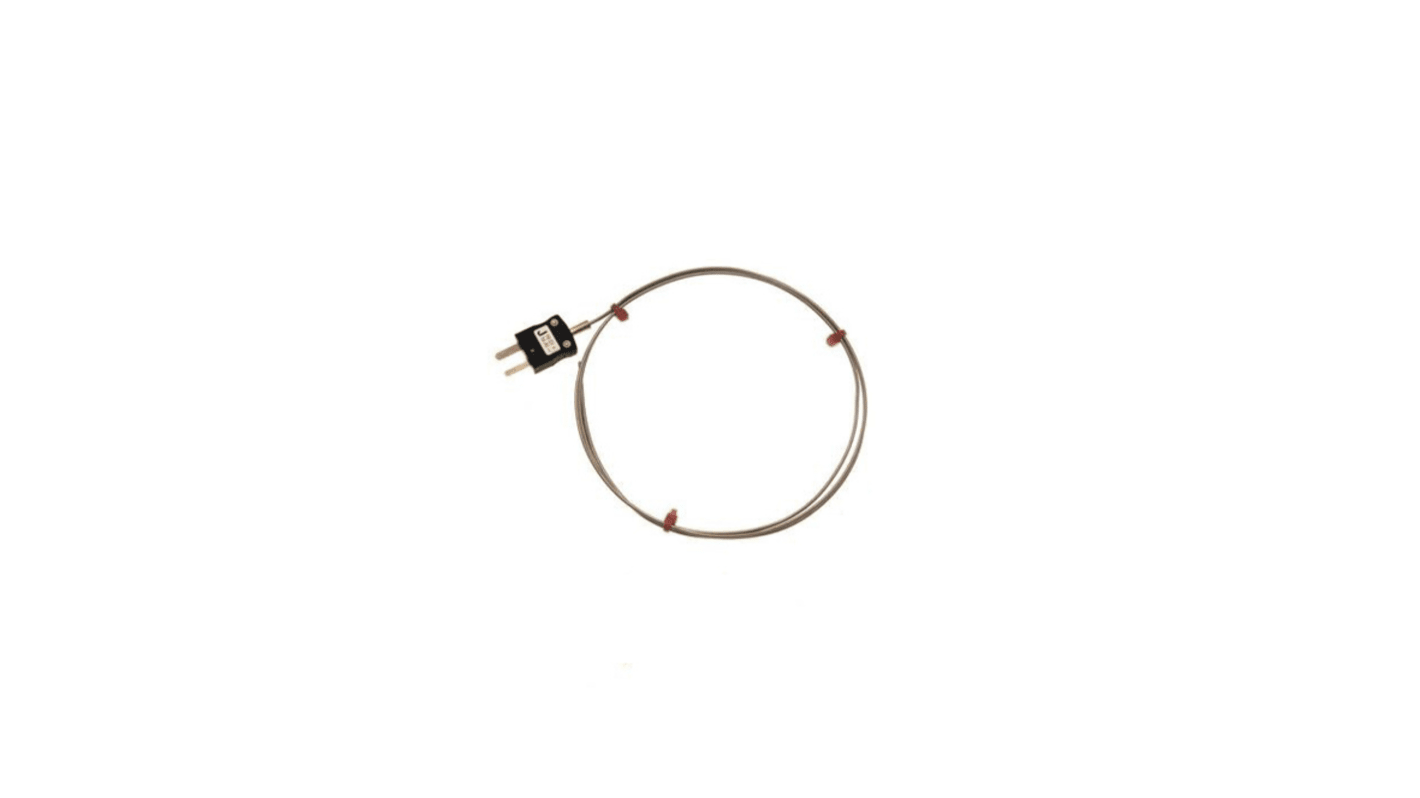

The RS PRO J type thermocouple has high flexibility. The sheath can be bent to suit the requirements of many applications and processes. It has 1m stainless steel probe and the temperature of probe is between -100°C and 760°C.
Features and Benefits
• Insulated hot junction
• Miniature plug termination with temperature range 200°C
Applications
• Industrial markets
• Power generation
• Temperature sensor
• Toasters
Certifications
• IEC 584 certified
