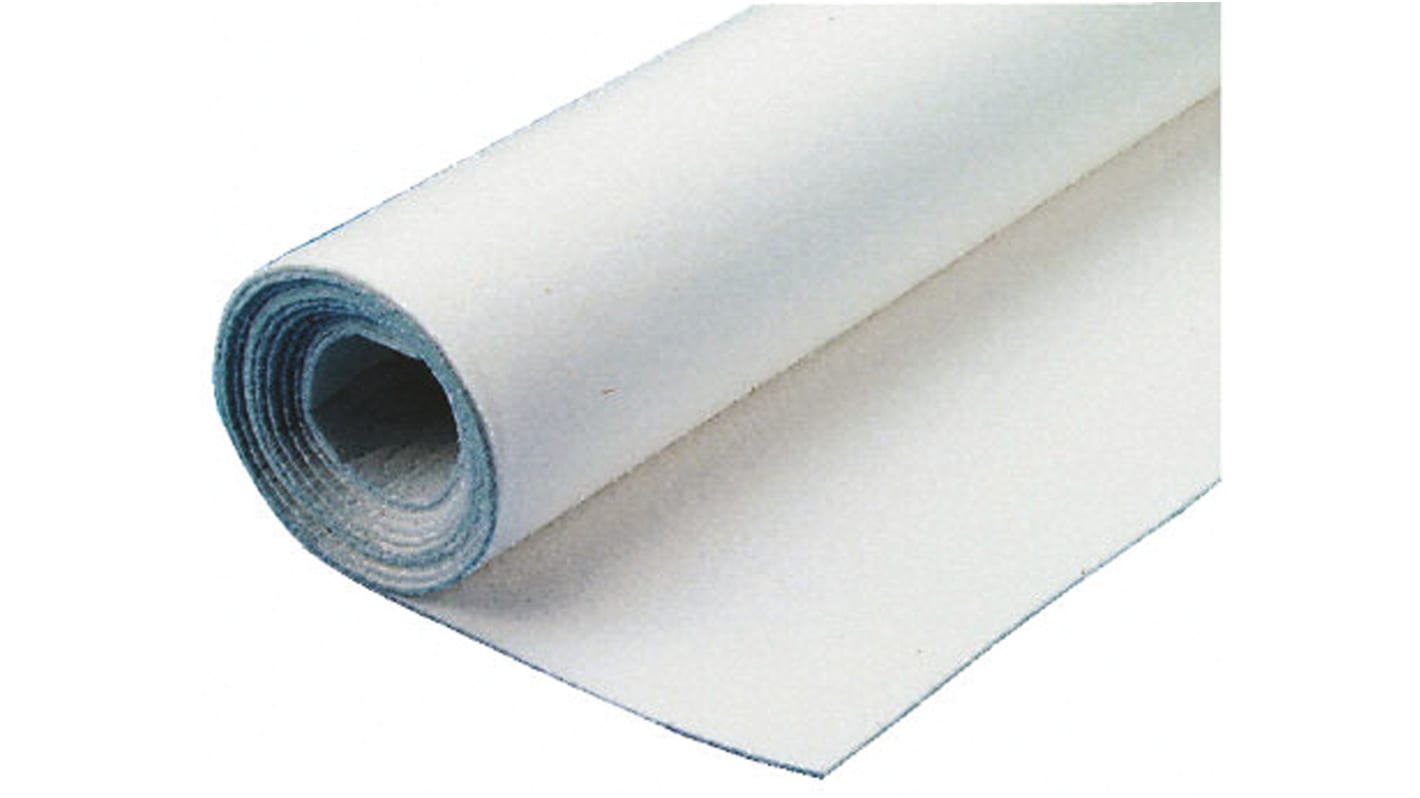

RS PRO Flame Retardant Calcium-Magnesium Silicate Thermal Insulating Sheet, 1.2m x 610mm x 9mm
- RS Stock No.:
- 840-5517
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 840-5517
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Material | Calcium-Magnesium Silicate | |
Maximum Operating Temperature | +1150 (Continuous) °C, +1300 (Short Term) °C | |
Form | Sheet | |
Length | 1.2m | |
Width | 610mm | |
Thickness | 9mm | |
Density | 210kg/m³ | |
Flame Retardant | Yes | |
Thermal Shock Resistant | Yes | |
Thermal Conductivity | 0.05 W/mK, 0.08 W/mK, 0.12 W/mK, 0.16 W/mK, 0.22 W/mK, 0.28 W/mKW/mK | |
Colour | White | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Material Calcium-Magnesium Silicate | ||
Maximum Operating Temperature +1150 (Continuous) °C, +1300 (Short Term) °C | ||
Form Sheet | ||
Length 1.2m | ||
Width 610mm | ||
Thickness 9mm | ||
Density 210kg/m³ | ||
Flame Retardant Yes | ||
Thermal Shock Resistant Yes | ||
Thermal Conductivity 0.05 W/mK, 0.08 W/mK, 0.12 W/mK, 0.16 W/mK, 0.22 W/mK, 0.28 W/mKW/mK | ||
Colour White | ||
- COO (Country of Origin):
- GB
Flame-Retardant Paper Thermal Insulation, 1.2 m x 610 mm x 9 mm
This flame-retardant thermal insulation sheet is made from alkaline earth silicate (AES) wool fibres bonded with a low percentage of organic binder. It's specially processed to offer excellent performance in high-temperature applications such as heat shields and heat containment.
As paper thermal insulation is flexible, it can be easily cut and shaped and is designed for use as a high-temperature gasket material. This makes it an ideal choice in expansion joints or as a thin thermal break. By stopping components touching, it can be used to prevent them from bonding.
Resistant to chemicals and solvents, this thermal insulation sheet works in ultra-high temperatures (up to +1150ºC), so it's suitable for use in industrial environments such as furnaces, ovens and boilers. As it's also flame-retardant, it can be used in passive fire protection systems and as an effective fire stop.
As paper thermal insulation is flexible, it can be easily cut and shaped and is designed for use as a high-temperature gasket material. This makes it an ideal choice in expansion joints or as a thin thermal break. By stopping components touching, it can be used to prevent them from bonding.
Resistant to chemicals and solvents, this thermal insulation sheet works in ultra-high temperatures (up to +1150ºC), so it's suitable for use in industrial environments such as furnaces, ovens and boilers. As it's also flame-retardant, it can be used in passive fire protection systems and as an effective fire stop.
Features and Benefits
• Flame-retardant thermal insulation sheet
• Thermal-shock resistant
• Sheet dimensions of 1.2 m x 610 mm
• Density of 210 kg/m³
• Maximum operating temperature of +1150ºC (continuous)
• Can withstand intermittent temperatures up to +1300ºC
• Thermal conductivity ranging from 0.04 W/mK to 0.25 W/mK
• Thermal-shock resistant
• Sheet dimensions of 1.2 m x 610 mm
• Density of 210 kg/m³
• Maximum operating temperature of +1150ºC (continuous)
• Can withstand intermittent temperatures up to +1300ºC
• Thermal conductivity ranging from 0.04 W/mK to 0.25 W/mK
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
