RS PRO Flame Retardant Calcium-Magnesium Silicate Thermal Insulating Sheet, 5m x 610mm x 6mm
- RS Stock No.:
- 724-8903
- Brand:
- RS PRO

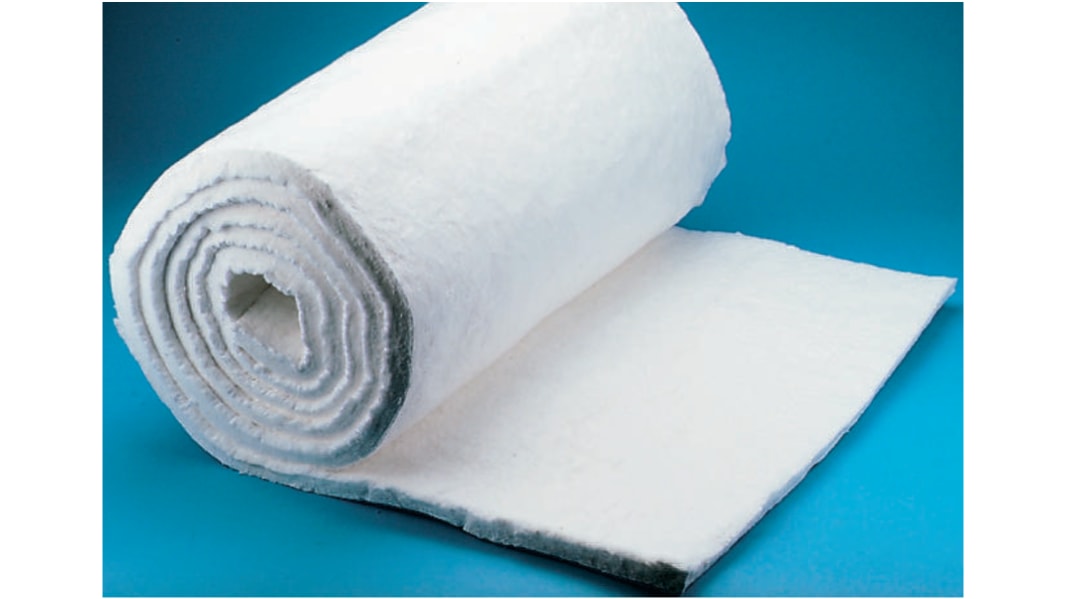

Image representative of range
Save 19% when you buy 12 units
Subtotal (1 unit)*
£95.92
(exc. VAT)
£115.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 189 unit(s) shipping from 01 October 2025
- Plus 28 unit(s) shipping from 01 October 2025
- Plus 48 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £95.92 |
3 - 5 | £89.21 |
6 - 11 | £84.41 |
12 + | £76.74 |
*price indicative
- RS Stock No.:
- 724-8903
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Material | Calcium-Magnesium Silicate | |
Maximum Operating Temperature | +1150°C | |
Form | Sheet | |
Length | 5m | |
Width | 610mm | |
Thickness | 6mm | |
Density | 128kg/m³ | |
Flame Retardant | Yes | |
Thermal Shock Resistant | Yes | |
Thermal Conductivity | 0.04 W/mK, 0.08 W/mK, 0.14 W/mK, 0.23 W/mK, 0.34 W/mK, 0.48W/mK | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Material Calcium-Magnesium Silicate | ||
Maximum Operating Temperature +1150°C | ||
Form Sheet | ||
Length 5m | ||
Width 610mm | ||
Thickness 6mm | ||
Density 128kg/m³ | ||
Flame Retardant Yes | ||
Thermal Shock Resistant Yes | ||
Thermal Conductivity 0.04 W/mK, 0.08 W/mK, 0.14 W/mK, 0.23 W/mK, 0.34 W/mK, 0.48W/mK | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Flame-Retardant Calcium-Magnesium Silicate Thermal Insulation, 5 m x 610 mm x 6 mm
This thermal insulation sheet is made from high-temperature insulating wool and doesn't contain any binders or lubricants. This means it won't give off fumes or smells during its first firing, making it suitable for use in heat recovery steam generator (HRSG) ducts and chimneys.
The blanket is flexible and easy to cut and shape, meaning installation is fuss-free. It's also flame-retardant, immune to thermal shock and resistant to chemicals. These attributes make it suitable for use in heat shields, mould-wrap insulation or as passive fire protection. In addition to its enhanced thermal properties, the insulation has no large dust particles, so it's soft to the touch and non-irritating during use.
As it meets the requirements under Note Q of European Regulation 1272/2008, the sheet is exempt from labelling requirements in Europe. A versatile product, you'll find it used in storage heaters and domestic ovens.
The blanket is flexible and easy to cut and shape, meaning installation is fuss-free. It's also flame-retardant, immune to thermal shock and resistant to chemicals. These attributes make it suitable for use in heat shields, mould-wrap insulation or as passive fire protection. In addition to its enhanced thermal properties, the insulation has no large dust particles, so it's soft to the touch and non-irritating during use.
As it meets the requirements under Note Q of European Regulation 1272/2008, the sheet is exempt from labelling requirements in Europe. A versatile product, you'll find it used in storage heaters and domestic ovens.
Features and Benefits
• Calcium-magnesium silicate thermal insulation sheet
• Flame-retardant
• Thermal shock resistant
• Dimensions of 5 m x 610 mm
• Classification temperature of +1300ºC
• Maximum continuous use temperature of +1150ºC
• Density of 128 kg/m³
• Tensile strength of 75 kPa
• Thermal conductivity ranges between 0.04 W/mK and 0.48 W/mK
• Flame-retardant
• Thermal shock resistant
• Dimensions of 5 m x 610 mm
• Classification temperature of +1300ºC
• Maximum continuous use temperature of +1150ºC
• Density of 128 kg/m³
• Tensile strength of 75 kPa
• Thermal conductivity ranges between 0.04 W/mK and 0.48 W/mK
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
