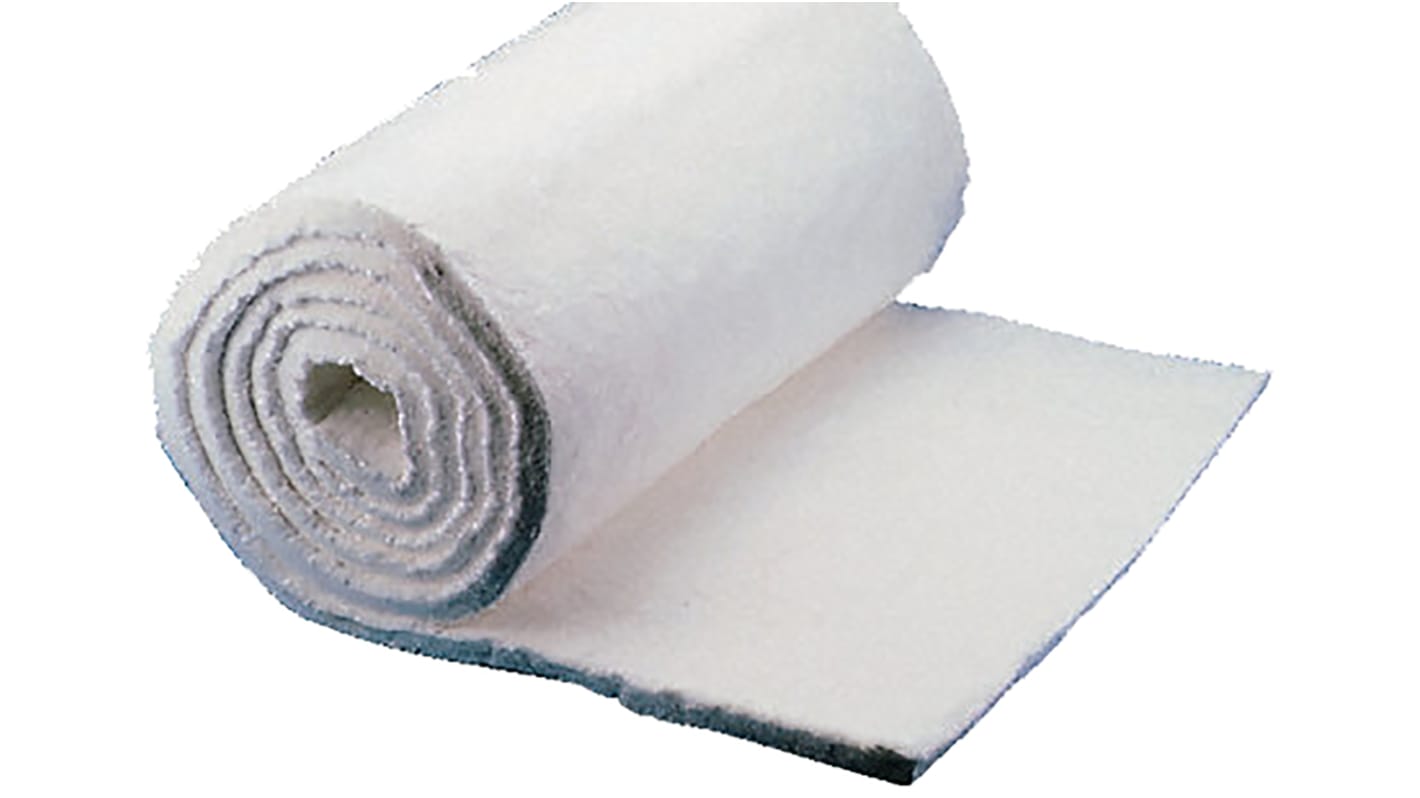

RS PRO Flame Retardant Calcium-Magnesium Silicate Thermal Insulating Sheet, 3.6m x 610mm x 13mm
- RS Stock No.:
- 137-2238
- Brand:
- RS PRO
Subtotal (1 unit)*
£153.77
(exc. VAT)
£184.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £153.77 |
*price indicative
- RS Stock No.:
- 137-2238
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Material | Calcium-Magnesium Silicate | |
Form | Sheet | |
Maximum Operating Temperature | +1200°C | |
Length | 3.6m | |
Width | 610mm | |
Thickness | 13mm | |
Density | 160kg/m³ | |
Flame Retardant | Yes | |
Thermal Shock Resistant | Yes | |
Thermal Conductivity | 0.03 W/mK, 0.07 W/mK, 0.12 W/mK, .19 W/mK, 0.27 W/mk, 0.38 W/mKW/mK | |
Colour | White | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Material Calcium-Magnesium Silicate | ||
Form Sheet | ||
Maximum Operating Temperature +1200°C | ||
Length 3.6m | ||
Width 610mm | ||
Thickness 13mm | ||
Density 160kg/m³ | ||
Flame Retardant Yes | ||
Thermal Shock Resistant Yes | ||
Thermal Conductivity 0.03 W/mK, 0.07 W/mK, 0.12 W/mK, .19 W/mK, 0.27 W/mk, 0.38 W/mKW/mK | ||
Colour White | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
RS PRO Fibre Thermal Insulating Sheet, 3.6 m x 610 mm x 13 mm
Thisl sheet from RS PRO provides outstanding thermal insulation for products that run at high temperatures. It's useful for lining chimneys and kilns or as an exhaust heat shield.
The sheet's flexible fibres make it pliable and easy to wrap around components such as exhausts. It's also extremely strong, so it won't tear when you stretch or shape it. As it contains no binders or lubricants, the insulation doesn't give off any harmful fumes or strong smells when it heats up. Its excellent thermal properties ensure it keeps hot components or surfaces cool to touch.
Because this product is highly resistant to chemicals and solvents it's a suitable choice for insulating greasy factory machinery. It meets environmental (ENV) 1094-3 standards, so you can be sure it presents no safety hazards when used in high-temperature applications.
The sheet's flexible fibres make it pliable and easy to wrap around components such as exhausts. It's also extremely strong, so it won't tear when you stretch or shape it. As it contains no binders or lubricants, the insulation doesn't give off any harmful fumes or strong smells when it heats up. Its excellent thermal properties ensure it keeps hot components or surfaces cool to touch.
Because this product is highly resistant to chemicals and solvents it's a suitable choice for insulating greasy factory machinery. It meets environmental (ENV) 1094-3 standards, so you can be sure it presents no safety hazards when used in high-temperature applications.
Features and Benefits
• Density of 160 kg/m³
• Length of 3.6 m
• Sheet form
• Thermal conductivity of 0.69 W/mK
• Thermal shock resistant
• Thickness of 13 mm
• Width of 610 mm
• Length of 3.6 m
• Sheet form
• Thermal conductivity of 0.69 W/mK
• Thermal shock resistant
• Thickness of 13 mm
• Width of 610 mm
