FLIR C3-X Thermal Imaging Camera with WiFi, 300 °C 128 x 96 pixel Detector Resolution RSCAL

RS Stock No.:: 211-0036
Mfr. Part No.:: FLIR C3-X (incl. Wi-Fi)
Brand:: FLIR

FLIR C3-X Thermal Imaging Camera with WiFi, 300 °C 128 x 96 pixel Detector Resolution RSCAL

Subtotal (1 unit)*

£512.50

(exc. VAT)

£615.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

84 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£512.50

*price indicative

Your uptime, our priority

Data centres need power, cooling and confidence. Total confidence that everything will work seamlessly, all the time. When each second of uptime matters, data centre managers need to rely on partners like RS that can help keep critical systems stable, efficient and ready for growth.

Discover Now

RS Stock No.:: 211-0036
Mfr. Part No.:: FLIR C3-X (incl. Wi-Fi)
Brand:: FLIR

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	FLIR
	Product Type	Thermal Imaging Camera with WiFi
	Maximum Temperature Measurement	300°C
	Battery Type	Lithium-ion
	Detector Resolution	128 x 96 pixel
	Display Resolution	128 x 96 pixel
	Thermal Sensitivity	70mK
	Focus Type	Focus-Free
	Power Source	Battery
	Minimum Focus Distance	100mm
	Battery Life	4h
	Standards/Approvals	No
	Diagonal Display Size	3.5in
	Hazardous Area Certification	No
	Auto Capture on Camera	Yes
	Voice Recorder	Yes
	Image Storage	MicroSD
	Image Enhancement	Yes
	Visual Camera	Yes
	Radiometric Video on Camera	Yes
	Battery Level Indicator	Yes
	Model Number	C3-X
	Accuracy	±3 °C
	Calibrated	RSCAL

	Select all
	Brand FLIR
	Product Type Thermal Imaging Camera with WiFi
	Maximum Temperature Measurement 300°C
	Battery Type Lithium-ion
	Detector Resolution 128 x 96 pixel
	Display Resolution 128 x 96 pixel
	Thermal Sensitivity 70mK
	Focus Type Focus-Free
	Power Source Battery
	Minimum Focus Distance 100mm
	Battery Life 4h
	Standards/Approvals No
	Diagonal Display Size 3.5in
	Hazardous Area Certification No
	Auto Capture on Camera Yes
	Voice Recorder Yes
	Image Storage MicroSD
	Image Enhancement Yes
	Visual Camera Yes
	Radiometric Video on Camera Yes
	Battery Level Indicator Yes
	Model Number C3-X
	Accuracy ±3 °C
	Calibrated RSCAL

COO (Country of Origin):: EE

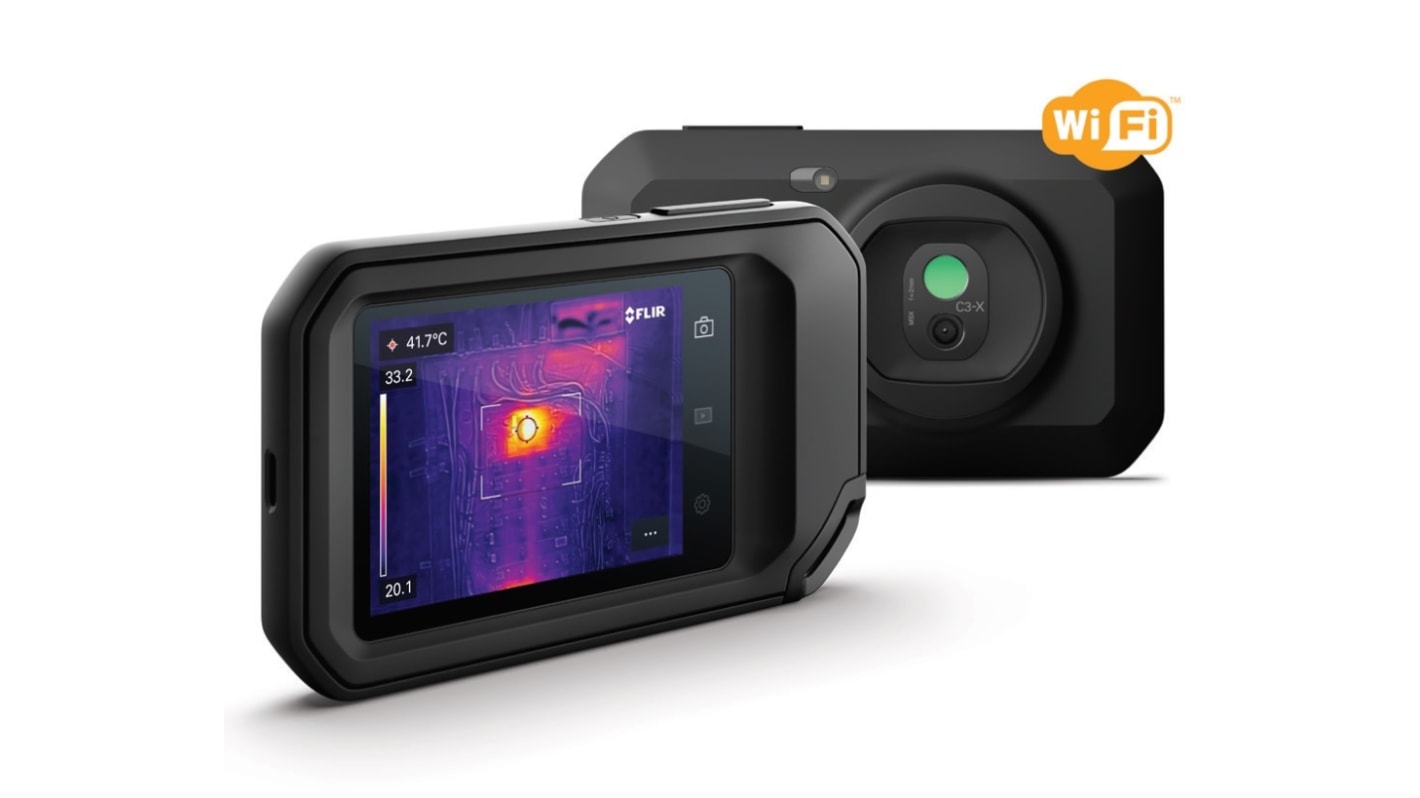

FLIR C3-X Compact Thermal Camera

Introducing the FLIR C3-X Thermal Camera, a ground-breaking device that redefines the possibilities of compact thermal imaging. Engineered with precision and versatility in mind, the C3-X is the perfect companion for professionals seeking a portable yet powerful tool for a wide range of applications.

The FLIR C3-X compact thermal camera is an affordable, professional inspection tool for building, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications.

The C3-X has built-in FLIR Ignite™ cloud connectivity that allows direct data transfer, storage, and backup, so images are always available on all your devices.

FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.

Features and Benefits:

3.5-inch display

Quickly find hidden faults and reduce diagnostic time with the 128 x 96 (12,288 pixels) and 5-megapixel visual camera

Field of view (FOV) 53.6°

Spectral range 8-14μm

Upload images and data quickly, then communicate findings easily with customers

Rugged, reliable, and compact - can withstand a 2 m drop test

IP54 rating - high level of protection against dust and water

LED flashlight helps you see in dark and hard to reach areas

Rechargeable built-in Li ion battery

Battery operating time approx. 4 hours

Applications:

Building

Electrical

Mechanical

Frequently asked questions

Q: What is FLIR MSX Technology?

A; FLIR MSX Technology adds key details from the visible light camera to the entire infrared image that is in real-time, so you capture both visible light features and a thermal picture that helps you identify where the problem heat pattern is.

Why would you use the FLIR C3-X?

Portability and Compact Design - The FLIR C3-X combines powerful thermal imaging capabilities with a compact and lightweight design, providing unmatched portability. Whether you're a field technician, inspector, or contractor, having a compact thermal camera on hand allows you to tackle inspections with ease, even in confined spaces.

High-Resolution Thermal Imaging - you can identify and analyse temperature differentials with exceptional clarity.

Versatility Across Applications- With a broad temperature measurement range up to 300°C and the ability to adapt to diverse environments, the C3-X is versatile across multiple applications including electrical inspections to building diagnostics.

MSX® Image Enhancement Technology - FLIR's MSX® technology overlays thermal data onto visible images, enhancing overall image quality. This innovation simplifies the interpretation of thermal anomalies, making it easier for users to understand and address issues effectively.

Intuitive Operation and Quick Start - The user-friendly interface and intuitive controls of the C3-X ensure that you can start using it immediately without extensive training.

Wireless Connectivity for Enhanced Collaboration - Stay connected and collaborate seamlessly with the C3-X's wireless connectivity options. This feature enables real-time sharing of images and data, fostering collaboration among team members and facilitating quick decision-making.

FLIR Tools Compatibility for Effortless Reporting - Simplify your reporting process with FLIR Tools software compatibility. The C3-X allows you to analyse, edit, and share thermal images effortlessly, streamlining your workflow and enhancing the overall efficiency of your inspections.

Software Options:

2441681 Thermal Studio Pro Perpetual

2441680 Thermal Studio Pro 1 year

2441684 Thermal Studio Standard Perpetual

2441682 Thermal Studio Standard 1 year
