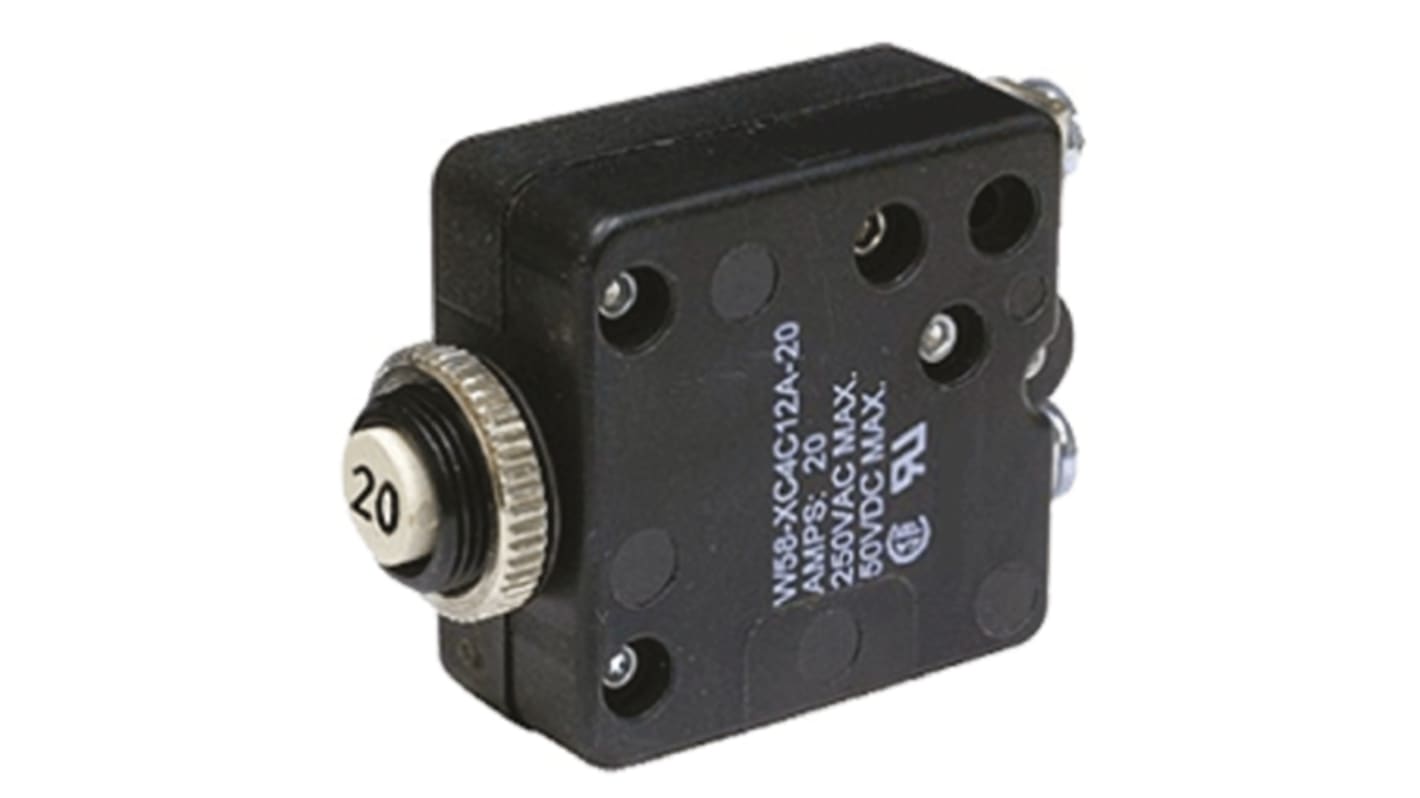

TE Connectivity W58 Thermal Circuit Breaker - 1-Pole, Direct, 20 A Current Rating, 1000 A, 250 V ac, 50 V dc
- RS Stock No.:
- 782-7981
- Distrelec Article No.:
- 303-50-754
- Mfr. Part No.:
- W58-XC4C12A-20
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 782-7981
- Distrelec Article No.:
- 303-50-754
- Mfr. Part No.:
- W58-XC4C12A-20
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 20 A | |
| Product Type | Thermal Circuit Breaker | |
| Series | W58 | |
| Number of Poles | 1 | |
| Width | 16.76 mm | |
| Mount Type | Direct | |
| Mount Hole Size | 18.8 mm | |
| Terminal Type | Screw | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | Thermal | |
| Standards/Approvals | RoHS, CE | |
| Rated AC Voltage | 250 V ac | |
| Breaking Capacity | 1000A | |
| Rated DC Voltage | 50 V dc | |
| Break Time | Medium | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 20 A | ||
Product Type Thermal Circuit Breaker | ||
Series W58 | ||
Number of Poles 1 | ||
Width 16.76 mm | ||
Mount Type Direct | ||
Mount Hole Size 18.8 mm | ||
Terminal Type Screw | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics Thermal | ||
Standards/Approvals RoHS, CE | ||
Rated AC Voltage 250 V ac | ||
Breaking Capacity 1000A | ||
Rated DC Voltage 50 V dc | ||
Break Time Medium | ||
TE Connectivity - W58 Series
