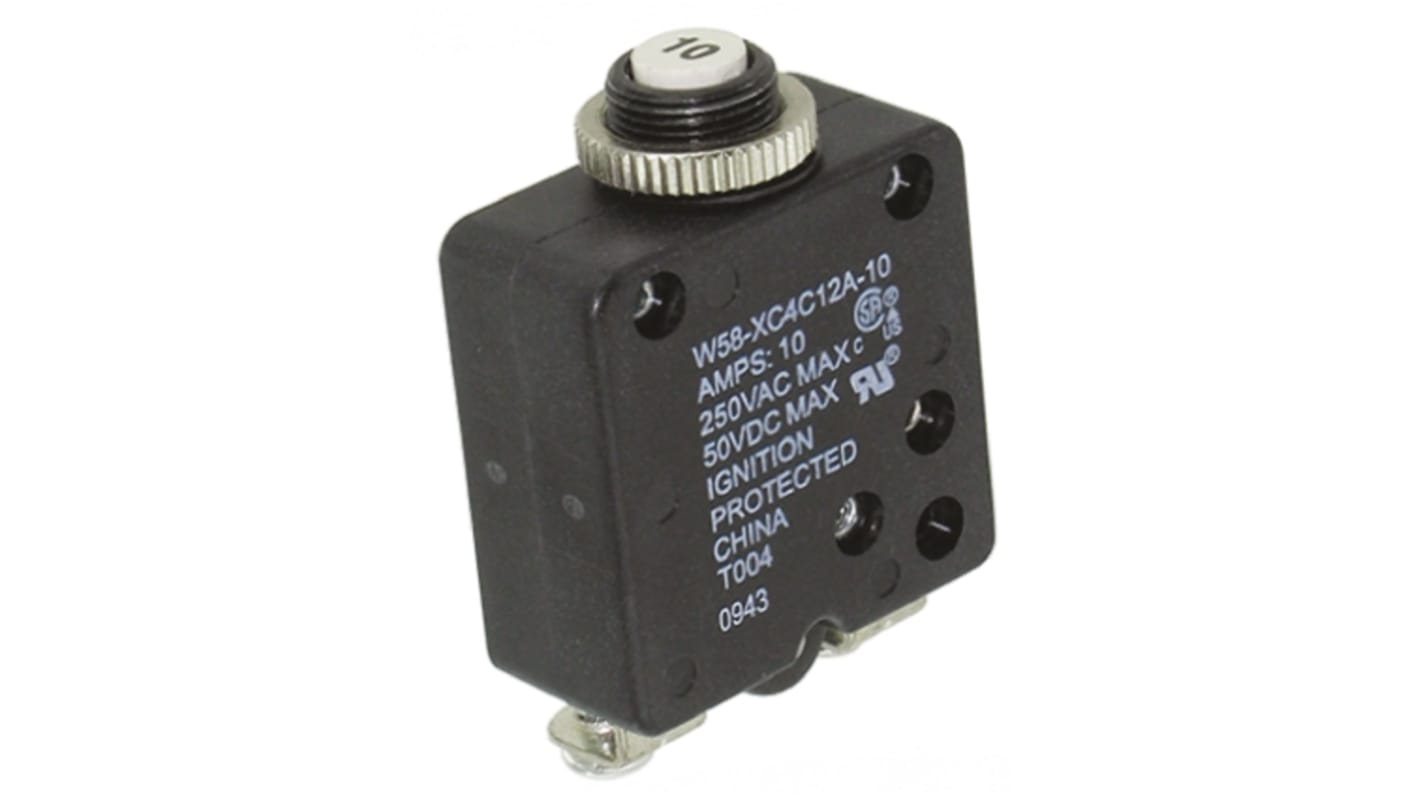

TE Connectivity W58 Thermal Circuit Breaker - 1-Pole, Direct, 10A Current Rating, 1000 A, 250V ac, 50 V dc
- RS Stock No.:
- 782-7950
- Distrelec Article No.:
- 303-06-012
- Mfr. Part No.:
- W58-XC4C12A-10
- Brand:
- TE Connectivity
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 782-7950
- Distrelec Article No.:
- 303-06-012
- Mfr. Part No.:
- W58-XC4C12A-10
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 10A | |
| Product Type | Thermal Circuit Breaker | |
| Series | W58 | |
| Number of Poles | 1 | |
| Width | 16.76mm | |
| Mount Type | Direct | |
| Terminal Type | Screw | |
| Mount Hole Size | 18.8 mm | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Characteristics | May trip between 101% and 145%, Must trip at 145% at 25°C | |
| Height | 46.11mm | |
| Depth | 34.93mm | |
| Standards/Approvals | RoHS, CE | |
| Rated AC Voltage | 250V ac | |
| Break Time | Medium | |
| Breaking Capacity | 1000A | |
| Rated DC Voltage | 50V dc | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 10A | ||
Product Type Thermal Circuit Breaker | ||
Series W58 | ||
Number of Poles 1 | ||
Width 16.76mm | ||
Mount Type Direct | ||
Terminal Type Screw | ||
Mount Hole Size 18.8 mm | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
Tripping Characteristics May trip between 101% and 145%, Must trip at 145% at 25°C | ||
Height 46.11mm | ||
Depth 34.93mm | ||
Standards/Approvals RoHS, CE | ||
Rated AC Voltage 250V ac | ||
Break Time Medium | ||
Breaking Capacity 1000A | ||
Rated DC Voltage 50V dc | ||
- COO (Country of Origin):
- CN
TE Connectivity - W58 Series
