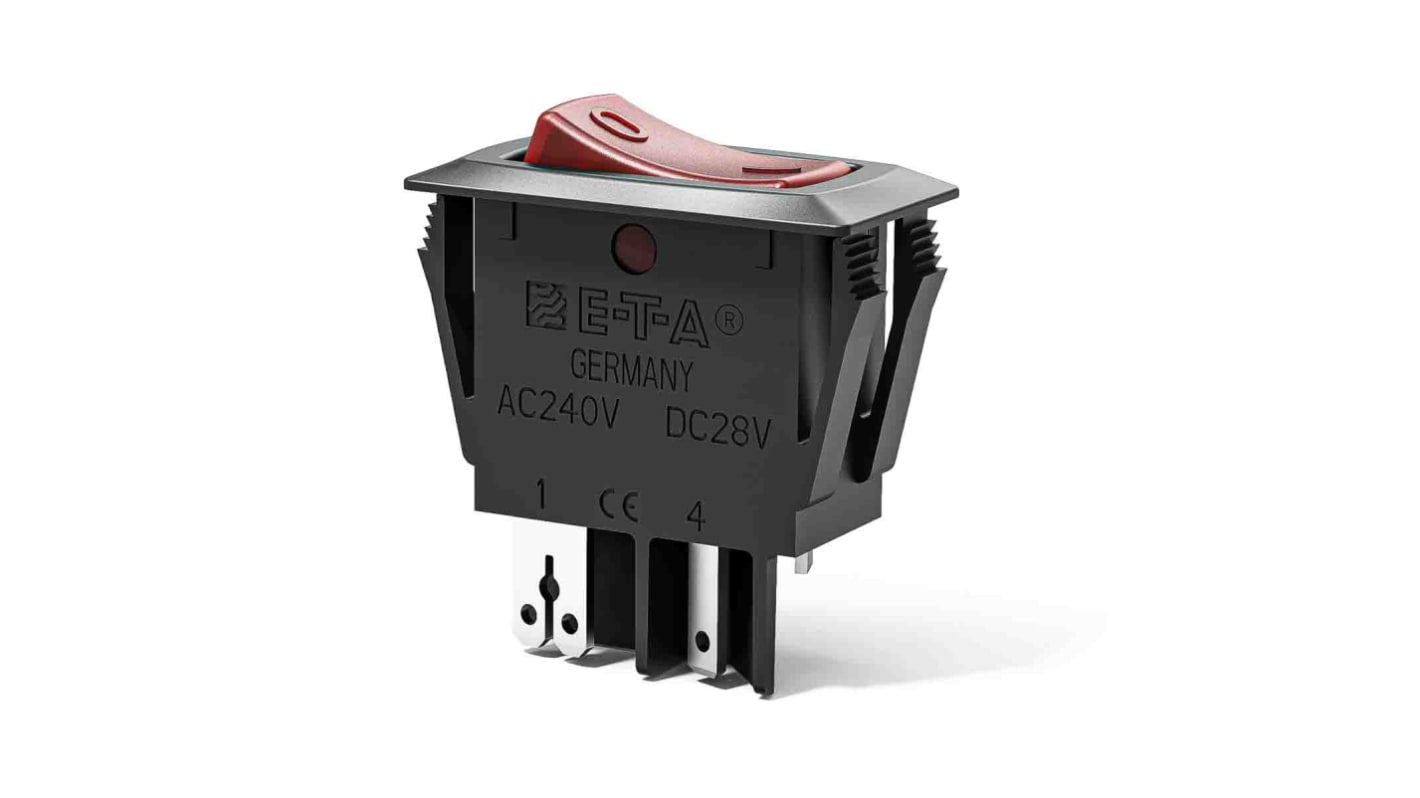

ETA 1410-F Thermal Circuit Breaker - 1-Pole, Base, 8 A Current Rating, 25 A, 240 V ac, 28 V dc
- RS Stock No.:
- 409-851
- Mfr. Part No.:
- 1410-F110-P1F1-W14QB4-8A
- Brand:
- ETA
Bulk discount available
Subtotal (1 unit)*
£16.07
(exc. VAT)
£19.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £16.07 |
| 15 - 49 | £15.59 |
| 50 - 99 | £15.09 |
| 100 - 249 | £14.14 |
| 250 + | £13.66 |
*price indicative
- RS Stock No.:
- 409-851
- Mfr. Part No.:
- 1410-F110-P1F1-W14QB4-8A
- Brand:
- ETA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ETA | |
| Current Rating | 8 A | |
| Product Type | Thermal Circuit Breaker | |
| Number of Poles | 1 | |
| Series | 1410-F | |
| Width | 17 mm | |
| Mount Type | Base | |
| Terminal Type | Screw | |
| Mount Hole Size | 28 x 12.7 mm | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Rocker | |
| Tripping Characteristics | Type R | |
| Height | 15mm | |
| Standards/Approvals | RoHS, CE | |
| Rated AC Voltage | 240 V ac | |
| Rated DC Voltage | 28 V dc | |
| Breaking Capacity | 25A | |
| Break Time | Medium | |
| Select all | ||
|---|---|---|
Brand ETA | ||
Current Rating 8 A | ||
Product Type Thermal Circuit Breaker | ||
Number of Poles 1 | ||
Series 1410-F | ||
Width 17 mm | ||
Mount Type Base | ||
Terminal Type Screw | ||
Mount Hole Size 28 x 12.7 mm | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Rocker | ||
Tripping Characteristics Type R | ||
Height 15mm | ||
Standards/Approvals RoHS, CE | ||
Rated AC Voltage 240 V ac | ||
Rated DC Voltage 28 V dc | ||
Breaking Capacity 25A | ||
Break Time Medium | ||
1410-F Series
Snap-in panel mounting
Blade terminals DIN 46244-C 2.8-0.8
Miniaturised design
High speed tripping characteristics (typically less than one second at twice nominal current rating)
Typical life 300 operations at twice nominal current rating
Mainly for domestic and industrial appliances, instrumentation, hand tools, electronic components and equipment
Front panel switch and fuse replacement
IEC Classification S/TO
Approvals
UL; CSA and SEV
