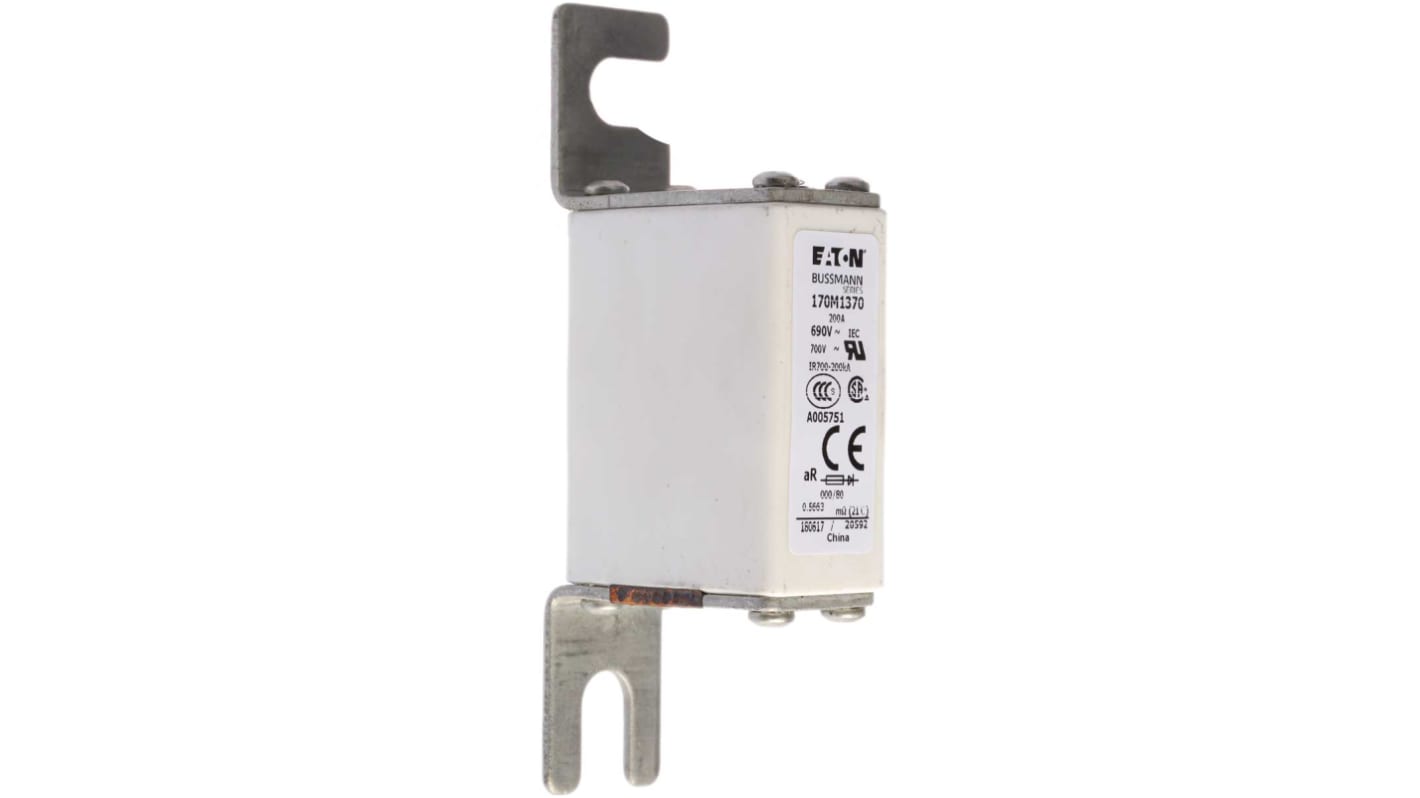

Eaton 200A Bolted Tag Fuse, NH000, 690V, 78mm
- RS Stock No.:
- 852-7572
- Distrelec Article No.:
- 304-02-373
- Mfr. Part No.:
- 170M1370
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£98.56
(exc. VAT)
£118.27
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £98.56 |
| 10 - 24 | £87.62 |
| 25 - 49 | £82.55 |
| 50 - 99 | £81.04 |
| 100 + | £76.85 |
*price indicative
- RS Stock No.:
- 852-7572
- Distrelec Article No.:
- 304-02-373
- Mfr. Part No.:
- 170M1370
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 200A | |
| Fuse Size | NH000 | |
| Voltage Rating | 690V | |
| Fuse Standard | CE, CSA, DIN 43653, IEC 60269, UL | |
| Fixing Centres | 78mm | |
| Application Category | aR | |
| Tag Width | 20mm | |
| Fuse Speed | F | |
| Overall Length | 100mm | |
| Tag Type | Slotted | |
| Body Length | 54mm | |
| Tag Orientation | Offset | |
| Body Width | 21mm | |
| Body Height | 40mm | |
| Fuse Dimensions | 54 x 21 x 40mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 200A | ||
Fuse Size NH000 | ||
Voltage Rating 690V | ||
Fuse Standard CE, CSA, DIN 43653, IEC 60269, UL | ||
Fixing Centres 78mm | ||
Application Category aR | ||
Tag Width 20mm | ||
Fuse Speed F | ||
Overall Length 100mm | ||
Tag Type Slotted | ||
Body Length 54mm | ||
Tag Orientation Offset | ||
Body Width 21mm | ||
Body Height 40mm | ||
Fuse Dimensions 54 x 21 x 40mm | ||
Cooper Bussmann 170M Series
The 170M series from Cooper Bussmann offers a professional range of bolt down fuses in a mounting style as well as a termination style.
Mounting Style - Stud
Termination Style - Bolt Down
Termination Style - Bolt Down
Eaton Bolted Tag Fuse, 000, 200A - 170M Series - 170M1370
Need a compact and high-speed fuse for your DC drive or power converter? Use this Eaton square-shaped, bolted tag fuse. It's 54mm long, 21mm wide and 40mm high, so it takes up minimal space in your setup and reduces wattage loss.
As it's an F speed fuse, this is a fast-acting option with a thin element that blows quickly to protect components from short circuits. Use it as a reliable safety solution for installation on busbars and switchgear.
As it's an F speed fuse, this is a fast-acting option with a thin element that blows quickly to protect components from short circuits. Use it as a reliable safety solution for installation on busbars and switchgear.
Features & Benefits
• Class aR fuse to prevent damage to semiconductors in devices and circuitry
• Lead-free components for increased workplace safety and sustainability
• High 200A current rating for use on industrial and commercial distribution boards
• Lead-free components for increased workplace safety and sustainability
• High 200A current rating for use on industrial and commercial distribution boards
What's an offset bolted tag fuse?
An offset bolted tag fuse has metal fixings that are off-centre from the body of the fuse. This type of tag is handy for fitting fuses into awkward spaces on industrial circuits. Stud mounting via these tags means this fuse is securely fixed in place and resistant to vibrations. It can be used in a range of industrial applications, including electrical equipment and wiring systems.
Note
Eaton formerly known as Bussmann
Cooper Bussmann
