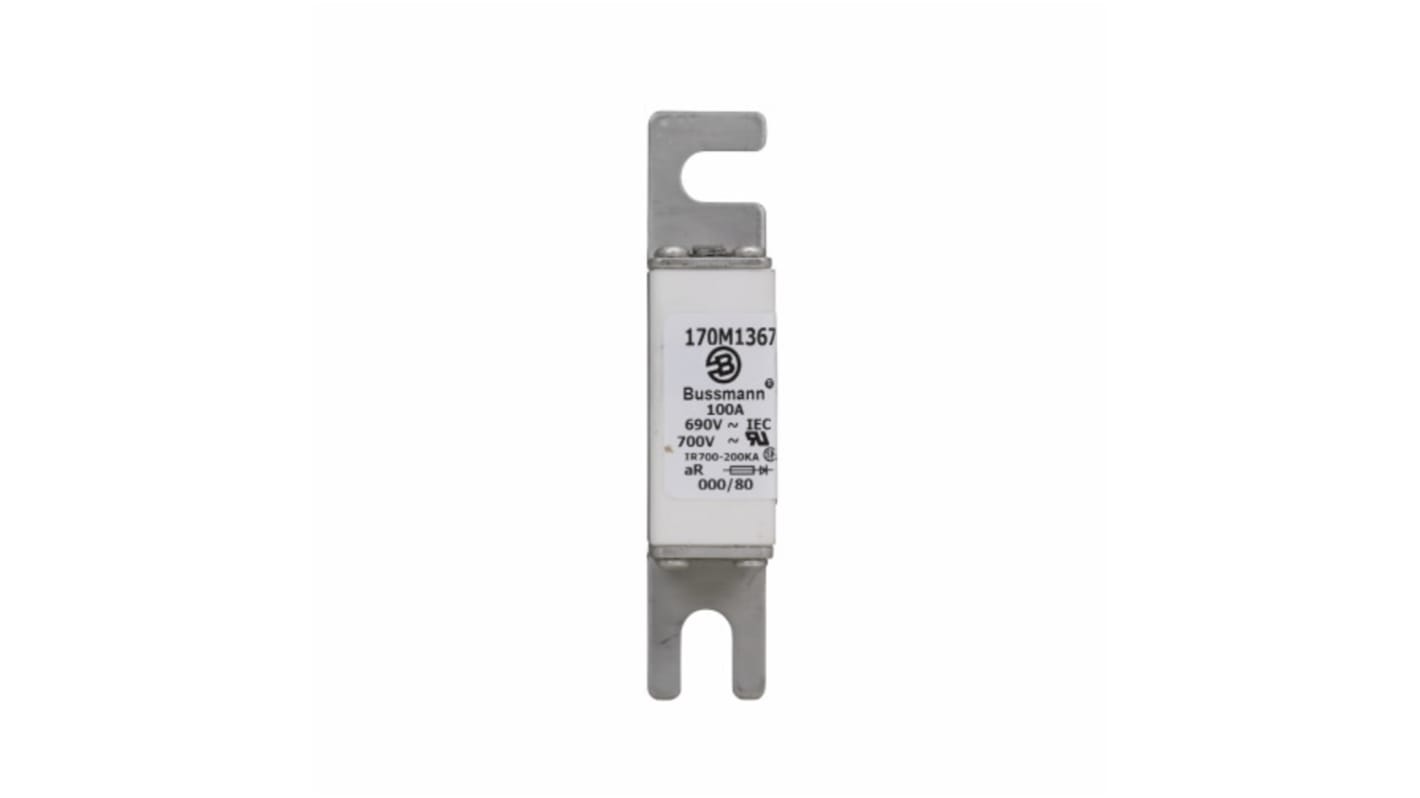

Eaton 100A German Standard Fuse, NH000, 690V ac, 78mm
- RS Stock No.:
- 489-4613
- Mfr. Part No.:
- 170M1367
- Brand:
- Eaton
Subtotal (1 unit)*
£30.78
(exc. VAT)
£36.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 49 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £30.78 |
*price indicative
- RS Stock No.:
- 489-4613
- Mfr. Part No.:
- 170M1367
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 100A | |
Fuse Size | NH000 | |
Voltage Rating | 690V ac | |
Fuse Standard | DIN 43 653 | |
Fixing Centres | 78mm | |
Application Category | aR | |
Tag Width | 20mm | |
Overall Length | 100mm | |
Tag Type | Slotted | |
Tag Orientation | Offset | |
Body Width | 21mm | |
Body Height | 40mm | |
Series | Eaton Bussman | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 100A | ||
Fuse Size NH000 | ||
Voltage Rating 690V ac | ||
Fuse Standard DIN 43 653 | ||
Fixing Centres 78mm | ||
Application Category aR | ||
Tag Width 20mm | ||
Overall Length 100mm | ||
Tag Type Slotted | ||
Tag Orientation Offset | ||
Body Width 21mm | ||
Body Height 40mm | ||
Series Eaton Bussman | ||
Eaton German Standard Fuse, aR Application, Offset Tag Type - 170M1367
Need to protect sensitive semiconductor components, such as diodes, thyristors and SCRs, from damage resulting from short circuits? Choose this German Standard fuse from Eaton. It's a fast-acting aR-type fuse that blows in milliseconds in the event of a fault. The offset slotted tags are compatible with many standard electrical distribution panels and let you make a secure connection, even in vibrating equipment. Compact dimensions of 100 (L) x 40 (H) x 21mm (W) minimise heat loss to keep your system running cool.
Features & Benefits
• Status indicator lets you check easily whether the fuse has blown
• Square body allows for easy handling and quick identification
• Square body allows for easy handling and quick identification
Can I use this fuse to replace a gR type fuse?
This aR-type fuse provides protection from short circuits only. It doesn't offer any protection from overcurrent, so it shouldn't be used as a replacement for a gR-type fuse.
What's a thyristor?
A thyristor is a four-layer semiconductor device that's used as a high-speed switch. Thyristors can replace mechanical relays as they have no moving parts and are therefore more reliable.
Note
Eaton formerly known as Bussmann
