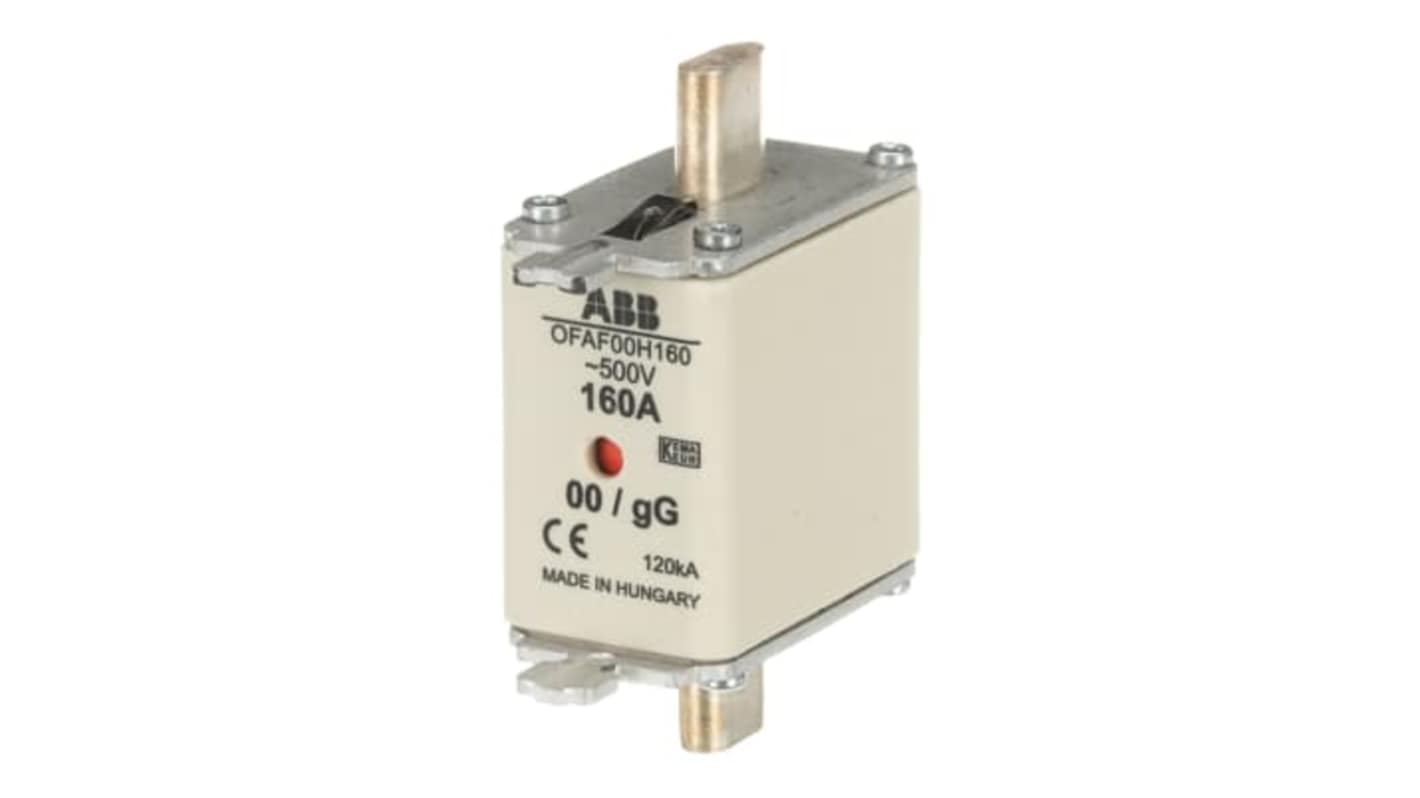

ABB 160A Centred Tag Fuse, NH00, 500V
- RS Stock No.:
- 779-9980
- Mfr. Part No.:
- OFAF00H160 1SCA022627R1710
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£6.53
(exc. VAT)
£7.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 46 unit(s) ready to ship
- Plus 35 unit(s) ready to ship from another location
- Plus 96 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £6.53 |
| 50 - 99 | £6.18 |
| 100 - 199 | £5.87 |
| 200 - 499 | £5.52 |
| 500 + | £4.89 |
*price indicative
- RS Stock No.:
- 779-9980
- Mfr. Part No.:
- OFAF00H160 1SCA022627R1710
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Current Rating | 160A | |
| Fuse Size | NH00 | |
| Voltage Rating | 500V | |
| Fuse Standard | DIN IEC 60269-1-2 | |
| Application Category | gG | |
| Tag Width | 15mm | |
| High Rupture Capacity | Yes | |
| Overall Length | 79mm | |
| Tag Type | Blade | |
| Body Length | 50mm | |
| Tag Orientation | Centred | |
| Body Width | 59.5mm | |
| Body Height | 29.5mm | |
| Series | OFAF000H | |
| Fuse Dimensions | 50 x 59.5 x 29.5mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Current Rating 160A | ||
Fuse Size NH00 | ||
Voltage Rating 500V | ||
Fuse Standard DIN IEC 60269-1-2 | ||
Application Category gG | ||
Tag Width 15mm | ||
High Rupture Capacity Yes | ||
Overall Length 79mm | ||
Tag Type Blade | ||
Body Length 50mm | ||
Tag Orientation Centred | ||
Body Width 59.5mm | ||
Body Height 29.5mm | ||
Series OFAF000H | ||
Fuse Dimensions 50 x 59.5 x 29.5mm | ||
RoHS Status: Not Applicable
ABB OFAF000H Series Centred Tag Fuse, 79mm Overall Length, Blade Tag - OFAF00H160 1SCA022627R1710
This centred tag fuse ensures effective circuit protection in various electrical systems. With a rating of 160A and a voltage of 500V, it adheres to industry standards, promoting safety and efficiency. Designed for gG applications, it offers a high rupture capacity that helps mitigate risks associated with fuse failures. Its sturdy construction guarantees performance across a range of electrical and automation tasks.
Features & Benefits
• Complies with DIN IEC 60269-1-2 standards for reliability
• Compatible dimensions for NH00 fuse systems
• Centred tag design simplifies installation and maintenance
• Blade tag type allows easy integration into existing configurations
• Compatible dimensions for NH00 fuse systems
• Centred tag design simplifies installation and maintenance
• Blade tag type allows easy integration into existing configurations
Applications
• Protects machinery from overcurrent faults
• Suitable for use in power distribution systems
• Employed in electrical panels requiring fuse protection
• Suitable for use in power distribution systems
• Employed in electrical panels requiring fuse protection
What types of applications benefit from its specifications?
It is suitable for various industrial and automation applications that require essential circuit protection.
How is the installation process for the product?
The installation is straightforward due to its centred tag design, ensuring a secure fit within NH00 fuse assemblies.
What maintenance is required to ensure optimal operation?
Regular inspections are recommended to check for integrity and signs of wear, ensuring that the fuse continues to function effectively within its rated specifications.
