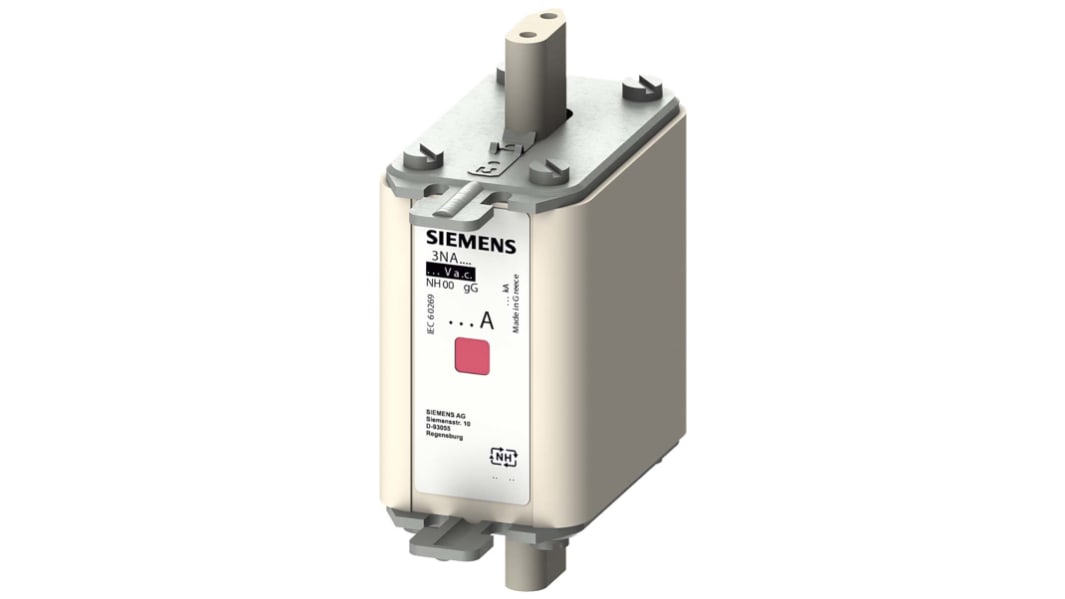

Siemens 100A Centred Tag Fuse, NH00, 500V ac
- RS Stock No.:
- 203-2012
- Mfr. Part No.:
- 3NA7830-7
- Brand:
- Siemens
Subtotal (1 pack of 3 units)*
£18.279
(exc. VAT)
£21.936
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 33 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 + | £6.093 | £18.28 |
*price indicative
- RS Stock No.:
- 203-2012
- Mfr. Part No.:
- 3NA7830-7
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 100A | |
| Fuse Size | NH00 | |
| Voltage Rating | 500V ac | |
| Fuse Standard | IEC 60269 | |
| Application Category | gG | |
| Fuse Speed | F | |
| Overall Length | 77.8mm | |
| Tag Type | Blade | |
| Tag Orientation | Centred | |
| Body Length | 49.7mm | |
| Body Width | 30mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 100A | ||
Fuse Size NH00 | ||
Voltage Rating 500V ac | ||
Fuse Standard IEC 60269 | ||
Application Category gG | ||
Fuse Speed F | ||
Overall Length 77.8mm | ||
Tag Type Blade | ||
Tag Orientation Centred | ||
Body Length 49.7mm | ||
Body Width 30mm | ||
- COO (Country of Origin):
- GR
The Siemens LV HRC fuse link with fuse size NH00, non-corroding, silver-plated switching contact. It has preferably vertical mounting position. It has live grip lugs.
Protection class IP IP20 with connected conductors
Design 3NA7
Design 3NA7
