Siemens 160A Centred Tag Fuse, NH00, 690V ac
- RS Stock No.:
- 396-354
- Mfr. Part No.:
- 3NE8024-1
- Brand:
- Siemens

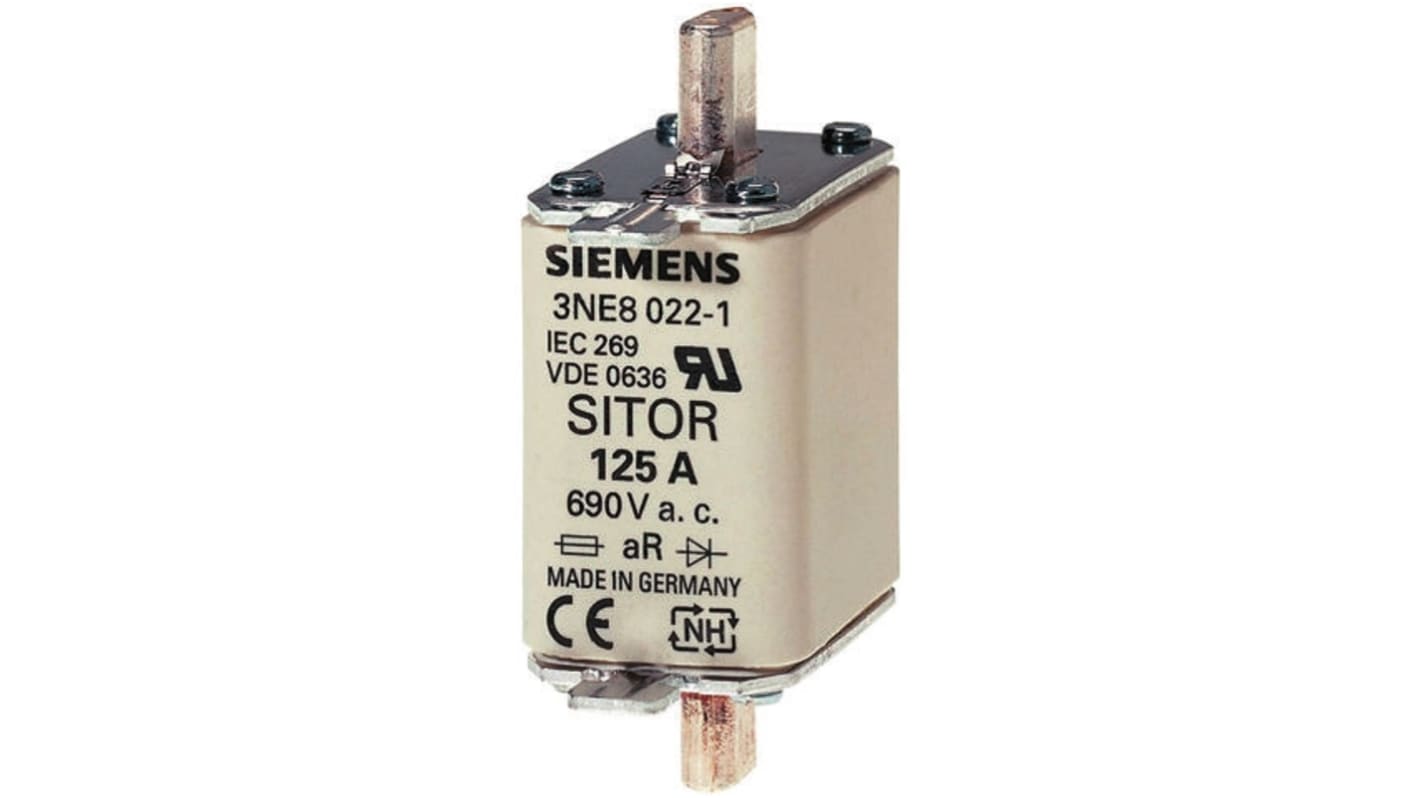

Image representative of range
Bulk discount available
Subtotal (1 pack of 3 units)*
£216.801
(exc. VAT)
£260.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 3 - 12 | £72.267 | £216.80 |
| 15 - 72 | £68.363 | £205.09 |
| 75 - 147 | £65.977 | £197.93 |
| 150 - 297 | £63.667 | £191.00 |
| 300 + | £61.567 | £184.70 |
*price indicative
- RS Stock No.:
- 396-354
- Mfr. Part No.:
- 3NE8024-1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 160A | |
| Fuse Size | NH00 | |
| Voltage Rating | 690V ac | |
| Fuse Standard | DIN 43620, IEC 60269-2-1, VDE 0636 | |
| Application Category | aR | |
| Tag Width | 6mm | |
| High Rupture Capacity | Yes | |
| Overall Length | 79mm | |
| Tag Type | Blade | |
| Body Length | 53mm | |
| Tag Orientation | Centred | |
| Body Width | 30mm | |
| Body Height | 48mm | |
| Series | 3NE | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 160A | ||
Fuse Size NH00 | ||
Voltage Rating 690V ac | ||
Fuse Standard DIN 43620, IEC 60269-2-1, VDE 0636 | ||
Application Category aR | ||
Tag Width 6mm | ||
High Rupture Capacity Yes | ||
Overall Length 79mm | ||
Tag Type Blade | ||
Body Length 53mm | ||
Tag Orientation Centred | ||
Body Width 30mm | ||
Body Height 48mm | ||
Series 3NE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GR
SITOR Fuses, 3NE8 Series, Size 00, Type aR
Semiconductor protection fuses
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection
Standards
IEC 60269-2
Standards
IEC 60269-2
