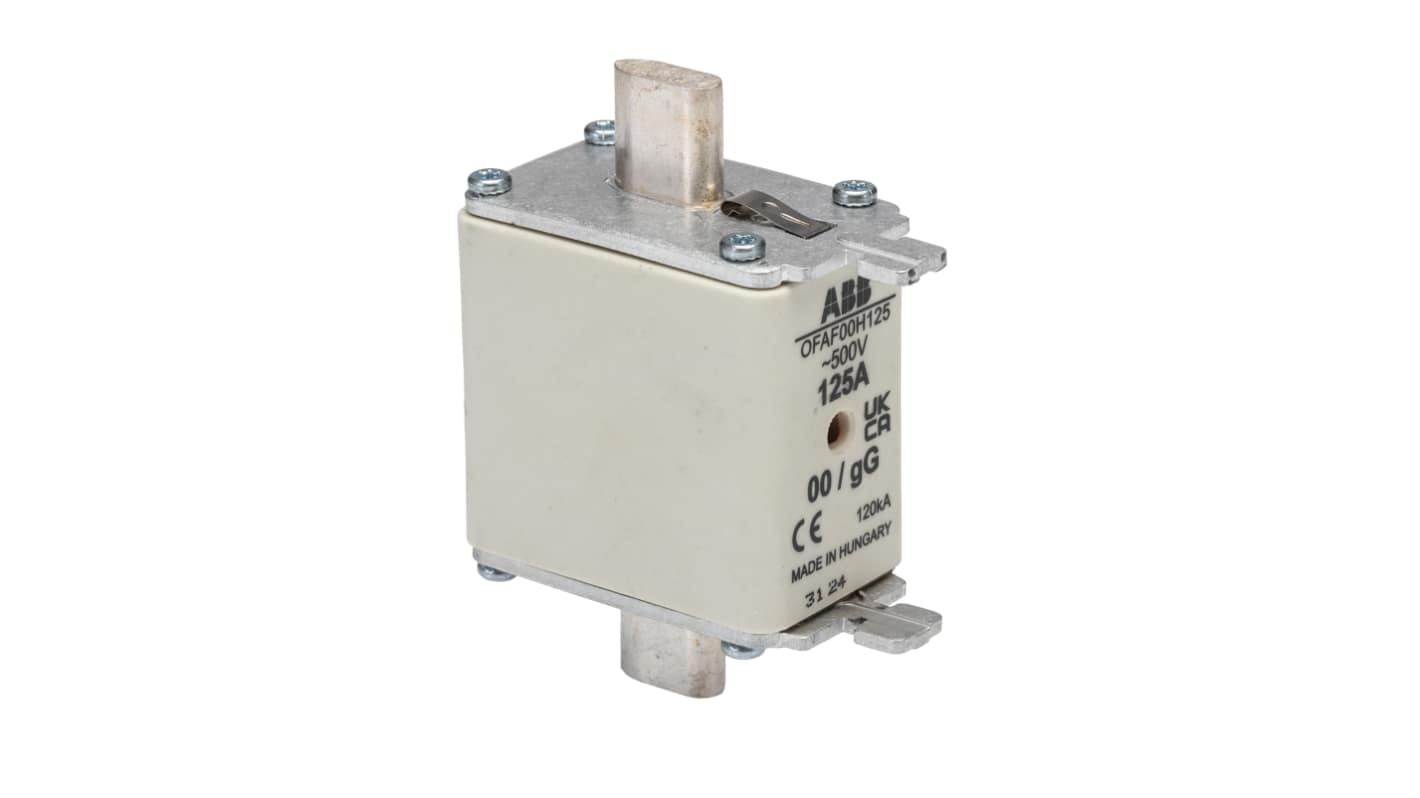

ABB 125A Centred Tag Fuse, NH00, 500V
- RS Stock No.:
- 779-9987
- Mfr. Part No.:
- OFAF00H125 1SCA022627R1630
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£6.53
(exc. VAT)
£7.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 36 unit(s) ready to ship from another location
- Plus 48 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £6.53 |
| 50 - 99 | £6.17 |
| 100 - 199 | £5.86 |
| 200 - 499 | £5.52 |
| 500 + | £4.89 |
*price indicative
- RS Stock No.:
- 779-9987
- Mfr. Part No.:
- OFAF00H125 1SCA022627R1630
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Current Rating | 125A | |
| Fuse Size | NH00 | |
| Voltage Rating | 500V | |
| Fuse Standard | DIN IEC 60269-1-2 | |
| Application Category | gG | |
| Tag Width | 15mm | |
| High Rupture Capacity | Yes | |
| Overall Length | 79mm | |
| Tag Type | Blade | |
| Body Length | 50mm | |
| Tag Orientation | Centred | |
| Body Width | 59.5mm | |
| Body Height | 29.5mm | |
| Series | OFAF000H | |
| Fuse Dimensions | 50 x 59.5 x 29.5mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Current Rating 125A | ||
Fuse Size NH00 | ||
Voltage Rating 500V | ||
Fuse Standard DIN IEC 60269-1-2 | ||
Application Category gG | ||
Tag Width 15mm | ||
High Rupture Capacity Yes | ||
Overall Length 79mm | ||
Tag Type Blade | ||
Body Length 50mm | ||
Tag Orientation Centred | ||
Body Width 59.5mm | ||
Body Height 29.5mm | ||
Series OFAF000H | ||
Fuse Dimensions 50 x 59.5 x 29.5mm | ||
RoHS Status: Not Applicable
ABB OFAF000H Series Centred Tag Fuse, 79mm Overall Length, Blade Tag - OFAF00H125 1SCA022627R1630
This centred tag fuse is designed to provide effective protection and reliability in electrical systems. With a capacity of 125A and a voltage rating of up to 500V, it is suitable for various industrial applications. Its compliance with the DIN IEC 60269 fuse standard ensures adherence to safety and performance regulations, making it a vital component in electrical installations.
Features & Benefits
• High rupture capacity allows for safe operation under fault conditions
• Suitable for gG application category, enhancing versatility
• Centred tag design facilitates straightforward installation and integration
• Compact dimensions enable efficient use in various environments
• Performance at 500V ensures reliability in industrial settings
• Suitable for gG application category, enhancing versatility
• Centred tag design facilitates straightforward installation and integration
• Compact dimensions enable efficient use in various environments
• Performance at 500V ensures reliability in industrial settings
Applications
• Compatible with various switchgear for enhanced safety
• Employed in control panels to maintain system integrity
• Employed in control panels to maintain system integrity
How does the blade tag design aid in installation?
The blade tag design allows for a secure connection and simple integration into existing systems, ensuring consistent performance throughout its use.
What operational environments is this fuse suitable for?
It is suitable for industrial environments where high voltage and current ratings are necessary, providing robust protection in automation and electrical systems.
How can I ensure this fuse remains in optimal working condition?
Regular inspections should be conducted to check for signs of wear or damage, and it is advisable to replace the fuse immediately if it has operated under fault conditions.
