- RS Stock No.:
- 703-8780
- Mfr. Part No.:
- 40NHG000B-690
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Fuse Type | NH | |
| Current Rating | 40A | |
| Product Type | Centred Tag Fuse | |
| Fuse Size | NH000 | |
| Voltage | 690V ac | |
| Standards/Approvals | DIN 43620, IEC 60269-2 | |
| Tag Width | 6mm | |
| High Rupture Capacity | Yes | |
| Fuse Characteristics | Dual Indication | |
| Length | 54mm | |
| Overall Length | 78.5mm | |
| Height | 41mm | |
| Width | 21mm | |
| Series | NH | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Fuse Type NH | ||
Current Rating 40A | ||
Product Type Centred Tag Fuse | ||
Fuse Size NH000 | ||
Voltage 690V ac | ||
Standards/Approvals DIN 43620, IEC 60269-2 | ||
Tag Width 6mm | ||
High Rupture Capacity Yes | ||
Fuse Characteristics Dual Indication | ||
Length 54mm | ||
Overall Length 78.5mm | ||
Height 41mm | ||
Width 21mm | ||
Series NH | ||

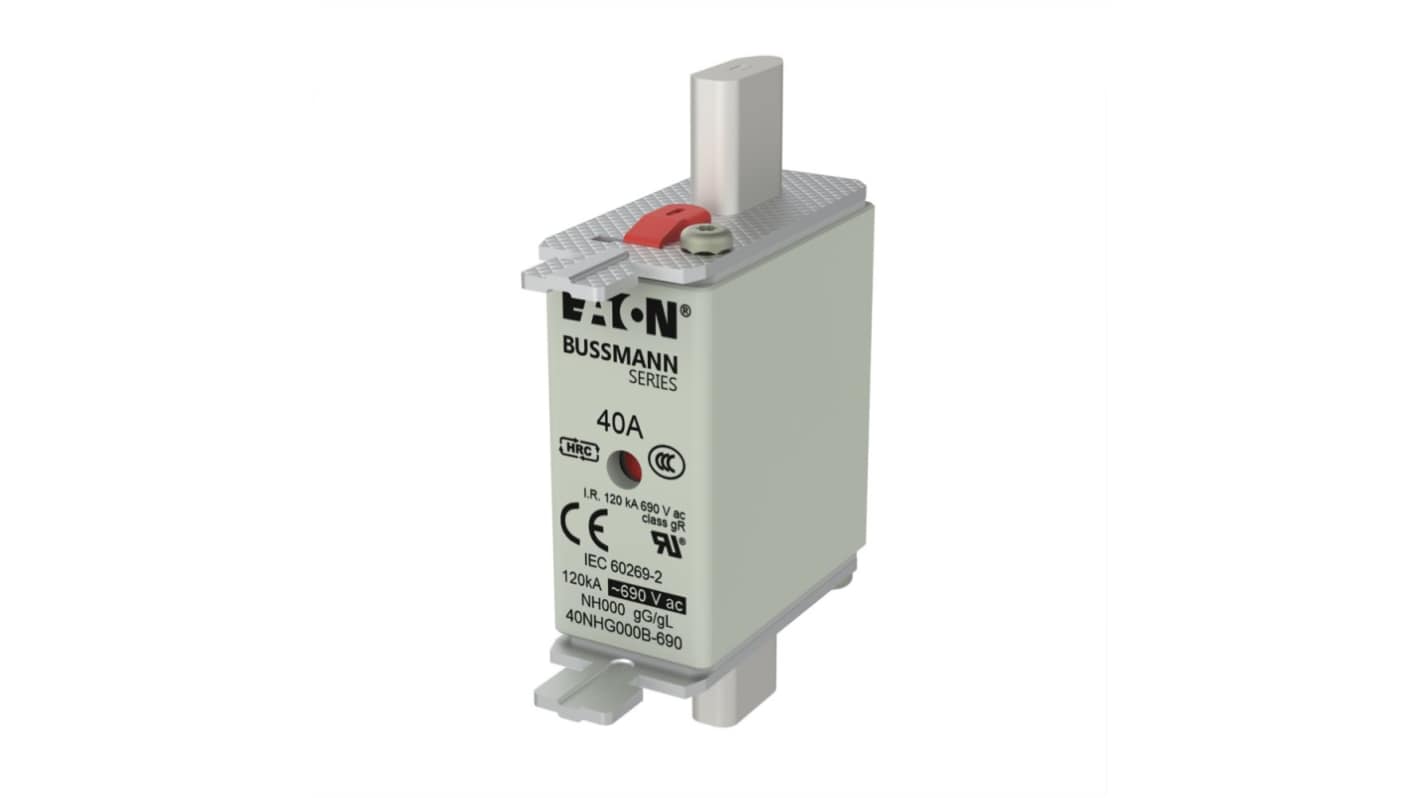

Eaton NH Fuse, 40A Current Rating, 690V AC Voltage - 40NHG000B-690
This low voltage NH fuse is designed for operational safety and efficiency in electrical systems. This Fuse features a current rating of 40A and operates efficiently at a voltage of 690V AC. With dimensions of 79mm in length, 21mm in width, and 51mm in height, this fuse is well-suited for various industrial applications.
Features & Benefits
• High rupture capacity ensures protection against overloads
• Blade end connection simplifies installation and maintenance
• Class gG/gL application category allows for versatile use
• Ceramic body enhances durability and thermal resistance
• Combination fuse status indicator provides clear operational feedback
Applications
• Used with microswitches and vertical fuse rail systems
• Suitable for installation in fuse switch-disconnectors
• Ideal for incorporation into machinery requiring robust electrical protection
What type of environment is suitable for this fuse?
This fuse is ideal for industrial environments where robust electrical protection is required, especially in systems adhering to IEC 60269-2 standards.
How does the blade end connection improve functionality?
The blade end connection provides reliable mechanical stability and ease of installation, reducing downtime during replacement or maintenance tasks.
What is the importance of the high rupture capacity?
The high rupture capacity is crucial for ensuring maximum protection against short circuits and overload conditions, preventing damage to connected equipment.
Note
Eaton formerly known as Bussmann
