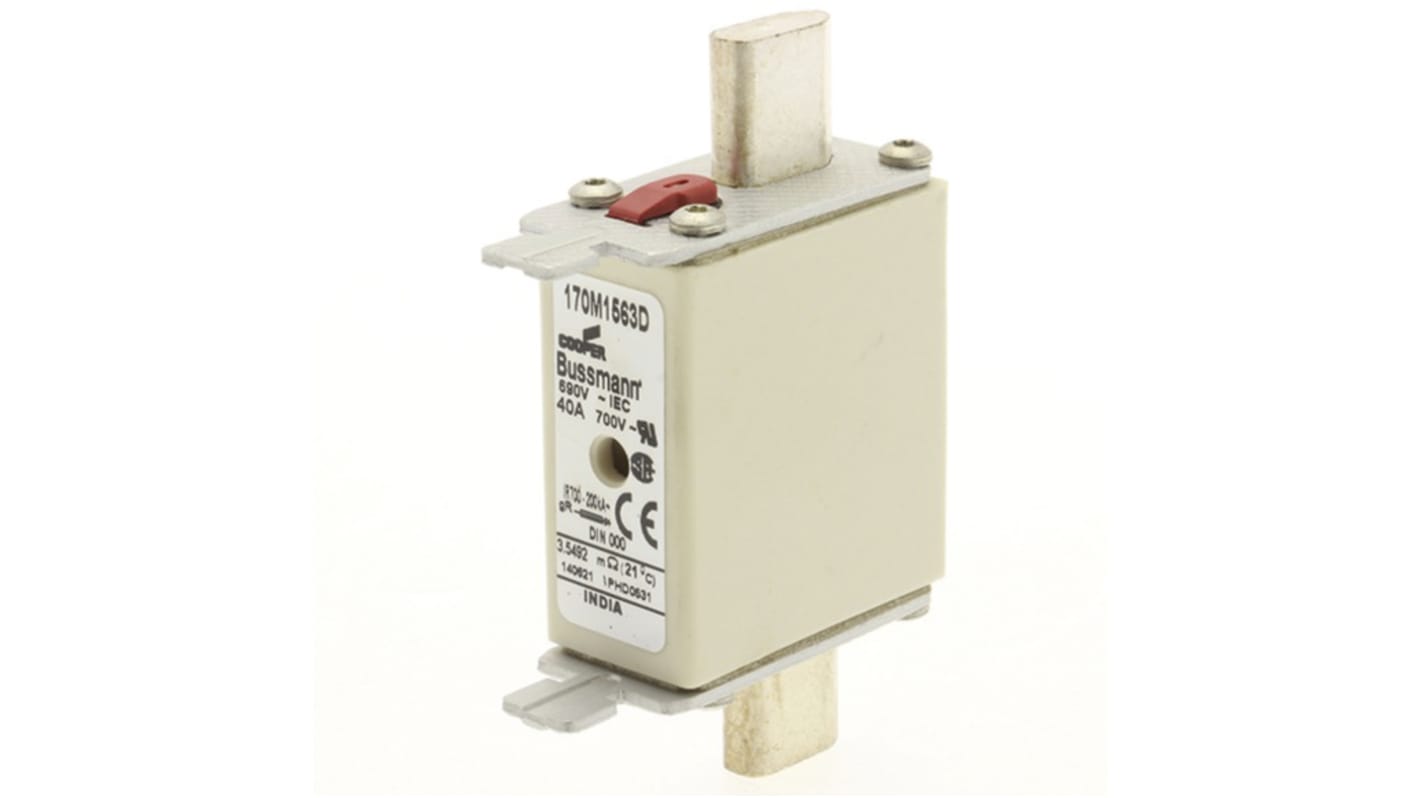

Eaton 40A Centred Tag Fuse, NH000, 690V ac
- RS Stock No.:
- 182-1398
- Mfr. Part No.:
- 170M1563D
- Brand:
- Eaton
Subtotal (1 box of 10 units)*
£569.41
(exc. VAT)
£683.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 10 + | £56.941 | £569.41 |
*price indicative
- RS Stock No.:
- 182-1398
- Mfr. Part No.:
- 170M1563D
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 40A | |
| Fuse Size | NH000 | |
| Voltage Rating | 690V ac | |
| Fuse Standard | CE, CSA, IEC 60269, UL | |
| Application Category | gR | |
| Tag Width | 15mm | |
| Fuse Speed | T | |
| Overall Length | 78.5mm | |
| Tag Type | Blade | |
| Body Length | 52mm | |
| Body Width | 20.5mm | |
| Body Height | 49.7mm | |
| Fuse Dimensions | 52 x 20.5 x 49.7mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 40A | ||
Fuse Size NH000 | ||
Voltage Rating 690V ac | ||
Fuse Standard CE, CSA, IEC 60269, UL | ||
Application Category gR | ||
Tag Width 15mm | ||
Fuse Speed T | ||
Overall Length 78.5mm | ||
Tag Type Blade | ||
Body Length 52mm | ||
Body Width 20.5mm | ||
Body Height 49.7mm | ||
Fuse Dimensions 52 x 20.5 x 49.7mm | ||
- COO (Country of Origin):
- IN
Eaton Centred Tag Fuse, 40A Current Rating, 690V Voltage Rating - 170M1563D
This centred tag fuse is a blade-style device designed for high-performance electrical applications. With a current rating of 40A and a fuse size of NH000, it operates reliably at a voltage rating of 690V. This high rupture capacity fuse is perfect for safeguarding electrical systems while ensuring efficient operation.
Features & Benefits
• High rupture capacity ensures safety in high fault conditions
• T speed rating provides quick response to overloads
• CE certification guarantees compliance with industry standards
• Compact dimensions allow easy installation in confined spaces
• Durable construction maximises operational longevity
• Designed for use in gR applications, ensuring robust performance
• T speed rating provides quick response to overloads
• CE certification guarantees compliance with industry standards
• Compact dimensions allow easy installation in confined spaces
• Durable construction maximises operational longevity
• Designed for use in gR applications, ensuring robust performance
Applications
• Utilised in industrial automation systems
• Suitable for electrical distribution and control panels
• Employed in machinery and mechanical equipment
• Ideal for circuit protection in residential electrics
• Used for protecting transformers and power supplies
• Suitable for electrical distribution and control panels
• Employed in machinery and mechanical equipment
• Ideal for circuit protection in residential electrics
• Used for protecting transformers and power supplies
What current ratings can be accommodated with this fuse?
The fuse supports a current rating of 40A, making it suitable for various applications requiring this specific capacity.
How does the rating affect its operational safety?
With a high rupture capacity, it ensures the device can handle fault conditions effectively, minimising potential damage to connected systems.
What characterises the speed rating of this fuse?
The T speed rating indicates a fast operation, which is vital in preventing electrical surges from damaging sensitive components.
Can this fuse be used in applications beyond standard electrical systems?
Yes, it is designed specifically for gR applications, allowing for versatility in different industrial environments.
What are the dimensions that facilitate installation?
The overall length is 79mm with a tag width of 15mm, making it compact enough for installations in various setups while maintaining compatibility.
Note
Eaton formerly known as Bussmann
