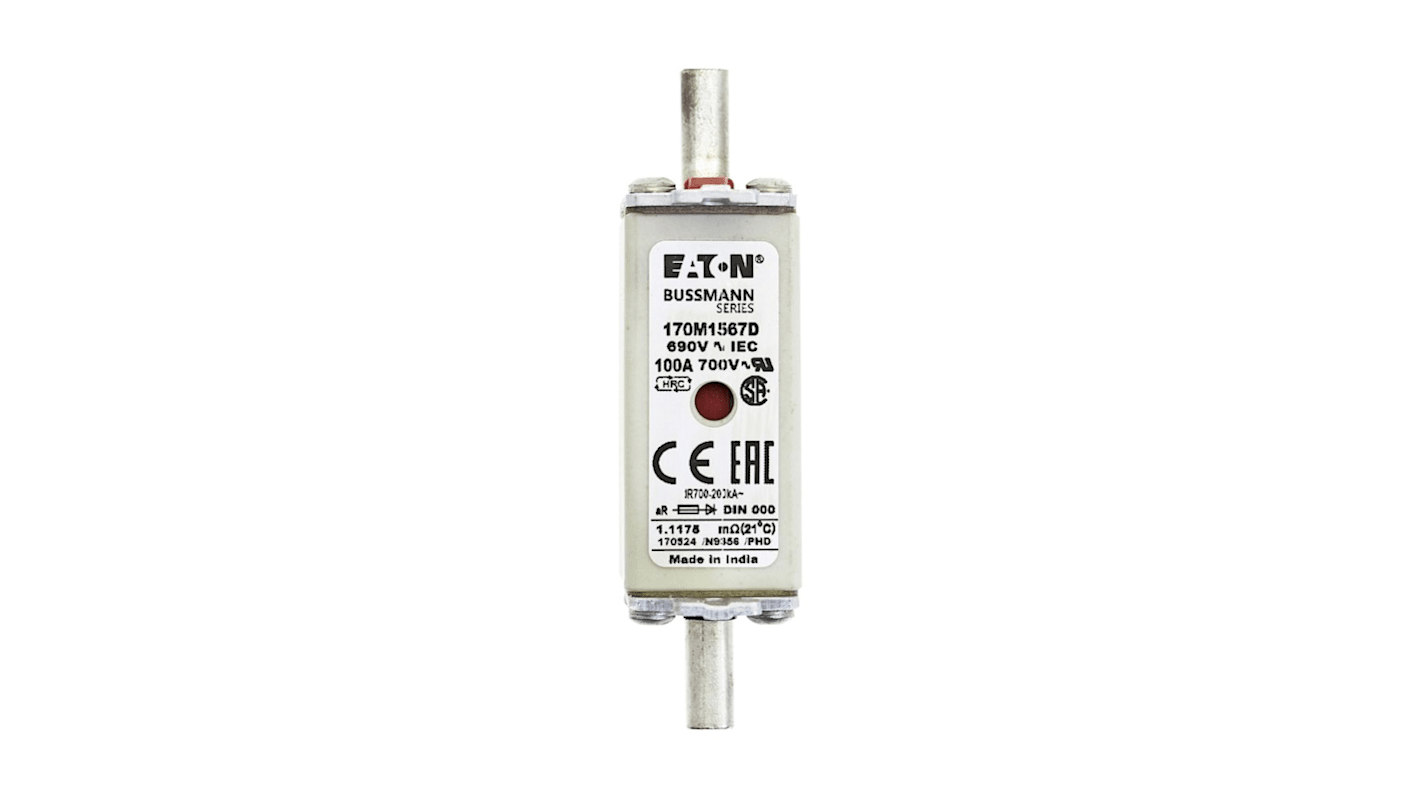

Eaton 100A Centred Tag Fuse, NH000, 690 V, 700 V

View all Tag Fuses

Subtotal (1 box of 10 units)*

£263.40

(exc. VAT)

£316.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
  • Plus 30 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
10 +£26.34£263.40

*price indicative

RS Stock No.:
182-1394
Mfr. Part No.:
170M1567D
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Current Rating

100A

Fuse Size

NH000

Voltage Rating

690 V, 700 V

Fuse Standard

CE, CSA, IEC 60269, UL

Application Category

aR

Tag Width

15mm

Fuse Speed

T

Overall Length

79mm

Tag Type

Blade

Body Length

52mm

Body Width

20.5mm

Body Height

49.7mm

Fuse Dimensions

79 x 21 x 51mm

Series

Eaton Bussmann

COO (Country of Origin):
IN

Eaton Centred Tag Fuse, 100A Current Rating, 690 (IEC)/700 (UL)V Voltage Rating - 170M1567D


This centred tag fuse is designed for high-performance requirements in electrical systems. With a current rating of 100 A and a voltage rating of 690V, it offers efficient protection in various applications. The NH000 fuse size ensures compatibility with a range of DIN configurations, making it a suitable solution for industrial environments.

Features & Benefits


• High breaking capacity of 200kA RMS for effective protection
• Fast response time to reduce downtime during faults
• CE and IEC 60269 approved for compliance with standards
• aR application category supports fast-acting operational needs
• Compact design at 79x21x51mm facilitates straightforward installation
• RoHS compliant for environmentally friendly applications

Applications


• Suitable for large motor protection in industrial settings
• Ideal for installations needing compact fuse solutions
• Designed for systems with high current demands
• Utilised in automation and electrical distribution networks

Can it withstand high voltage applications?


Yes, it has a voltage rating of 690V.

Will it operate effectively in fast fault conditions?


It features a T speed rating for rapid operation.

Is it compliant with international standards?


Yes, it complies with CE and IEC standards for fuses.

Can it be installed in various DIN configurations?


It is designed for NH000 fuse size installation.

Is it suitable for environments needing high current protection?


Yes, it provides a solution for high current applications.

Note

Eaton formerly known as Bussmann
