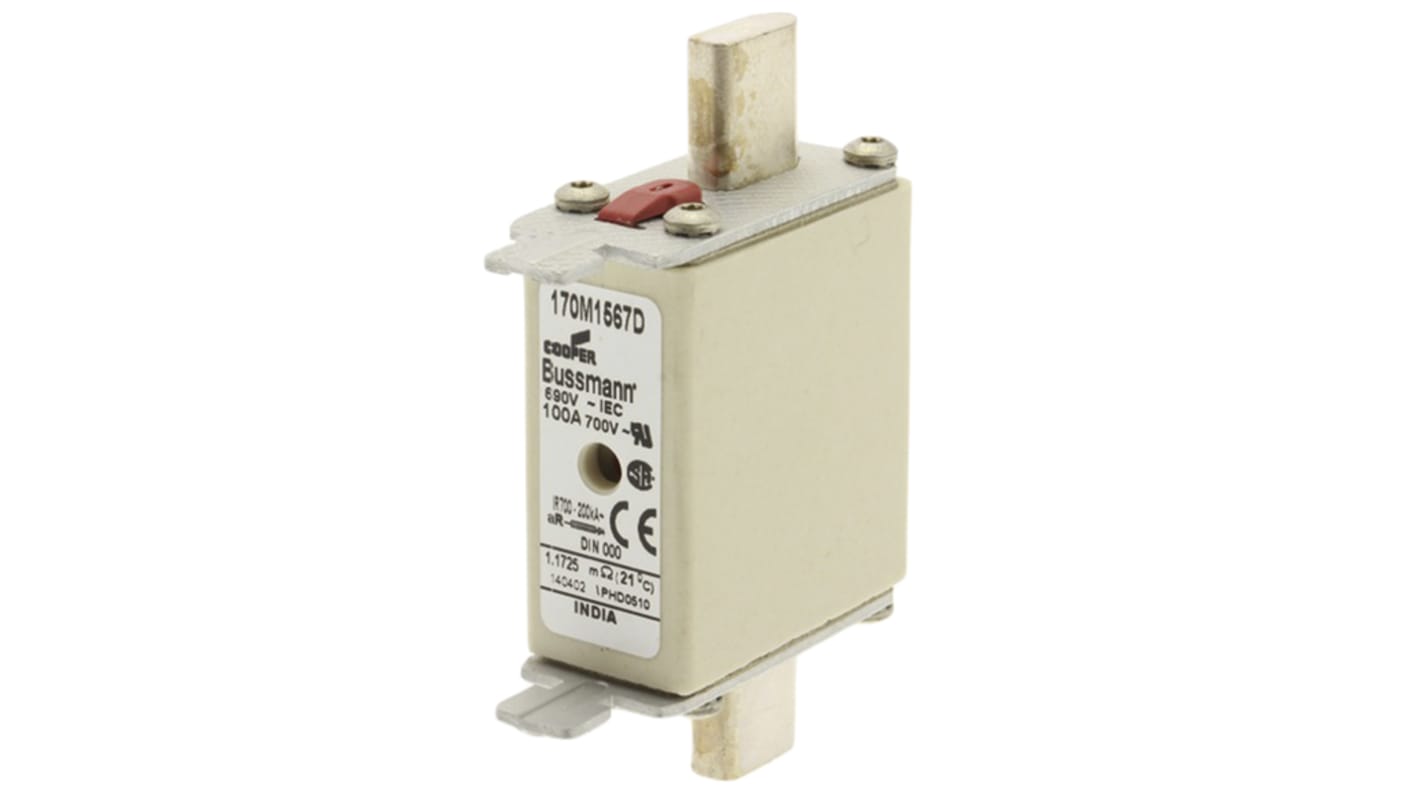

Eaton 100A Centred Tag Fuse, NH000, 690V
- RS Stock No.:
- 182-1593
- Mfr. Part No.:
- 170M1567D
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£26.35
(exc. VAT)
£31.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 30 unit(s) shipping from 31 October 2025
- Plus 999,999,956 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £26.35 |
| 2 - 4 | £25.61 |
| 5 + | £24.93 |
*price indicative
- RS Stock No.:
- 182-1593
- Mfr. Part No.:
- 170M1567D
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 100A | |
| Fuse Size | NH000 | |
| Voltage Rating | 690V | |
| Fuse Standard | CE, CSA, IEC 60269, UL | |
| Application Category | aR | |
| Tag Width | 15mm | |
| Fuse Speed | T | |
| Overall Length | 79mm | |
| Tag Type | Blade | |
| Body Length | 52mm | |
| Body Width | 21mm | |
| Body Height | 51mm | |
| Fuse Dimensions | 79 x 51 x 21mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 100A | ||
Fuse Size NH000 | ||
Voltage Rating 690V | ||
Fuse Standard CE, CSA, IEC 60269, UL | ||
Application Category aR | ||
Tag Width 15mm | ||
Fuse Speed T | ||
Overall Length 79mm | ||
Tag Type Blade | ||
Body Length 52mm | ||
Body Width 21mm | ||
Body Height 51mm | ||
Fuse Dimensions 79 x 51 x 21mm | ||
- COO (Country of Origin):
- IN
Eaton Centred Tag Fuse, 100A Current Rating, 690 (IEC)/700 (UL)V Voltage Rating - 170M1567D
This centred tag fuse is designed for high-performance requirements in electrical systems. With a current rating of 100 A and a voltage rating of 690V, it offers efficient protection in various applications. The NH000 fuse size ensures compatibility with a range of DIN configurations, making it a suitable solution for industrial environments.
Features & Benefits
• High breaking capacity of 200kA RMS for effective protection
• Fast response time to reduce downtime during faults
• CE and IEC 60269 approved for compliance with standards
• aR application category supports fast-acting operational needs
• Compact design at 79x21x51mm facilitates straightforward installation
• RoHS compliant for environmentally friendly applications
• Fast response time to reduce downtime during faults
• CE and IEC 60269 approved for compliance with standards
• aR application category supports fast-acting operational needs
• Compact design at 79x21x51mm facilitates straightforward installation
• RoHS compliant for environmentally friendly applications
Applications
• Suitable for large motor protection in industrial settings
• Ideal for installations needing compact fuse solutions
• Designed for systems with high current demands
• Utilised in automation and electrical distribution networks
• Ideal for installations needing compact fuse solutions
• Designed for systems with high current demands
• Utilised in automation and electrical distribution networks
Can it withstand high voltage applications?
Yes, it has a voltage rating of 690V.
Will it operate effectively in fast fault conditions?
It features a T speed rating for rapid operation.
Is it compliant with international standards?
Yes, it complies with CE and IEC standards for fuses.
Can it be installed in various DIN configurations?
It is designed for NH000 fuse size installation.
Is it suitable for environments needing high current protection?
Yes, it provides a solution for high current applications.
Note
Eaton formerly known as Bussmann
