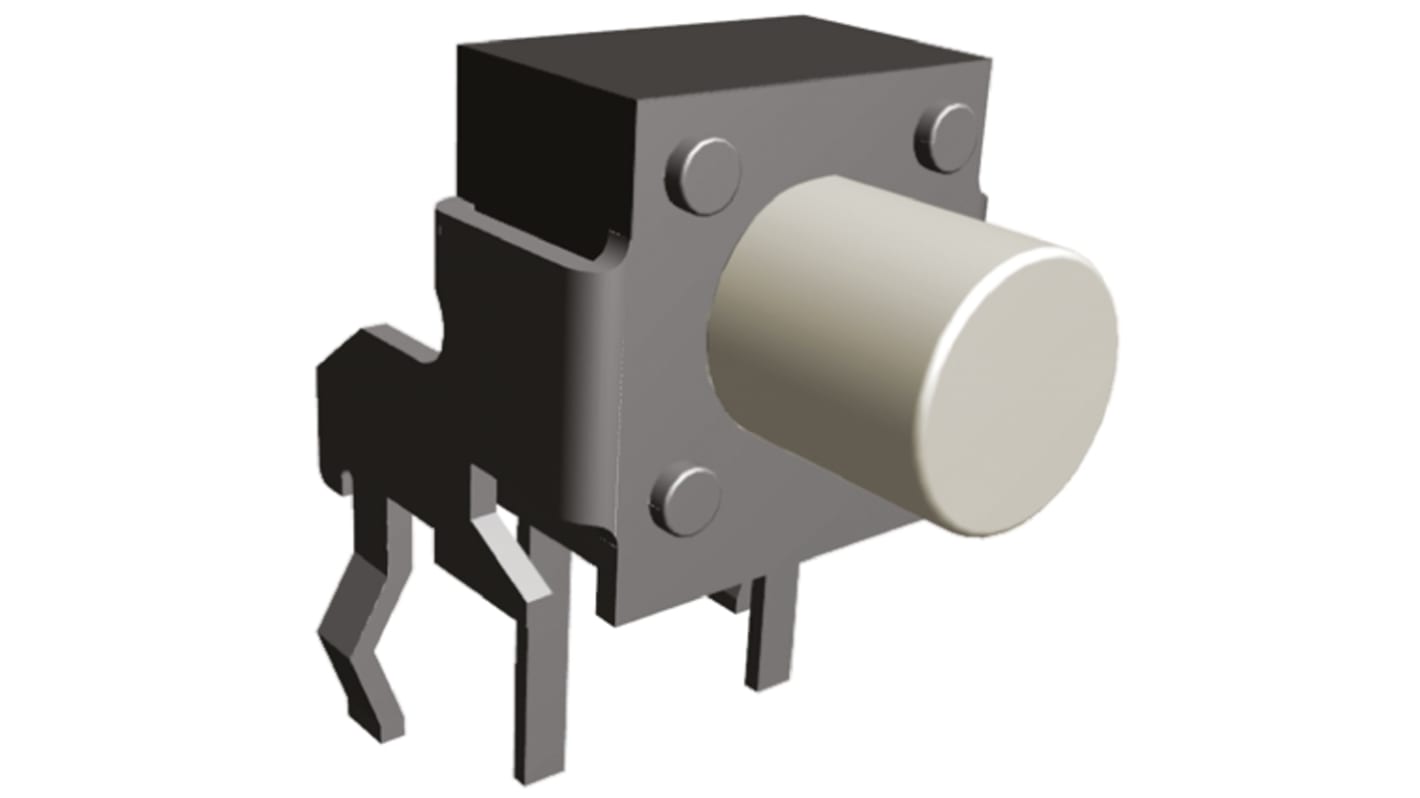

White Button Tactile Switch, SPST 50 mA @ 24 V dc 3.56mm
- RS Stock No.:
- 756-1350
- Mfr. Part No.:
- FSMRA5JH04
- Brand:
- TE Connectivity
165 In stock - FREE next working day delivery available
25 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.12
(exc. VAT)
£0.14
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.12 | £0.60 |
| 50 - 245 | £0.106 | £0.53 |
| 250 - 495 | £0.094 | £0.47 |
| 500 - 1245 | £0.082 | £0.41 |
| 1250 + | £0.08 | £0.40 |
| *price indicative | ||
- RS Stock No.:
- 756-1350
- Mfr. Part No.:
- FSMRA5JH04
- Brand:
- TE Connectivity
Legislation and Compliance
Product Details
TE Connectivity FSM Series Tactile Switches
TE Connectivity brings you a range of professional and brilliant tactile switches. The FSM series of tactile switches are housed in a strong 'Nylon 66' material and feature a moving contact of copper alloy-silver. These tactile switches are great use for mounting on your PCB to close a circuit. The small tactile switches come in THT & SMT mounting styles and excellent quality.
Features and benefits:
• Up to 1 Million operations
• Actuation force of 1.6N to 2.5N
• Small PCB footprint
• Low profile
• 0.25 Actuation travel
• Actuation force of 1.6N to 2.5N
• Small PCB footprint
• Low profile
• 0.25 Actuation travel
Applications:
• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 3.56mm |
| Actuator Colour | White |
| Actuator Type | Button |
| Length | 7.01mm |
| Width | 7.11mm |
| Dimensions | 7.01 x 7.11mm |
| Contact Current Rating | 50 mA @ 24 V dc |
| Voltage Rating | 24V dc |
| Operating Force | 160 g |
| Minimum Operating Temperature | -35°C |
| Operating Temperature Range | -35 → +85°C |
| Mechanical Life | 100000Cycles |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +85°C |
- RS Stock No.:
- 756-1350
- Mfr. Part No.:
- FSMRA5JH04
- Brand:
- TE Connectivity
