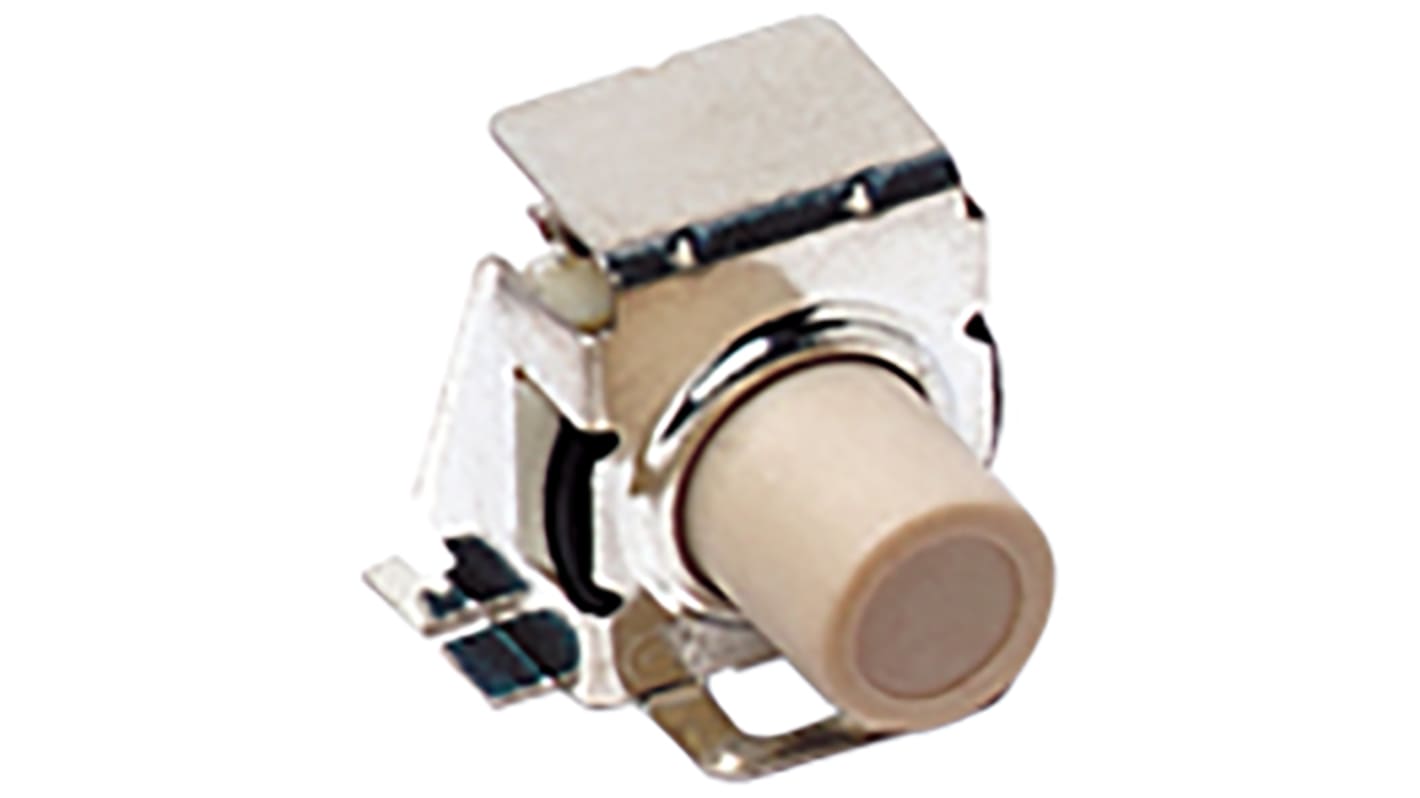

C & K IP57 Tactile Switch Side, 1.12 mm, SPST 100mA, 32 V ac 32 V dc, Surface
- RS Stock No.:
- 176-9563
- Mfr. Part No.:
- KT11P3SA3M34 LFS
- Brand:
- C & K
Subtotal (5 units, in packs of 5)*
£17.09
(exc. VAT)
£20.51
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.418 | £17.09 |
*price indicative
- RS Stock No.:
- 176-9563
- Mfr. Part No.:
- KT11P3SA3M34 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Length | 7.11mm | |
| Actuator Length | 1.12mm | |
| Width | 6.29mm | |
| Illuminated | No | |
| Contact AC Voltage | 32V ac | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | Surface | |
| Actuator Style | Side | |
| Contact DC Voltage | 32V dc | |
| Switch Contact Current | 100mA | |
| Maximum Operating Temperature | 90°C | |
| IP Rating | IP57 | |
| Series | KT11 | |
| Standards/Approvals | RoHS | |
| Height | 4.33mm | |
| Operating Force | 3N | |
| Mechanical Life | 100000Operations | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Length 7.11mm | ||
Actuator Length 1.12mm | ||
Width 6.29mm | ||
Illuminated No | ||
Contact AC Voltage 32V ac | ||
Minimum Operating Temperature -40°C | ||
Mount Type Surface | ||
Actuator Style Side | ||
Contact DC Voltage 32V dc | ||
Switch Contact Current 100mA | ||
Maximum Operating Temperature 90°C | ||
IP Rating IP57 | ||
Series KT11 | ||
Standards/Approvals RoHS | ||
Height 4.33mm | ||
Operating Force 3N | ||
Mechanical Life 100000Operations | ||
- COO (Country of Origin):
- CN
C&K’s KT series full SMT top and side actuated sealed tact switch has a high shear force with an extended bracket that gives it a long operating life. This feature, along with the KT’s G or J terminations, makes it ideal for computer, instrumentation and power supply applications.
Full SMT side-actuated tact switch
SMT top-actuated tact switch with G or J terminations
High shear force with extended bracket
Easy to pick & place with top plate tab
Rubber or hard plastic actuator
Press fit or snap fit caps
Typical Applications
Telecommunications
Computer products
Instrumentation
Power supply
