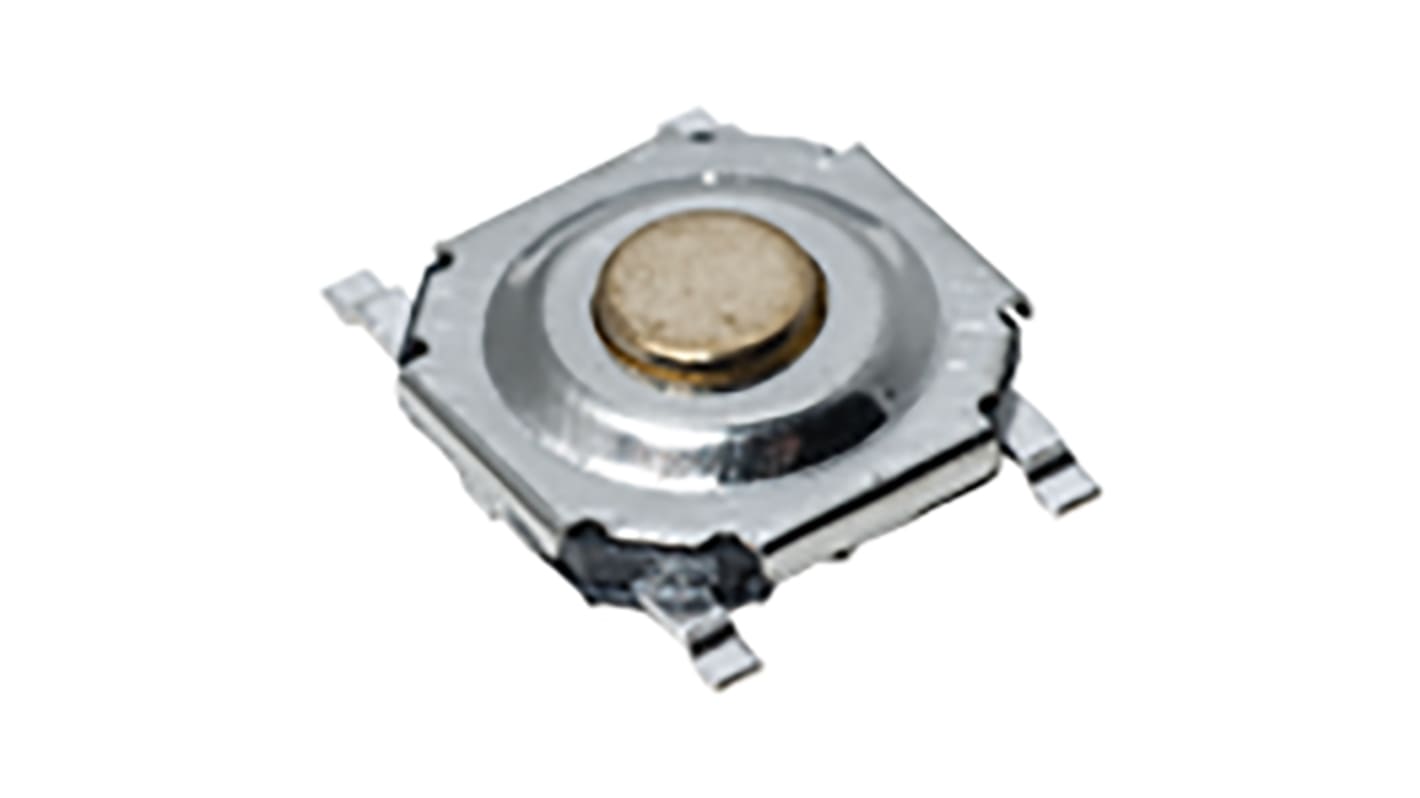

C & K IP40 Top Tactile Switch, SPST 20 mA 1.5mm Surface Mount

View all Tactile Switches
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
176-9487
Mfr. Part No.:
PTS525 SM15 SMTR2 LFS
Brand:
C & K
Find similar products by selecting one or more attributes.
Select all

Brand

C & K

Contact Configuration

SPST

Terminal Type

Gull Wing

Switch Operation

Momentary

Actuator Length

1.5mm

Actuator Type

Top

Length

5.1mm

Width

5.1mm

Dimensions

5.1 x 5.1mm

Illuminated

No

Mounting Type

Surface Mount

Contact Current Rating

20 mA

IP Rating

IP40

Operating Force

1.6 N

Voltage Rating

15V dc

Minimum Operating Temperature

-20°C

Operating Temperature Range

-20 → +70°C

Maximum Operating Temperature

+70°C

COO (Country of Origin):
CN
The PTS525 series of microminiature tact switches for SMT from C&K are available in a ruggedized package, in a compact size, with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, PTS525 switches can withstand harsh environments to keep working for a high number of cycles.

0.8 & 1.5 mm actuator height
Ruggedized package in a compact size
High number of cycles
Typical Applications
Consumer products
Instrumentation
Remote controls
