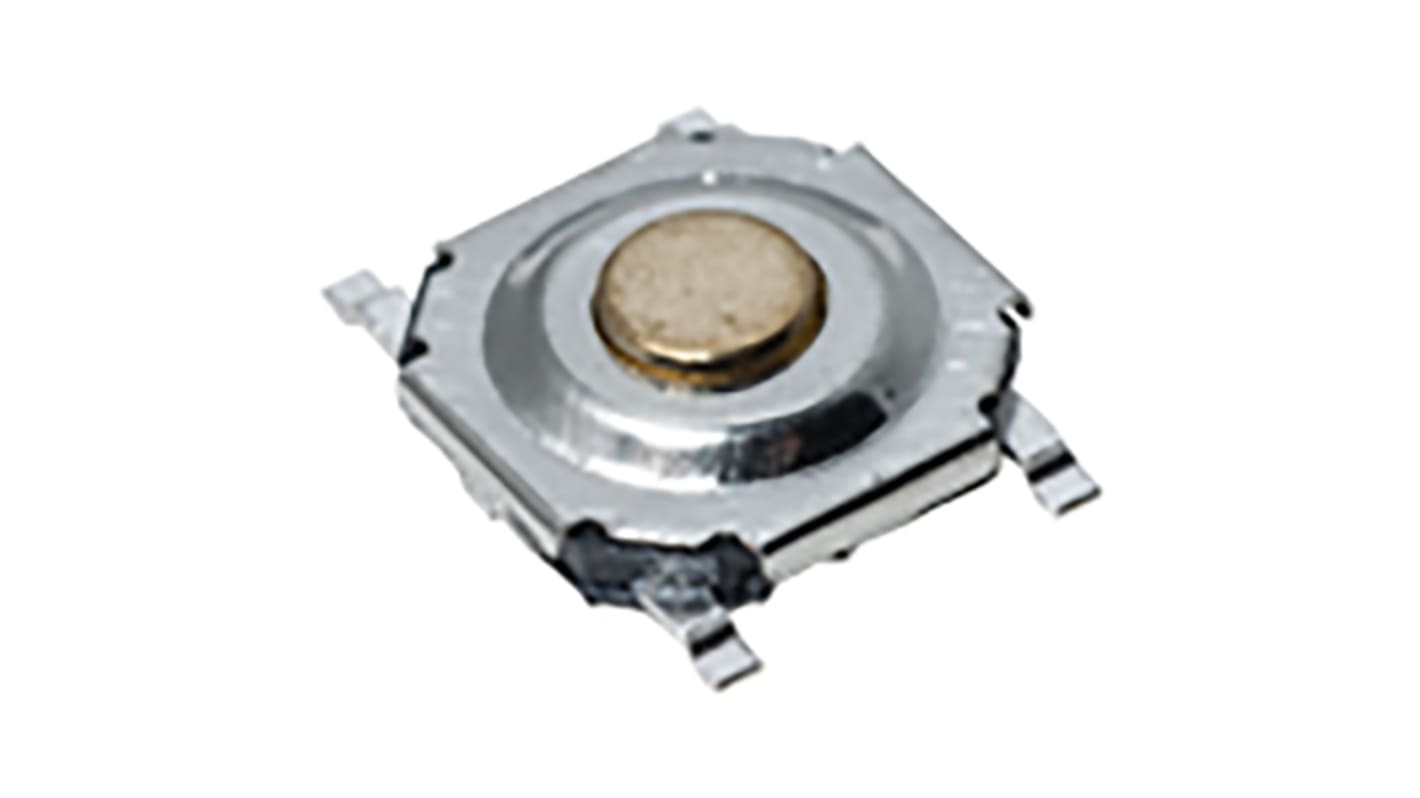

C & K IP40 Top Tactile Switch, SPST 20 mA 1.5mm Surface Mount

View all Tactile Switches
Discontinued
RS Stock No.:
176-9452
Mfr. Part No.:
PTS525 SK15 SMTR2 LFS
Brand:
C & K
Find similar products by selecting one or more attributes.
Select all

Brand

C & K

Contact Configuration

SPST

Terminal Type

Gull Wing

Switch Operation

Momentary

Actuator Length

1.5mm

Actuator Type

Top

Length

5.1mm

Width

5.1mm

Dimensions

5.1 x 5.1mm

Illuminated

No

Mounting Type

Surface Mount

Contact Current Rating

20 mA

IP Rating

IP40

Voltage Rating

15V dc

Operating Force

2.6 N

Operating Temperature Range

-20 → +70°C

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

COO (Country of Origin):
CN
The PTS525 series of microminiature tact switches for SMT from C&K are available in a ruggedized package, in a compact size, with either a 0.8mm or a 1.5mm actuator height. Often found designed into remote controls, instrumentation and various other consumer products, PTS525 switches can withstand harsh environments to keep working for a high number of cycles.

0.8 & 1.5 mm actuator height
Ruggedized package in a compact size
High number of cycles
Typical Applications
Consumer products
Instrumentation
Remote controls
