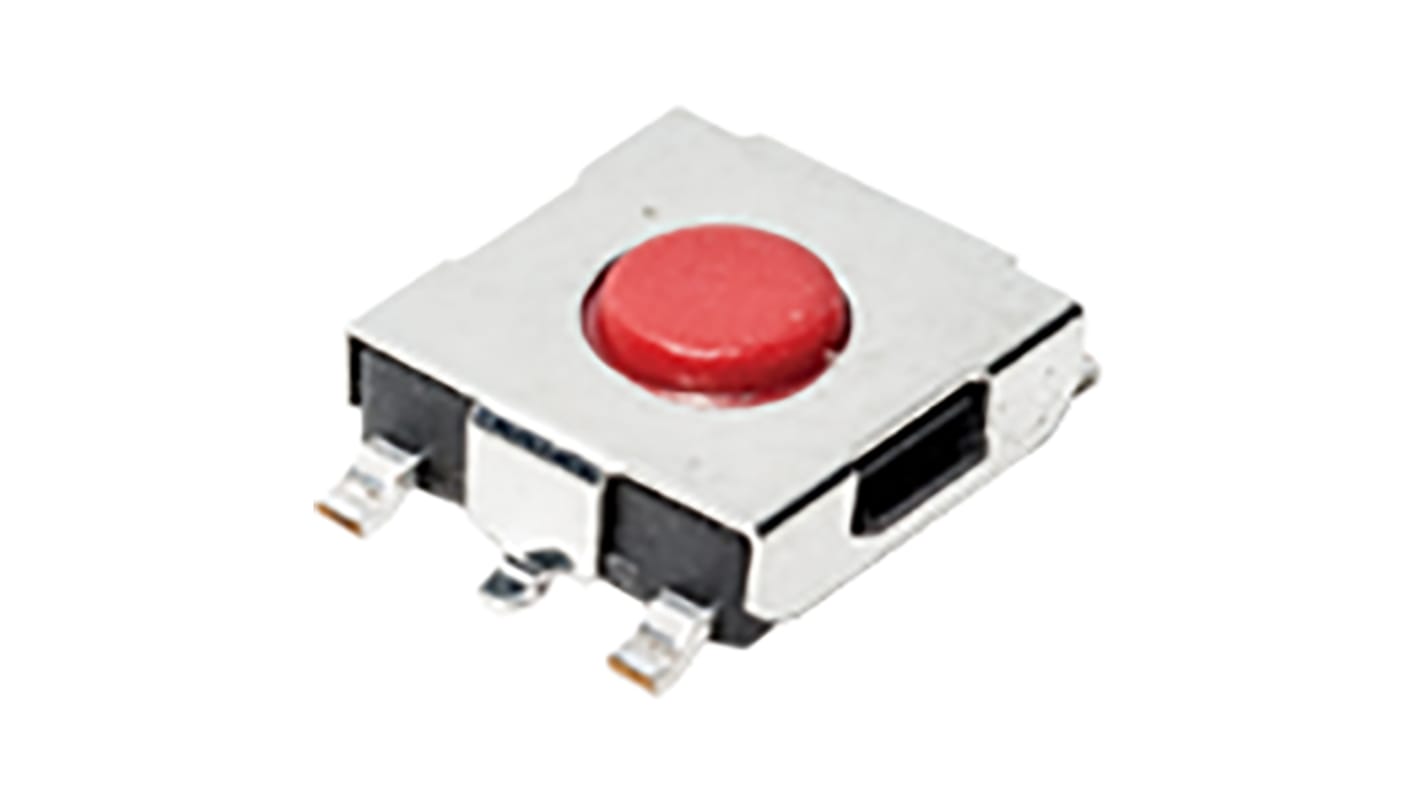

C & K IP40 Top Tactile Switch, SPST 50 mA 3.4mm Surface Mount
- RS Stock No.:
- 176-9453
- Mfr. Part No.:
- PTS641 SP34 SMTR2 LFS
- Brand:
- C & K
Subtotal (1 reel of 1500 units)*
£216.22
(exc. VAT)
£259.46
(inc. VAT)
Stock information currently inaccessible
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £216.22 | £0.144 |
*price indicative
- RS Stock No.:
- 176-9453
- Mfr. Part No.:
- PTS641 SP34 SMTR2 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | C & K | |
Contact Configuration | SPST | |
Terminal Type | SMT | |
Switch Operation | Momentary | |
Actuator Length | 3.4mm | |
Actuator Type | Top | |
Length | 6.3mm | |
Width | 6.4mm | |
Dimensions | 6.3 x 6.4mm | |
Illuminated | No | |
Mounting Type | Surface Mount | |
Contact Current Rating | 50 mA | |
IP Rating | IP40 | |
Voltage Rating | 12V dc | |
Operating Force | 3.2 N | |
Operating Temperature Range | -20 → +85°C | |
Contact Material | Silver | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type SMT | ||
Switch Operation Momentary | ||
Actuator Length 3.4mm | ||
Actuator Type Top | ||
Length 6.3mm | ||
Width 6.4mm | ||
Dimensions 6.3 x 6.4mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA | ||
IP Rating IP40 | ||
Voltage Rating 12V dc | ||
Operating Force 3.2 N | ||
Operating Temperature Range -20 → +85°C | ||
Contact Material Silver | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- CN
C&Ks PTS641 series SMT top actuated switches are recognized in the home and garden equipment, white goods and metering industries for their responsiveness and reliability. Available in a 6.3 x 6.3mm footprint, in multiple heights and with a ground pin option, the PTS641 can help any product perform better than the competition.
6.3 x 6.3 mm footprint
Multiple heights
Ground pin option
Typical Applications
Metering
White goods
Home and garden equipment
Multiple heights
Ground pin option
Typical Applications
Metering
White goods
Home and garden equipment
