TRACOPOWER Switching Power Supply, TPI 50-148A-J, 48V dc, 1.045mA, 50W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 251-5662
- Mfr. Part No.:
- TPI 50-148A-J
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£24.71
(exc. VAT)
£29.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.71 |
*price indicative
- RS Stock No.:
- 251-5662
- Mfr. Part No.:
- TPI 50-148A-J
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 48V dc | |
| Output Current | 1.045mA | |
| Power Rating | 50W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Open Frame | |
| Length | 76.2mm | |
| Width | 38.1mm | |
| Embedded | No | |
| Depth | 27.5mm | |
| Efficiency | 92% | |
| Series | TPI 50A-J | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Weight | 78g | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 48V dc | ||
Output Current 1.045mA | ||
Power Rating 50W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 76.2mm | ||
Width 38.1mm | ||
Embedded No | ||
Depth 27.5mm | ||
Efficiency 92% | ||
Series TPI 50A-J | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Weight 78g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

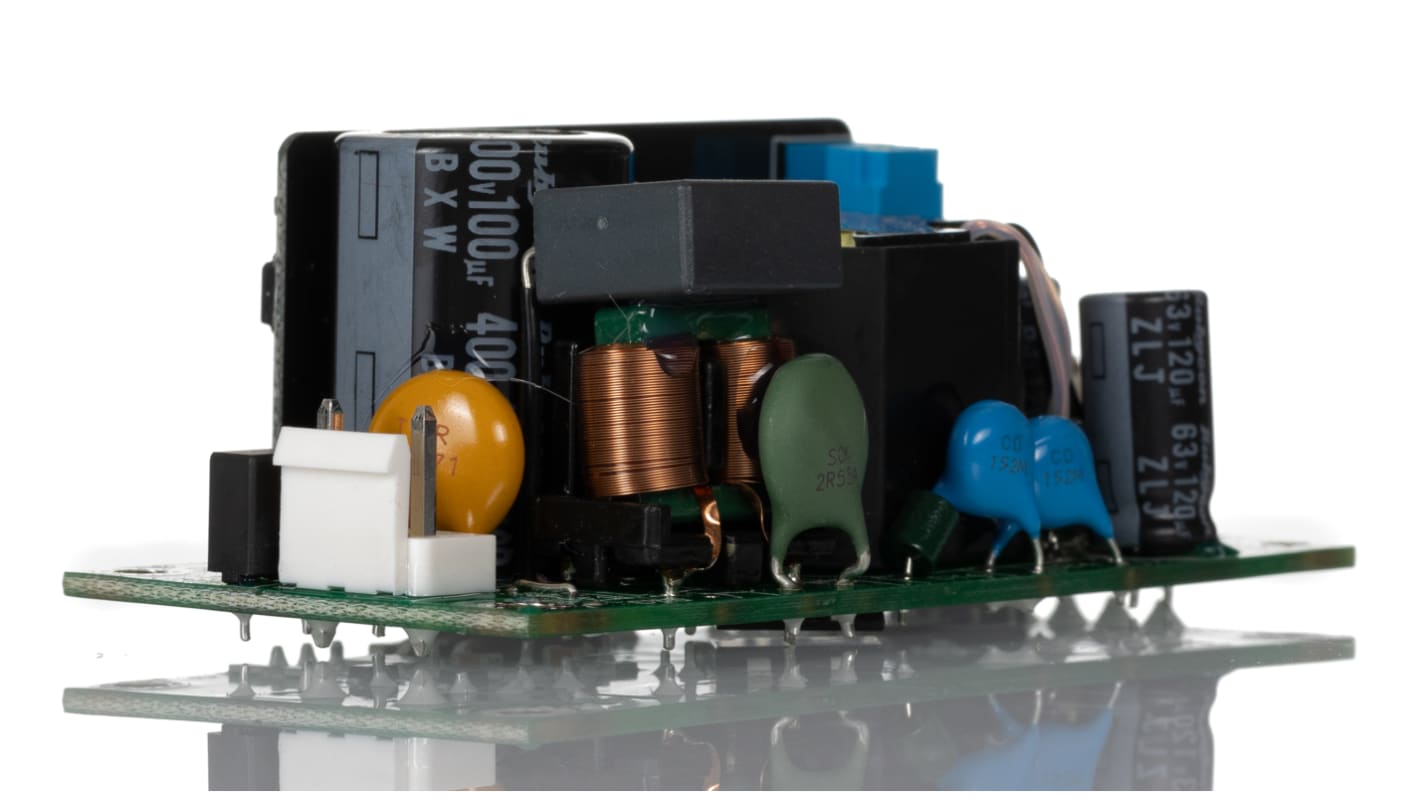

TRACOPOWER TPI 50A-J Series Switching Power Supply, 85 → 264 V AC Input, 1 Output - TPI 50-148A-J
This industrial power supply by TRACOPOWER is a versatile and reliable solution for a range of applications. With a power rating of 50 Watts and an output voltage of 48V DC, this open frame power supply offers high performance and efficiency, making it an ideal choice for industrial devices and space-critical applications.
Features & Benefits
• Compact and cost-efficient design
• Peak power function up to 140%
• I/O reinforced isolation of 3000 V AC
• High efficiency up to 93%
• Operation temperature range of -40°C to +85°C
• Compliance with IEC 62368-1 and UL 62368-1 standards
• Peak power function up to 140%
• I/O reinforced isolation of 3000 V AC
• High efficiency up to 93%
• Operation temperature range of -40°C to +85°C
• Compliance with IEC 62368-1 and UL 62368-1 standards
Applications
• Industrial automation
• Test and measurement equipment
• Various industrial devices
• Test and measurement equipment
• Various industrial devices
Can it operate in extreme temperatures?
Yes, it has an operating temperature range from -40°C to +85°C.
Will it provide reliable power for industrial applications?
Yes, with an internal EN 55032 class B filter, it ensures stable power supply for industrial devices.
Is the power supply energy efficient?
Yes, with a high efficiency of up to 93%, it helps save energy costs.
Can it handle peak power requirements?
Yes, it offers a peak power function allowing up to 140% of the rated power for short durations.
