TRACOPOWER Power Supply 48V dc, 1360mA, 65 W, Input 85V ac to 264V ac
- RS Stock No.:
- 284-8890
- Mfr. Part No.:
- TPI 65-148A-JP
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£31.70
(exc. VAT)
£38.04
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 7 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.70 |
*price indicative
- RS Stock No.:
- 284-8890
- Mfr. Part No.:
- TPI 65-148A-JP
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 65W | |
| SMPS Output Current | 1360mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 50.8mm | |
| Length | 76.2mm | |
| Depth | 24mm | |
| Weight | 117g | |
| Standards/Approvals | UL 62368-1, IEC 62368-1, EN 62368-1 | |
| Series | TPI 65A-J | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 93% | |
| Hazardous Area Certification | NO | |
| Output Current | 1.36A | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 65W | ||
SMPS Output Current 1360mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 50.8mm | ||
Length 76.2mm | ||
Depth 24mm | ||
Weight 117g | ||
Standards/Approvals UL 62368-1, IEC 62368-1, EN 62368-1 | ||
Series TPI 65A-J | ||
Maximum Input Voltage 264V ac | ||
Efficiency 93% | ||
Hazardous Area Certification NO | ||
Output Current 1.36A | ||
Minimum Input Voltage 85V ac | ||

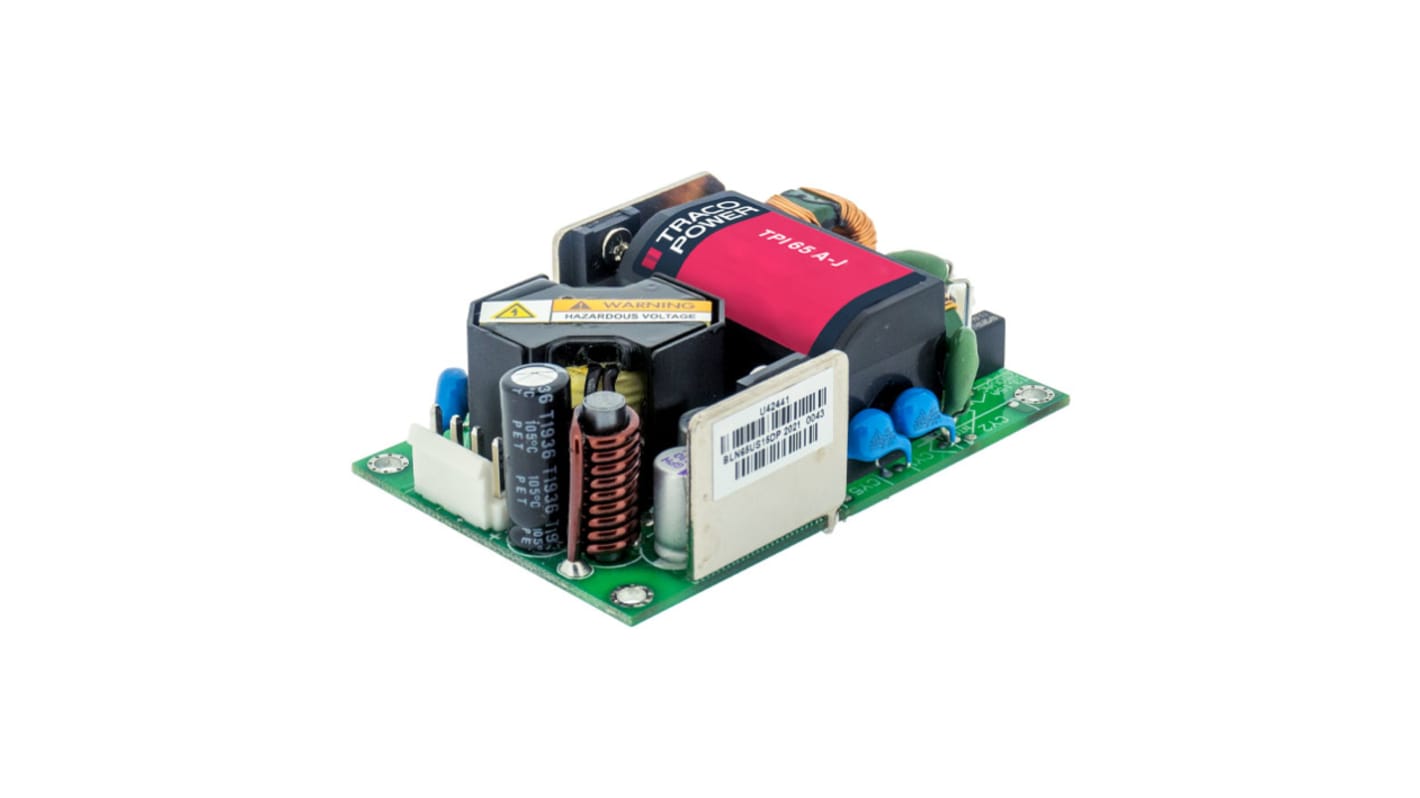

The TRACOPOWER open frame power supplies series with a 3000 VAC reinforced isolation system. Our TPI line specifically focuses on providing cost efficient industrial power supplies in compact designs. This series offers a peak power function which enables the unit to deliver up to 140% of the rated power for up to 10 seconds. Excellent efficiency of up to 93% allows a compact design and an operating temperature range of –40°C to +70°C without derating, while going up to +85°C with either load derating or forced cooling. They are designed to meet the ERP directive and come with an EMC characteristics dedicated for applications in industrial/automation and test & measurement fields. High reliability is provided by use of industrial high-quality grade components and an excellent thermal management.
Compact and cost efficient design
Peak power function
High efficiency
Protection class 2
