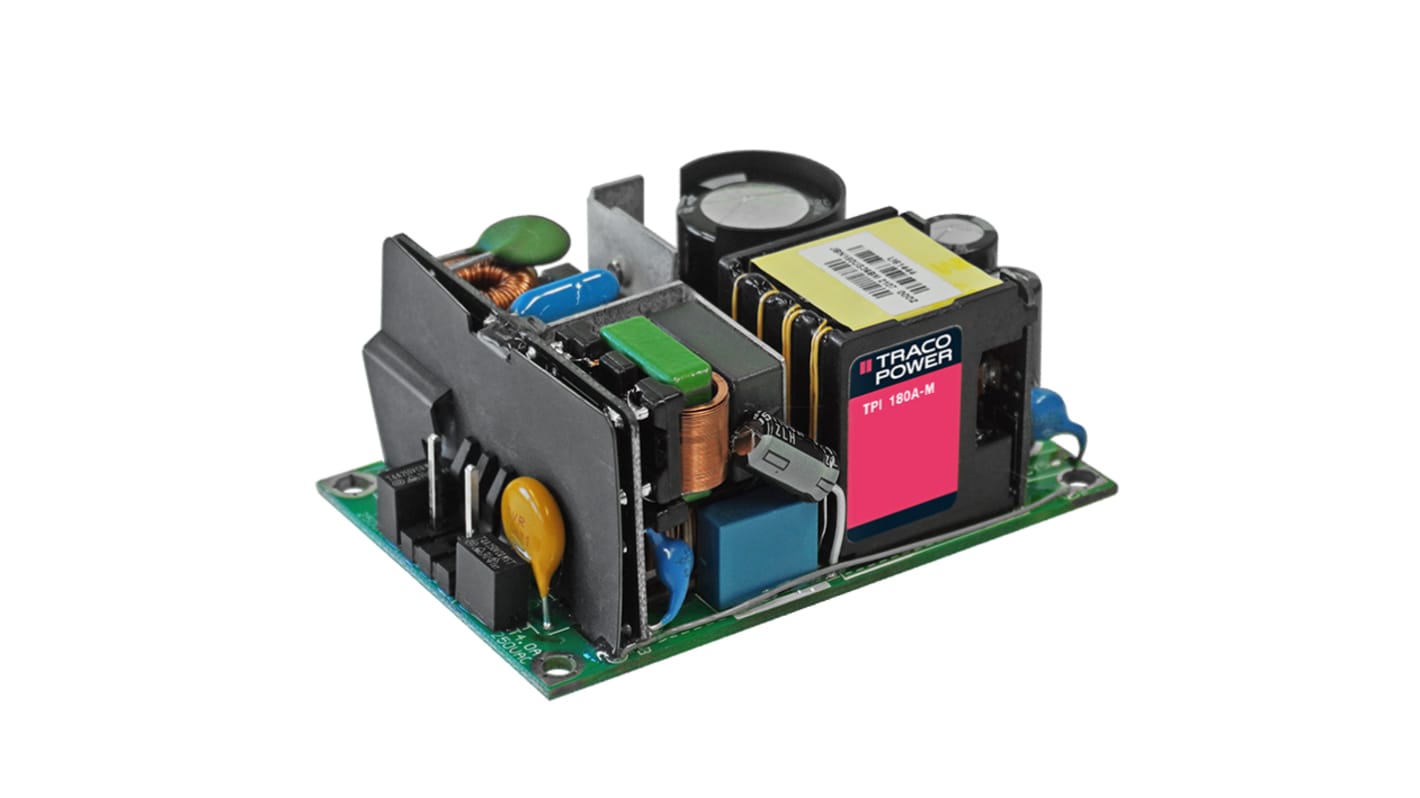

TRACOPOWER Power Supply, TPI 180-148A-M, 48V dc, 3.75A, 180W, 1 Output, 85 → 264V ac Input Voltage

RS Stock No.:: 249-9816
Mfr. Part No.:: TPI 180-148A-M
Brand:: TRACOPOWER

TRACOPOWER Power Supply, TPI 180-148A-M, 48V dc, 3.75A, 180W, 1 Output, 85 → 264V ac Input Voltage

Available to back order for despatch 23/12/2024

Price Each

£82.90

(exc. VAT)

£99.48

(inc. VAT)

Units	Per unit
1 - 4	£82.90
5 - 9	£80.41
10 - 24	£77.93
25 - 49	£74.61
50 +	£71.29

RS Stock No.:: 249-9816
Mfr. Part No.:: TPI 180-148A-M
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: TW

Product Details

TRACOPOWER TPI 180A-M Series Power Supply, 180W Power Rating, 48V DC Output Voltage - TPI 180-148A-M

This power supply by TRACOPOWER is a reliable and energy-efficient solution for industrial and medical devices. With a power rating of 180W and a high power-density design, it delivers efficient performance. It features a reinforced double I/O isolation system and complies with industrial standards.

Features & Benefits

• High power-density design of 180W in a compact 3”x2” package
• I/O isolation of 3000 VAC provides safety and protection
• Certification according to IEC/EN/UL 62368-1 for compliance
• Operating temperature range from -40°C to +85°C for versatility
• Active power factor correction ensures efficiency up to 94%

Applications

• Ideal for use in industrial and medical devices
• Suitable for applications requiring high power-density and compact design
• Can be used for demanding safety and space-critical Applications

Can it operate in extreme temperatures?

Yes, this power supply can operate in temperatures ranging from -40°C to +85°C.

Will it provide high efficiency for industrial applications?

Yes, with efficiency up to 94%, it is reliable for industrial use.

Is it suitable for demanding safety requirements?

Yes, it is an ideal solution for applications with demanding safety standards.

Can it be used in compact spaces?

Yes, the 3”x2” design makes it suitable for space-critical applications.

Specifications

Attribute	Value
Output Voltage	48V dc
Output Current	3.75A
Power Rating	180W
Number of Outputs	1
Input Voltage	85 → 264V ac
Mounting Type	Chassis Mount
Package Type	Open Frame
Length	76.2mm
Width	50.8mm
Embedded	No
Depth	34.6mm
Efficiency	93%
Series	TPI 180A-M
Weight	162g
Maximum Temperature	+85°C
Minimum Temperature	-40°C
