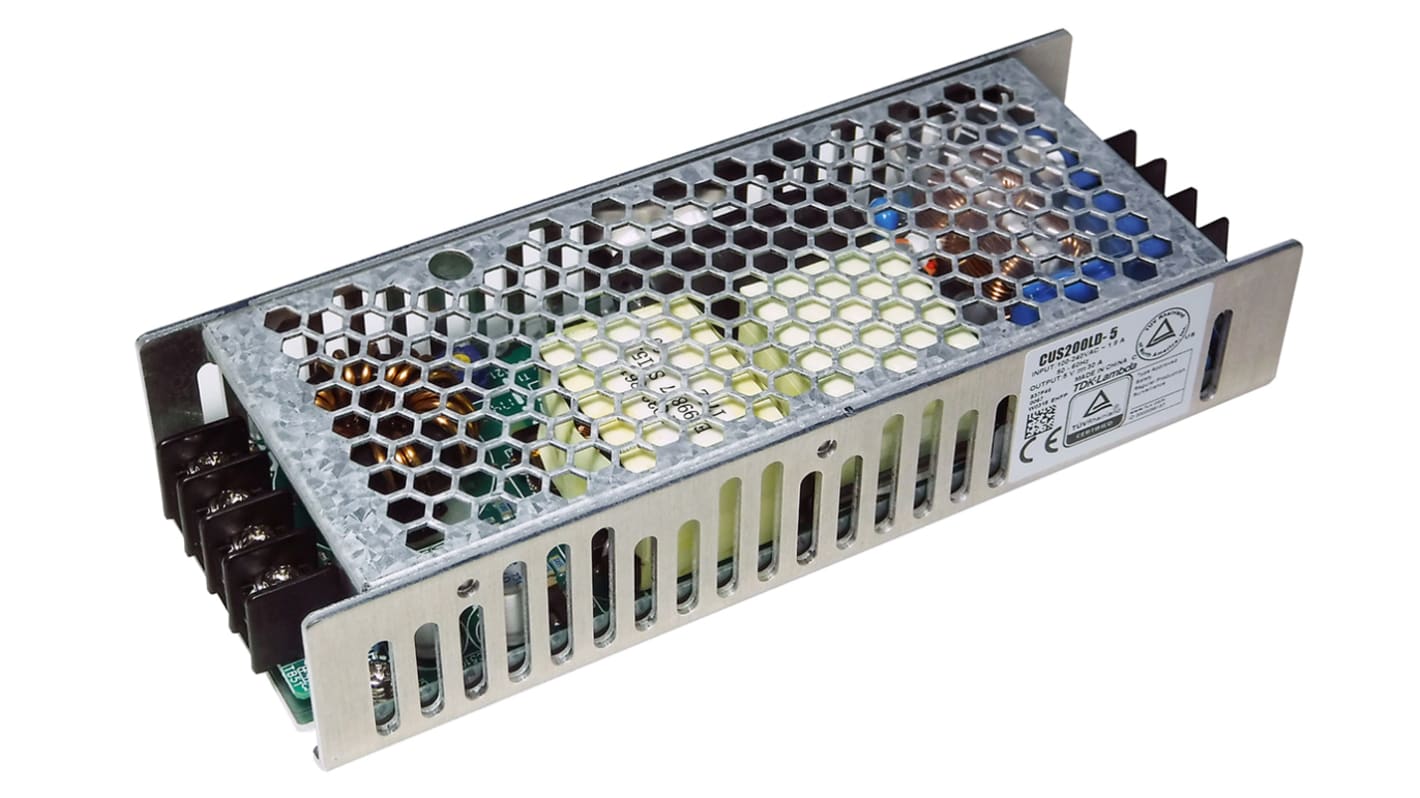

TDK-Lambda Switching Power Supply, CUS200LD-24 24V dc, 6.3A, Input 85V ac to 265V ac
- RS Stock No.:
- 185-6164
- Mfr. Part No.:
- CUS200LD-24
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£74.07
(exc. VAT)
£88.88
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.07 |
*price indicative
- RS Stock No.:
- 185-6164
- Mfr. Part No.:
- CUS200LD-24
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Panel | |
| SMPS Output Current | 6.3A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 160mm | |
| Width | 62mm | |
| Standards/Approvals | CE, EN 55022-B, FCC-B, IEC 61000-4-11, IEC 61000-4-2 (lv 2,3), IEC 61000-4-3 (lv3), IEC 61000-4-4 (lv 3), IEC 61000-4-5 (lv 3,4), IEC 61000-4-6 (lv 3), IEC 61000-4-8 (lv 4), IEC/UL/CSA/EN 62368-1 | |
| Weight | 430g | |
| Depth | 31mm | |
| Maximum Input Voltage | 265V ac | |
| Series | CUS200LD | |
| Efficiency | 89% | |
| Hazardous Area Certification | NO | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Panel | ||
SMPS Output Current 6.3A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 160mm | ||
Width 62mm | ||
Standards/Approvals CE, EN 55022-B, FCC-B, IEC 61000-4-11, IEC 61000-4-2 (lv 2,3), IEC 61000-4-3 (lv3), IEC 61000-4-4 (lv 3), IEC 61000-4-5 (lv 3,4), IEC 61000-4-6 (lv 3), IEC 61000-4-8 (lv 4), IEC/UL/CSA/EN 62368-1 | ||
Weight 430g | ||
Depth 31mm | ||
Maximum Input Voltage 265V ac | ||
Series CUS200LD | ||
Efficiency 89% | ||
Hazardous Area Certification NO | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
Designed for light industrial, LED signage, broadcast, IT, and test & measurement equipment, the CUS200LD can deliver up to 120W convection, 150W conduction cooled and 206W peak power. The series is available with nominal output voltages of 5V, 7.5V, 12V, 15V, 24V and 48Vdc. The low 31mm height makes it suitable for mounting in LED displays.
Convection or conduction cooling
Low 31mm height
-40oC ambient temperature start-up
Up to 206W peak power
3 year warranty
Applications
General Purpose Industrial
Broadcast
LED Lighting & Signs
Test & Measurement
Communication
