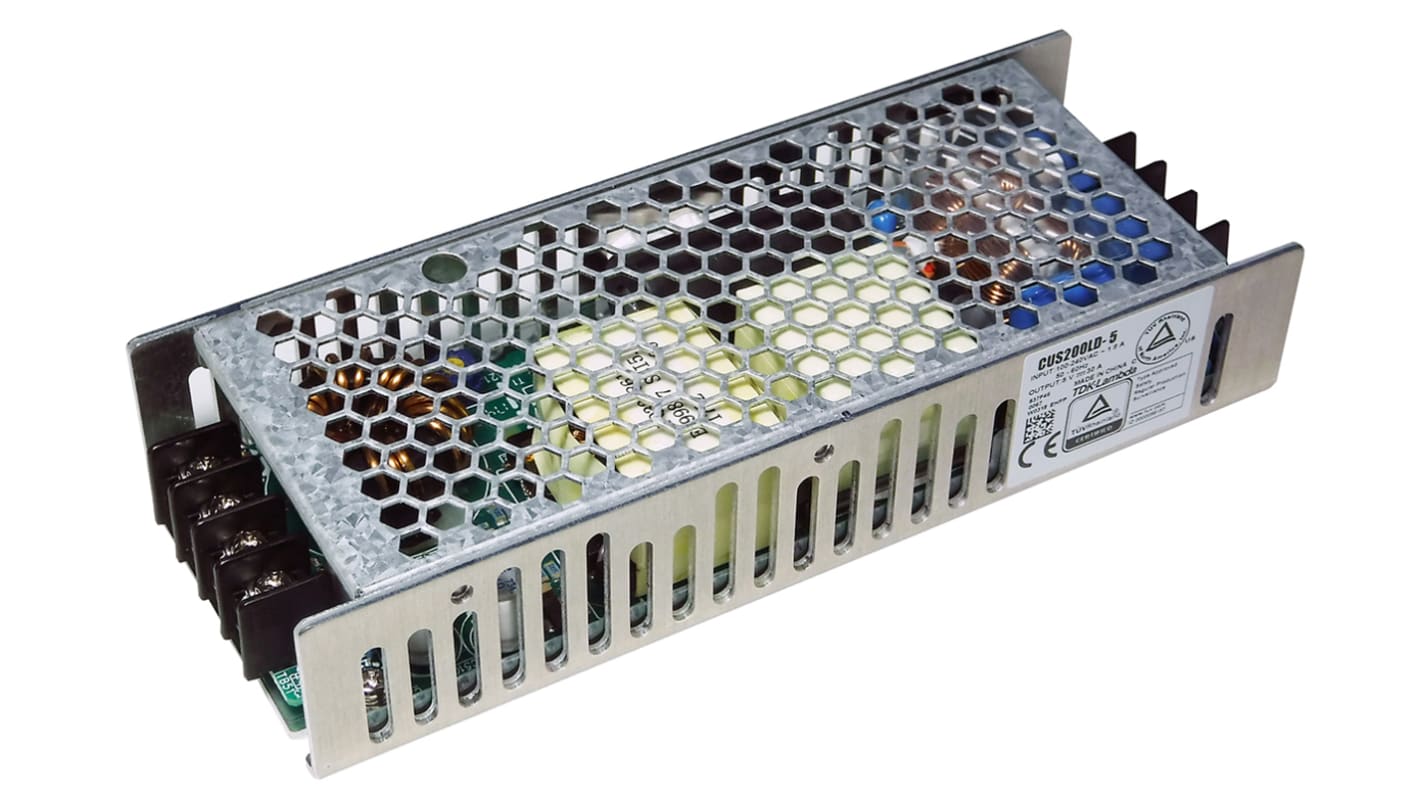

TDK-Lambda Switching Power Supply, CUS200LD-15, 15V dc, 8A, 120 (Convection) W, 150 (Conduction) W, 1 Output, 85
- RS Stock No.:
- 185-6162
- Mfr. Part No.:
- CUS200LD-15
- Brand:
- TDK-Lambda
Save 11% when you buy 50 units
Subtotal (1 unit)*
£83.77
(exc. VAT)
£100.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £83.77 |
5 - 9 | £81.25 |
10 - 24 | £78.74 |
25 - 49 | £76.22 |
50 + | £73.72 |
*price indicative
- RS Stock No.:
- 185-6162
- Mfr. Part No.:
- CUS200LD-15
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 15V dc | |
Output Current | 8 A, 10A | |
Power Rating | 120 (Convection) W, 150 (Conduction) W | |
Number of Outputs | 1 | |
Input Voltage | 85 → 265V ac | |
Package Type | Enclosed | |
Length | 160mm | |
Width | 62mm | |
Depth | 31mm | |
Series | CUS200LD | |
Efficiency | 89% | |
Maximum Temperature | +70°C | |
Weight | 430g | |
Minimum Temperature | -25°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 15V dc | ||
Output Current 8 A, 10A | ||
Power Rating 120 (Convection) W, 150 (Conduction) W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 265V ac | ||
Package Type Enclosed | ||
Length 160mm | ||
Width 62mm | ||
Depth 31mm | ||
Series CUS200LD | ||
Efficiency 89% | ||
Maximum Temperature +70°C | ||
Weight 430g | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- CN
Designed for light industrial, LED signage, broadcast, IT, and test & measurement equipment, the CUS200LD can deliver up to 120W convection, 150W conduction cooled and 206W peak power. The series is available with nominal output voltages of 5V, 7.5V, 12V, 15V, 24V and 48Vdc. The low 31mm height makes it suitable for mounting in LED displays.
Convection or conduction cooling
Low 31mm height
-40oC ambient temperature start-up
Up to 206W peak power
3 year warranty
Applications
General Purpose Industrial
Broadcast
LED Lighting & Signs
Test & Measurement
Communication
Low 31mm height
-40oC ambient temperature start-up
Up to 206W peak power
3 year warranty
Applications
General Purpose Industrial
Broadcast
LED Lighting & Signs
Test & Measurement
Communication
