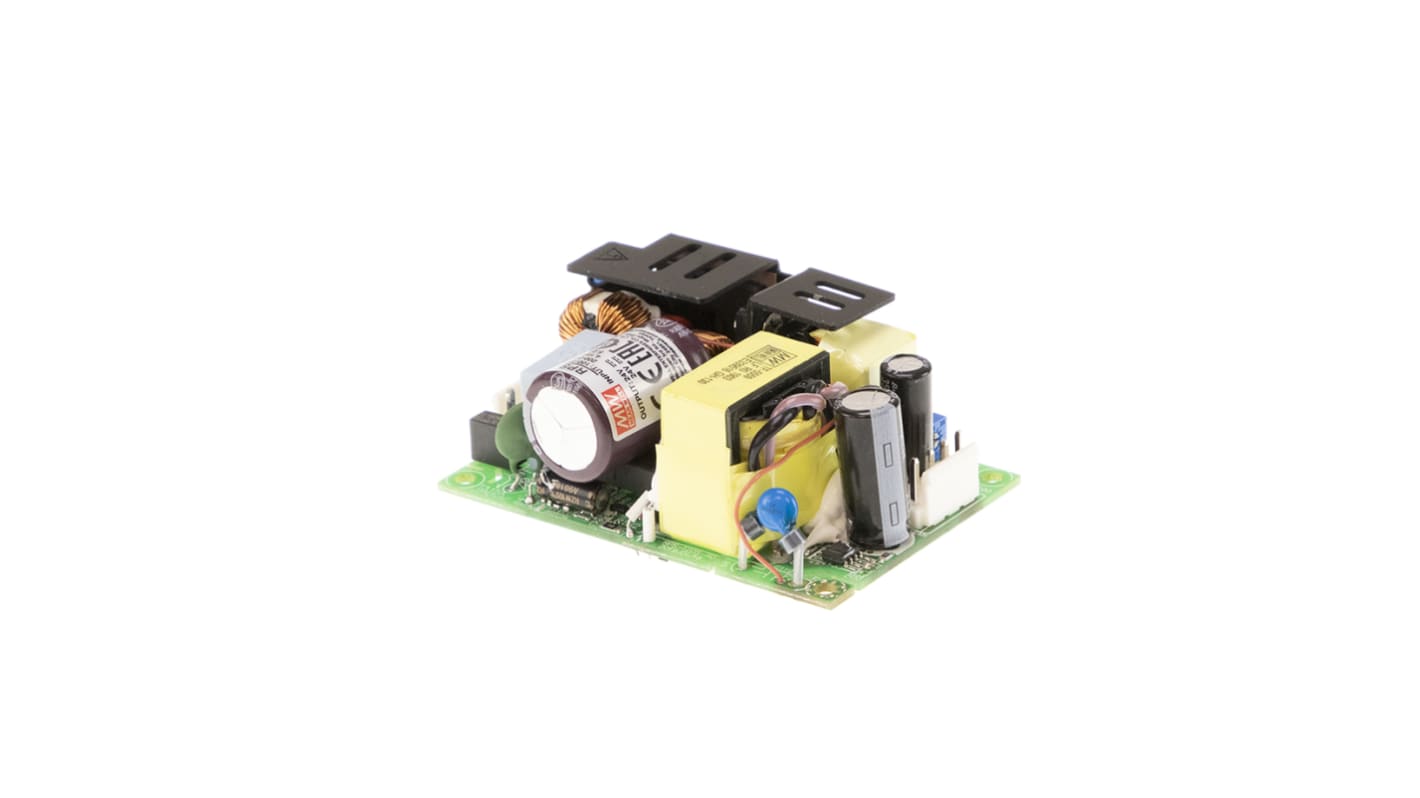

MEAN WELL Switching Power Supply, EPP-120S-24, 24V dc, 5 A, 6.25 A, 120 (Convection) W, 150 (Peak) W, 1 Output, 113

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£30.13

(exc. VAT)

£36.16

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 204 left, ready to ship
  • Plus 17 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£30.13
5 - 9£29.22
10 - 24£28.31
25 - 49£27.41
50 +£26.50

*price indicative

RS Stock No.:
187-6213
Distrelec Article No.:
303-72-350
Mfr. Part No.:
EPP-120S-24
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

24V dc

Output Current

5 A, 6.25 A

Power Rating

120 (Convection) W, 150 (Peak) W

Number of Outputs

1

Input Voltage

113 → 370 V dc, 80 → 264 V ac

Mounting Type

PCB Mount

Package Type

Open Frame

Length

76.2mm

Width

50.8mm

Depth

28mm

Efficiency

93%

Series

EPP-120S

Minimum Temperature

-30°C

Maximum Temperature

+85°C

Weight

130g

COO (Country of Origin):
CN
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on a 3" by 2" footprint. It accepts 80∼264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.3W. EPP-120S is able to be used for both class I (with FG) & Class II(no FG) system design.EPP-120S has the complete protection functions.EPP-120S series serves as a high price-to-performance power supply solution for various industrial applications.

EMI for both Class I & Class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No load power consumption <0.3W
Operating altitude up to 5000 meter
3 years warranty
