TDK-Lambda Switching Power Supply, KWS15A-24, 24V dc, 700mA, 16.8W, 1 Output, 120 → 370 V dc, 85 → 265 V
- RS Stock No.:
- 124-4729
- Mfr. Part No.:
- KWS15A-24
- Brand:
- TDK-Lambda
Available to back order for despatch 08/11/2024
Price Each
£31.31
(exc. VAT)
£37.57
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £31.31 |
| 5 - 9 | £30.49 |
| 10 - 24 | £29.72 |
| 25 - 49 | £28.99 |
| 50 + | £28.29 |
- RS Stock No.:
- 124-4729
- Mfr. Part No.:
- KWS15A-24
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

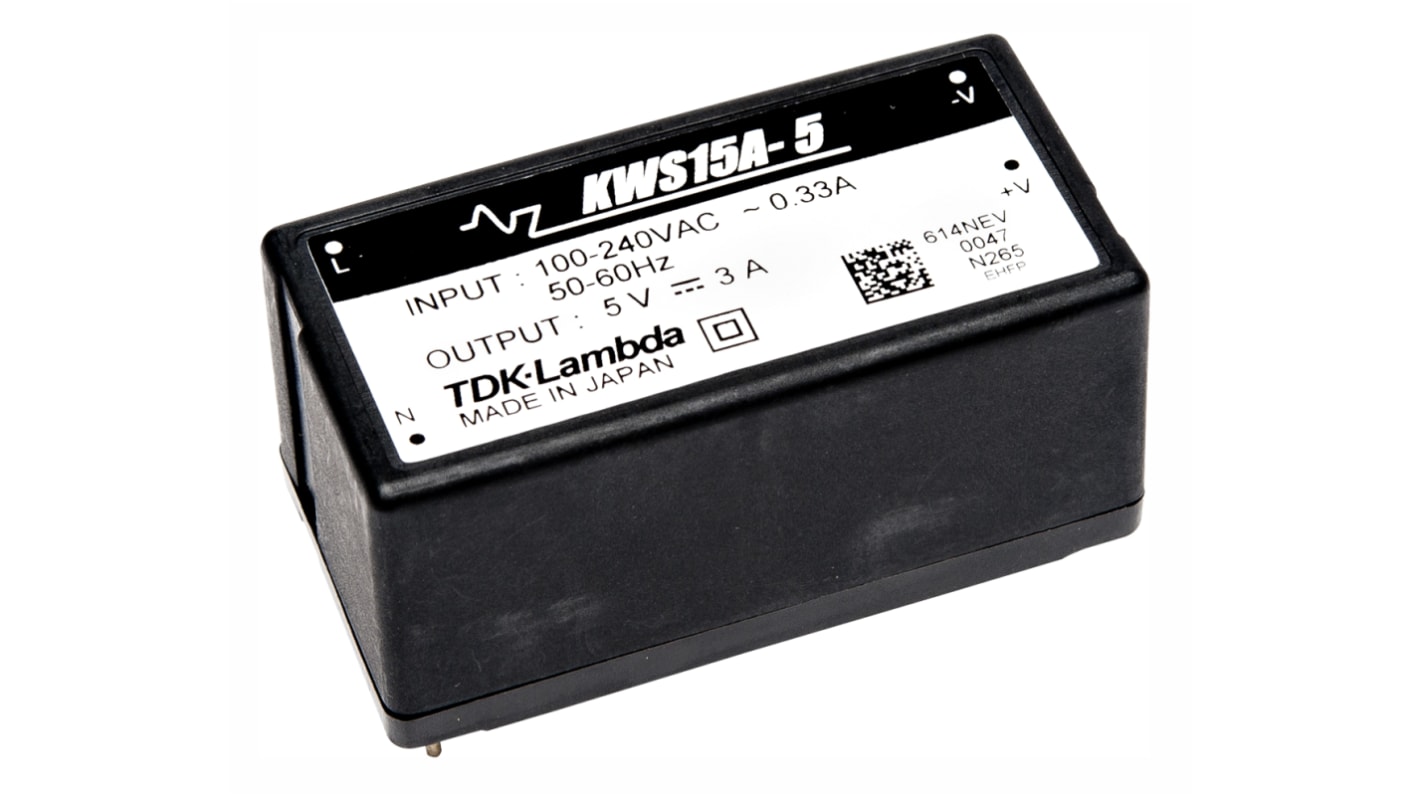

TDK-Lambda, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - KW Series
TDk Lambda KW series of encapsulated PCB power supplies off a compact solution to a wide range of applications. The compact footprint of the KW series makes it suitable for space-critical applications without external components. The series is highly efficient with reduced power losses, making board thermal management easier.
Features and Benefits
Small, lightweight & universal input.
Input 85-265Vac, ideal for small systems and instrumentation applications worldwide.
Overvoltage/Overcurrent protection.
Plastic case complies to UL94V-0.
Conducted noise (EMI) VCCI-II and FCC-B (will meet VDE-B with external capacitor).
Typical Applications
Industrial.
Test & measurement.
Communications & Broadcast.
Note
MTBF to MIL-HDBK-217D.
Should not be run under sustained short circuit conditions.
Should not be run under sustained short circuit conditions.
Standards
IEC 950, EN60950
Approvals
TUV, UL recognised, CSA certified
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 700mA |
| Power Rating | 16.8W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 370 V dc, 85 → 265 V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 50.8mm |
| Width | 25.4mm |
| Depth | 24mm |
| Efficiency | 85% |
| Minimum Temperature | -10°C |
| Maximum Temperature | +85°C |
| Weight | 60g |
