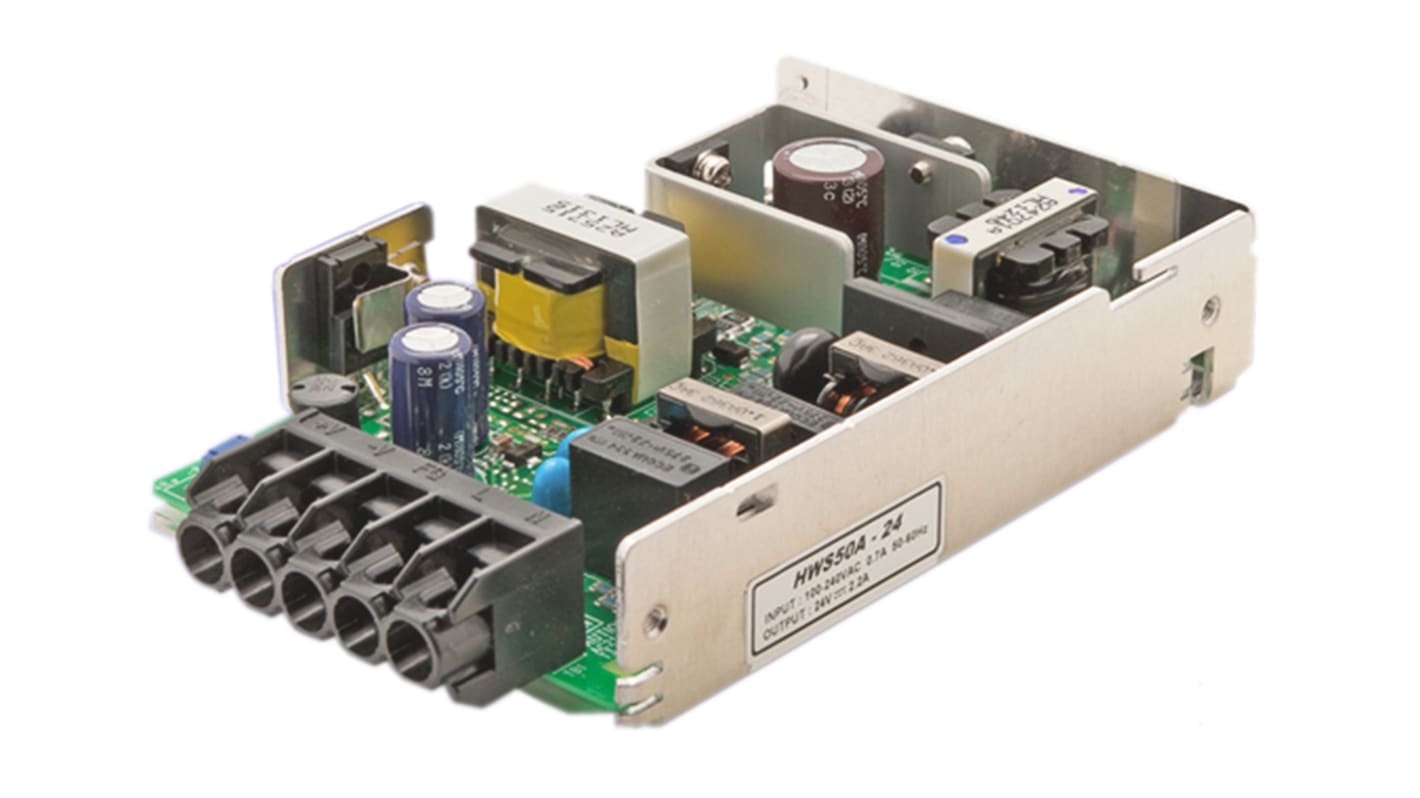

TDK-Lambda, HWS50A-24 Switching Power Supply 24V dc, 50 W 370 V dc, 265V ac
- RS Stock No.:
- 813-8954
- Mfr. Part No.:
- HWS50A-24
- Brand:
- TDK-Lambda
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£67.35
(exc. VAT)
£80.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
- Plus 5 unit(s) shipping from 20 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £67.35 |
| 5 - 9 | £65.32 |
| 10 - 24 | £63.31 |
| 25 - 49 | £61.29 |
| 50 + | £59.27 |
*price indicative
- RS Stock No.:
- 813-8954
- Mfr. Part No.:
- HWS50A-24
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 50W | |
| Minimum Operating Temperature | -10°C | |
| SMPS Output Current | 2.2A | |
| Maximum Operating Temperature | 50°C | |
| Length | 82mm | |
| Depth | 120mm | |
| Width | 26.5mm | |
| Standards/Approvals | CE, EN 50178, EN 55011 / EN 55022, FCC VCC, IEC 61000-4-2, IEC/EN/UL/CSA 60950-1 and 62368-1, SEMI-F47, UL 508, HWS1500: Class A | |
| Weight | 280g | |
| Series | HWS50A | |
| Maximum Input Voltage | 370V dc, 265V dc | |
| Efficiency | 87% | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 2.2A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 50W | ||
Minimum Operating Temperature -10°C | ||
SMPS Output Current 2.2A | ||
Maximum Operating Temperature 50°C | ||
Length 82mm | ||
Depth 120mm | ||
Width 26.5mm | ||
Standards/Approvals CE, EN 50178, EN 55011 / EN 55022, FCC VCC, IEC 61000-4-2, IEC/EN/UL/CSA 60950-1 and 62368-1, SEMI-F47, UL 508, HWS1500: Class A | ||
Weight 280g | ||
Series HWS50A | ||
Maximum Input Voltage 370V dc, 265V dc | ||
Efficiency 87% | ||
Minimum Input Voltage 85V ac | ||
Output Current 2.2A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- MY
15W to 1500W Single Output Industrial Power Supplies HWS-A Series
The TDK-Lambda HWS-A series of AC-DC power supplies, comprises five models rated from 15-150W. A significant upgrade of the established HWS series, which is still compatible with the new HWS-A series to enable easy upgrade. This switch mode power supply is up to 12% lighter compare to the previous series and features up to 91% efficiency and a very low power consumption at no load, contributing to a reduction in environmental impact. The HWS-A power supplies operate from a universal input of 85-265Vac, The 50, 100 and 150W models include active power factor correction, the operating temperature of the HWS-A models range from -10 to +50°C at full load and up to 70°C with appropriate derating. Typical industrial applications of these switch mode power supplies include equipment used for factory automation, process control, LED display and signage, test and measurement, broadcast and communications.
High efficiency up to 91%
Wide range AC input
Low cost
Easy system cooling
Supports global use
Limited Life time warranty
Note
Only the products with the suffix A at the end of the part number have a cover fitted, the others are open frame.
Approvals
UL/CSA/EN 60950-1 and UL508 (with cover)
Standards
EN55011/EN55022, FCC and VCCI curve B
