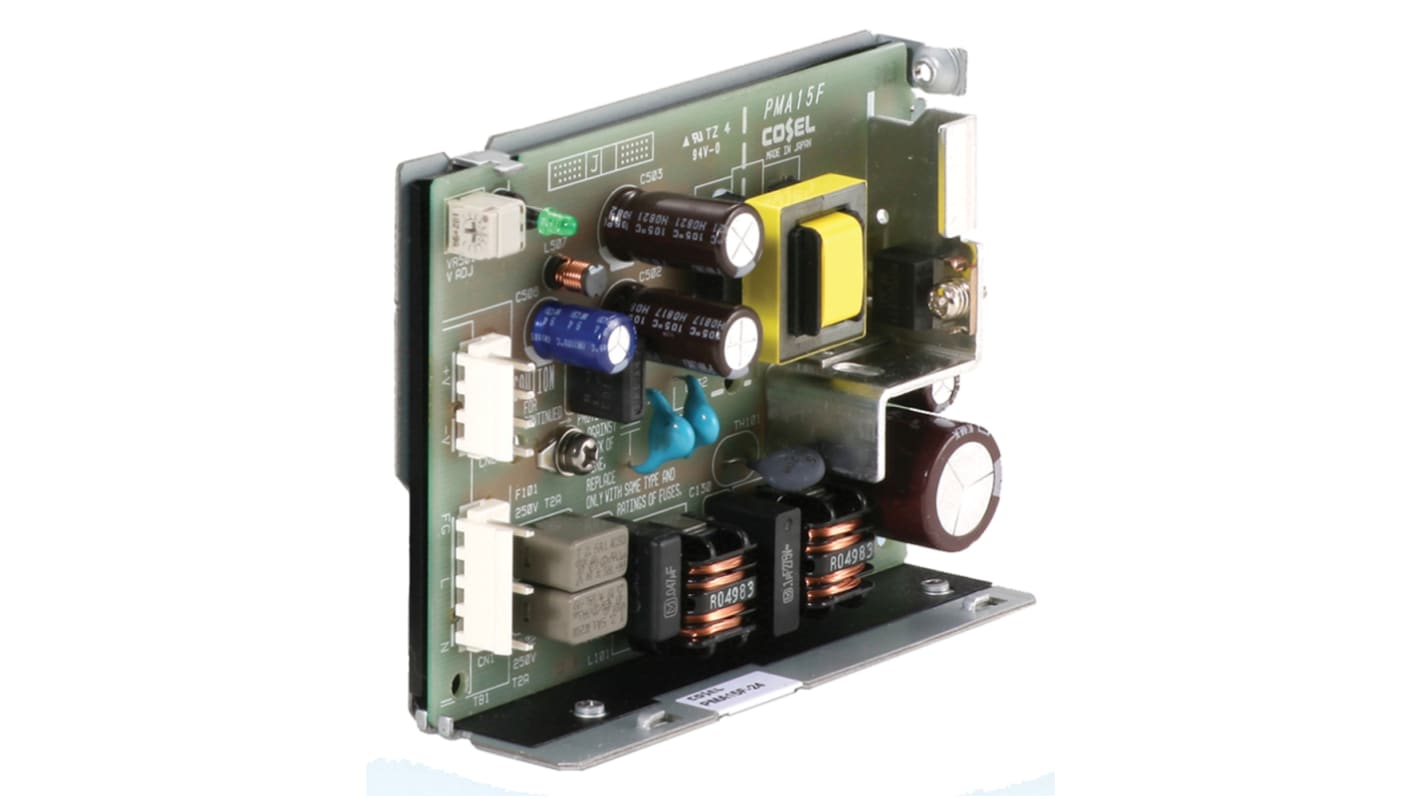

Cosel Switching Power Supply, PMA15F-24 24V dc, 700mA, 16.8 W, Input 85V ac to 264V ac
- RS Stock No.:
- 828-8602
- Mfr. Part No.:
- PMA15F-24
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£48.96
(exc. VAT)
£58.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £48.96 |
| 5 - 9 | £47.50 |
| 10 - 24 | £46.51 |
| 25 - 49 | £45.53 |
| 50 + | £44.55 |
*price indicative
- RS Stock No.:
- 828-8602
- Mfr. Part No.:
- PMA15F-24
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 16.8W | |
| SMPS Output Current | 700mA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 34.5mm | |
| Standards/Approvals | cURus, CE, RoHS | |
| Weight | 230g | |
| Length | 103mm | |
| Depth | 78mm | |
| Series | PMA15F | |
| Efficiency | 79% | |
| Maximum Input Voltage | 264V ac | |
| Hazardous Area Certification | NO | |
| Output Current | 700mA | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 16.8W | ||
SMPS Output Current 700mA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Width 34.5mm | ||
Standards/Approvals cURus, CE, RoHS | ||
Weight 230g | ||
Length 103mm | ||
Depth 78mm | ||
Series PMA15F | ||
Efficiency 79% | ||
Maximum Input Voltage 264V ac | ||
Hazardous Area Certification NO | ||
Output Current 700mA | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- JP
PMA Series
The PMA series of Cosel Power Supplies. Models come in a variety of specifications, including a current rating ranging from 0.7A to 20A. All Power supplies are open frame and come with a universal input. These power supplies are highly reliable, but the stress to P.C.B, such as twisting or bending may cause the defect of the unit, so handle the unit with care.
Features:
For medical electric equipment
Internal dual fuses
Harmonic attenuator (Complies with IEC61000-3-2)
Universal input 85 to 264 Vac
Efficiency increased with synchronous rectification technology (PMA60F, PMA100F)
Variety of option
Switch Mode Cosel Open Frame
Standards
UL60601-1, C-UL (CSA-C22.2 No.601.1), EN60601-1
