MEAN WELL Switching Power Supply, RID-65B, 5V, 4A, 65W, Dual Output, 88 → 264 V ac/dc, 125 → 373 V ac/dc
- RS Stock No.:
- 611-365
- Mfr. Part No.:
- RID-65B
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£17.45
(exc. VAT)
£20.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.45 |
*price indicative
- RS Stock No.:
- 611-365
- Mfr. Part No.:
- RID-65B
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 5V | |
Output Current | 4A | |
Power Rating | 65W | |
Number of Outputs | 2 | |
Input Voltage | 88 → 264 V ac/dc, 125 → 373 V ac/dc | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 5V | ||
Output Current 4A | ||
Power Rating 65W | ||
Number of Outputs 2 | ||
Input Voltage 88 → 264 V ac/dc, 125 → 373 V ac/dc | ||
- COO (Country of Origin):
- CN

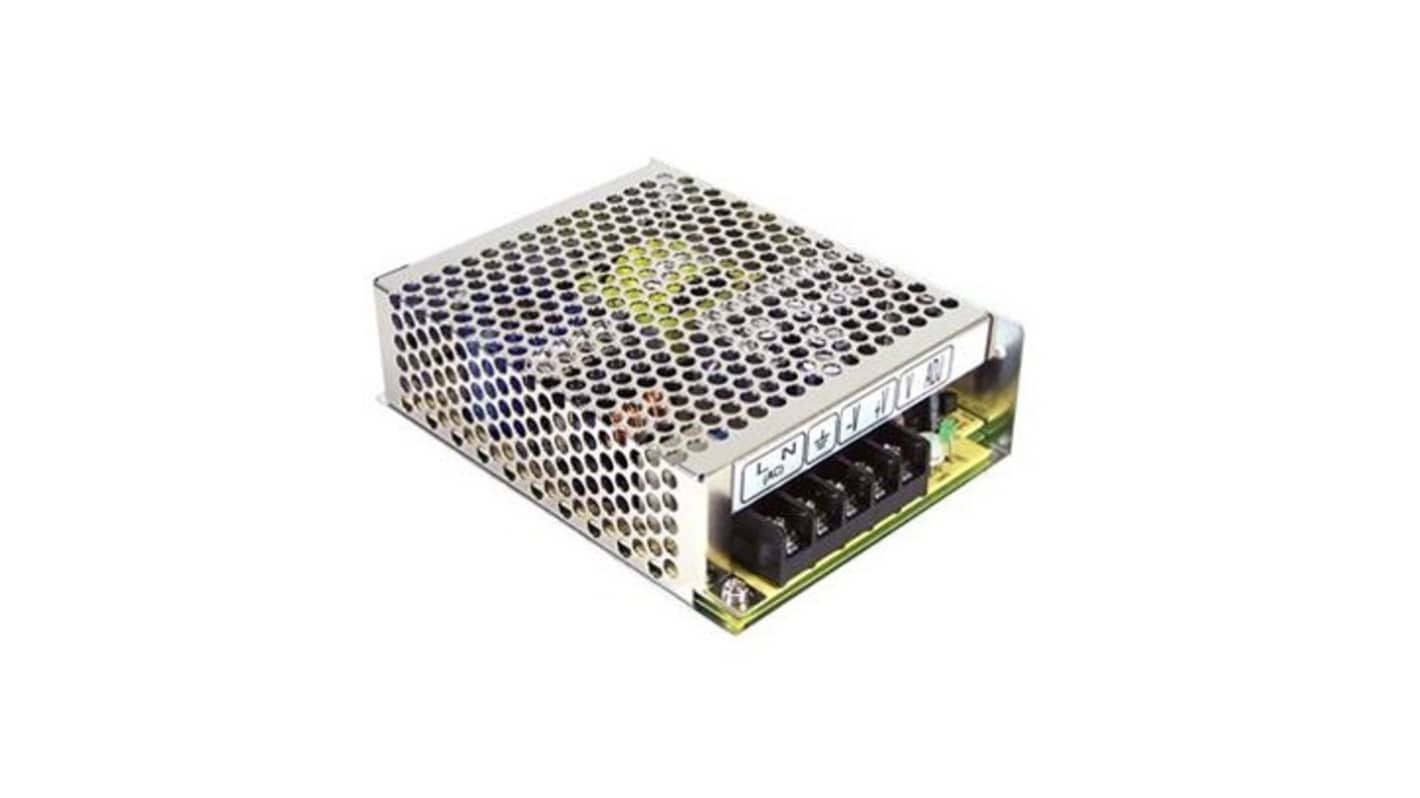

The MEANWELL 65W dual output switching power supply features isolated output and ground for CH1 and CH2, with a universal full-range AC input. It includes protections against short circuit, overload, and overvoltage. Cooling is achieved through free air convection, and an LED indicator shows power status. The unit undergoes a 100% full load burn-in test and uses 105°C long-life electrolytic capacitors for enhanced reliability.
Withstand 300VAC surge input for 5 second
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
