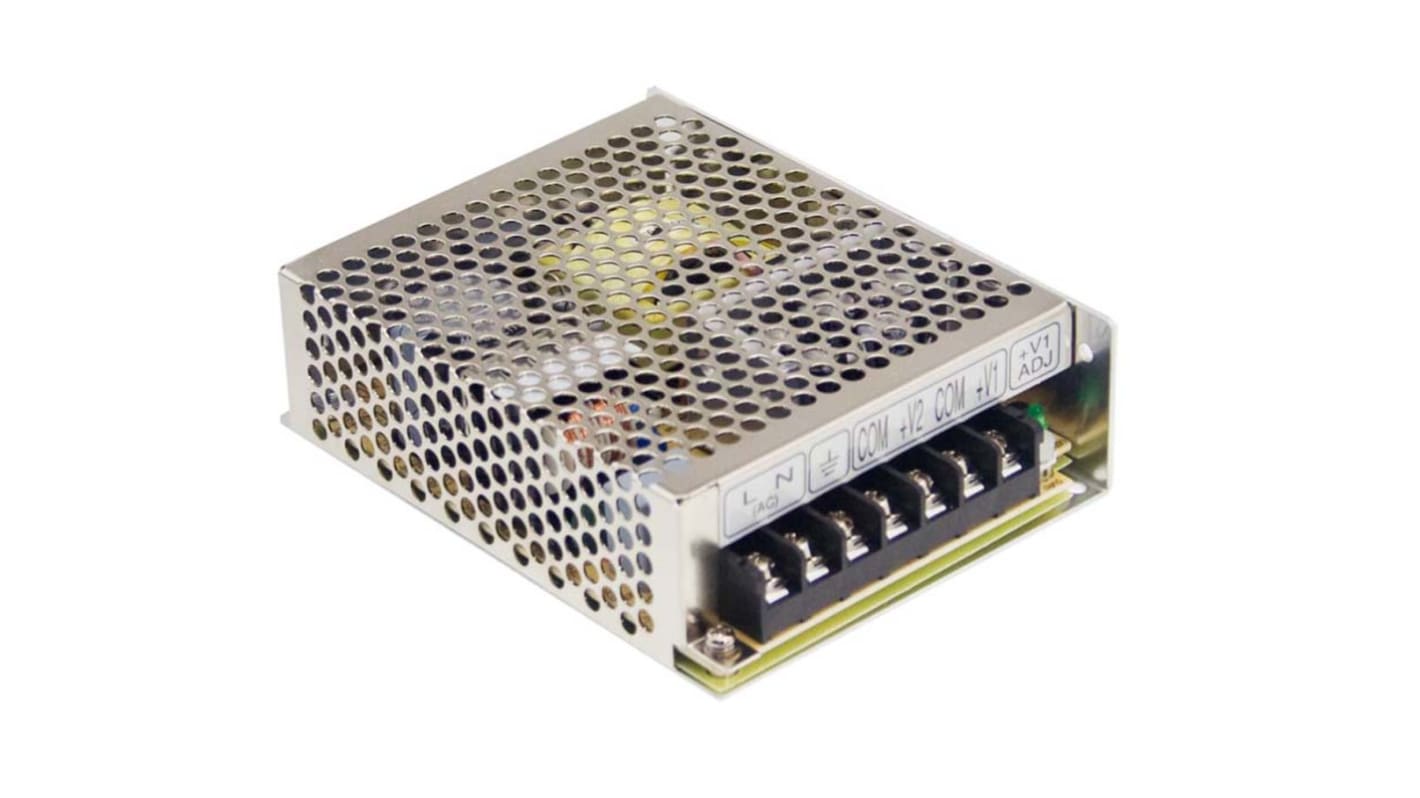

MEAN WELL Switching Power Supply, RS-75-5, 5V dc, 12A, 60W, 1 Output, 125 → 373 V dc, 88 → 264 V ac Input

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£20.88

(exc. VAT)

£25.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 43 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£20.88
5 - 9£20.35
10 - 24£19.86
25 - 49£19.31
50 +£17.73

*price indicative

RS Stock No.:
678-3773
Distrelec Article No.:
169-05-916
Mfr. Part No.:
RS-75-5
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

5V dc

Output Current

12A

Power Rating

60W

Number of Outputs

1

Input Voltage

125 → 373 V dc, 88 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

129mm

Width

97mm

Depth

38mm

Efficiency

79%

Minimum Temperature

-25°C

Maximum Temperature

+70°C

Weight

410g

COO (Country of Origin):
CN

25W to 150W, Universal Input, Single and Dual Outputs


High efficiency, long life and high reliability
Miniature size, high power density
High operating temperature up to 70°C
105°C long life electrolytic capacitors
Easy installlation - screw terminals
Adjustable output voltage for single output types, 10.8 - 13.2V at 12V and 22 - 27.6V at 24V
Adjustable output voltage for dual output types on output 1, -5% to +10%
Dual outputs have a minimum load requirement, see output current data (within datasheet). The total load must not exceed the rated output power
Harmonic current compliance to EN 61000-3-2
EMC meets EN 55022 Class B
Short circuit, overload and overvoltage protection

Note

De-rating 2% per °C above 50°C on all types except;
RD50,65,125,RS-75-3.3 types de-rating 2% per °C above 45°C.
RD85,RS-100-3.3,RS-150-3.3 and 5 de-rating 2% per °C above 40°C.

Standards

EN60950, UL60950

Approvals

UL recognised, TUV, CB
