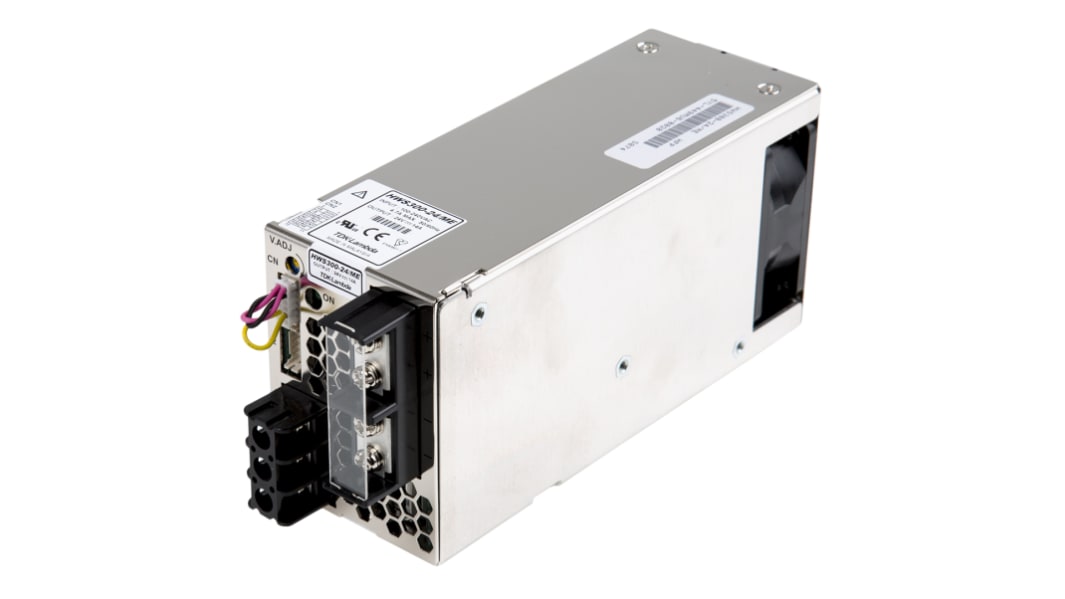

TDK-Lambda Switching Power Supply, HWS300-24/ME 24V dc, 14A, 336 W, Input 85V ac to 370 V dc, 265V ac
- RS Stock No.:
- 200-285
- Mfr. Part No.:
- HWS300-24/ME
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£415.55
(exc. VAT)
£498.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £415.55 |
| 5 - 9 | £403.09 |
| 10 - 24 | £390.62 |
| 25 - 49 | £378.16 |
| 50 + | £365.69 |
*price indicative
- RS Stock No.:
- 200-285
- Mfr. Part No.:
- HWS300-24/ME
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Rack | |
| Power | 336W | |
| SMPS Output Current | 14A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 165.1mm | |
| Weight | 1kg | |
| Depth | 60.96mm | |
| Standards/Approvals | SEMI-F47, UL 508, IEC/EN/UL/CSA 60950-1 and 62368-1, IEC 61000-4-2, HWS1500: Class A, FCC VCC, EN 55011 / EN 55022, EN 50178, CE | |
| Width | 82.04mm | |
| Efficiency | 90% | |
| Maximum Input Voltage | 370, 265V dc | |
| Series | HWS | |
| Output Current | 14A | |
| Hazardous Area Certification | NO | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Rack | ||
Power 336W | ||
SMPS Output Current 14A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Length 165.1mm | ||
Weight 1kg | ||
Depth 60.96mm | ||
Standards/Approvals SEMI-F47, UL 508, IEC/EN/UL/CSA 60950-1 and 62368-1, IEC 61000-4-2, HWS1500: Class A, FCC VCC, EN 55011 / EN 55022, EN 50178, CE | ||
Width 82.04mm | ||
Efficiency 90% | ||
Maximum Input Voltage 370, 265V dc | ||
Series HWS | ||
Output Current 14A | ||
Hazardous Area Certification NO | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- MY
50W to 300W, Universal Input, Single Output, Medical Approved, HWS-50-300/ME Series
Exceptionally compact, requires typically 60% less space than previous generation products
Medical approvals EN 60601-1, UL 60601-1
Leakage current less than 500μA
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B
Over-voltage and over-current protection
Open frame construction 50 to 150W
300W is enclosed with built-in fan
Note
Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.
Approvals
UL recognised, CSA
Standards
EN 60601-1, UL 60601-1, CSA-C22.2 No. 6011-M90
