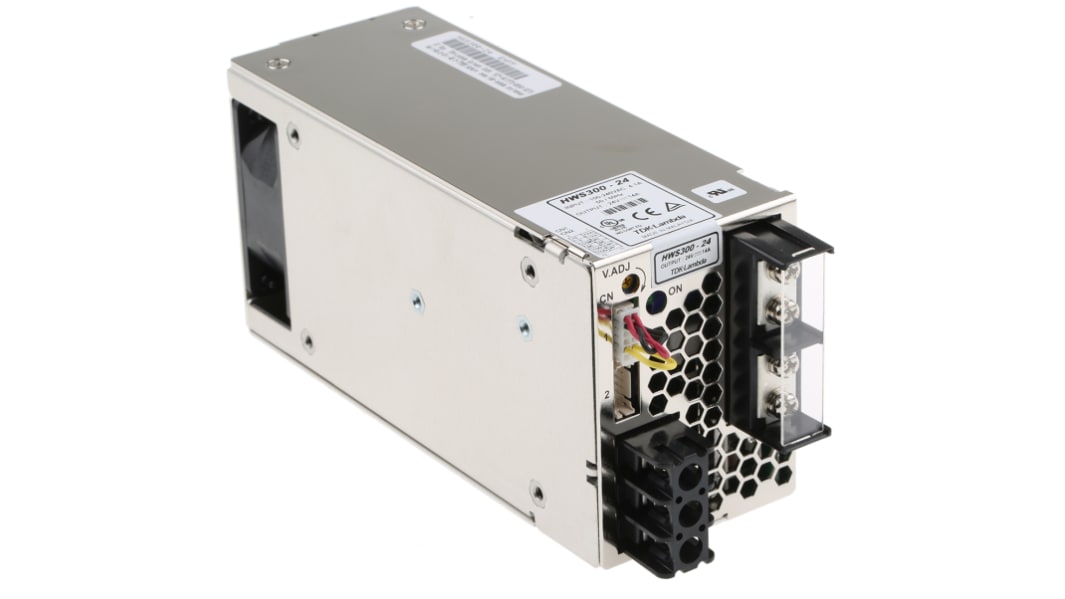

TDK-Lambda Switching Power Supply, HWS300-24, 24V dc, 14A, 336W, 1 Output, 120 → 330 V dc, 85 → 265 V ac
- RS Stock No.:
- 635-2177
- Distrelec Article No.:
- 169-83-478
- Mfr. Part No.:
- HWS300-24
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£329.57
(exc. VAT)
£395.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £329.57 |
5 - 9 | £319.68 |
10 - 24 | £309.79 |
25 - 49 | £299.91 |
50 + | £290.02 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£502.34
(exc. VAT)
£602.81
(inc. VAT)
- RS Stock No.:
- 635-2177
- Distrelec Article No.:
- 169-83-478
- Mfr. Part No.:
- HWS300-24
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | 24V dc | |
Output Current | 14A | |
Power Rating | 336W | |
Number of Outputs | 1 | |
Input Voltage | 120 → 330 V dc, 85 → 265 V ac | |
Mounting Type | Chassis Mount | |
Package Type | Enclosed | |
Length | 6.5in | |
Width | 3.23in | |
Depth | 2.4in | |
Efficiency | 85% | |
Maximum Temperature | +70°C | |
Weight | 1kg | |
Minimum Temperature | -10°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage 24V dc | ||
Output Current 14A | ||
Power Rating 336W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 330 V dc, 85 → 265 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 6.5in | ||
Width 3.23in | ||
Depth 2.4in | ||
Efficiency 85% | ||
Maximum Temperature +70°C | ||
Weight 1kg | ||
Minimum Temperature -10°C | ||
- COO (Country of Origin):
- MY
TDK-Lambda Switch Mode Power Supply
The TDK-Lambda HWS series 336W single output AC to DC embedded switch mode power supply has an output current rating of 14A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC/120VDC to 330VDC.
Note:
Peak load current for 10 seconds (maximum) ON time, 35% duty cycle. The de-rate output above 50°C. Depth excludes terminal block/ connectors.
Note:
Peak load current for 10 seconds (maximum) ON time, 35% duty cycle. The de-rate output above 50°C. Depth excludes terminal block/ connectors.
Features and Benefits
Adjustable output voltage (±20%)
Built-in fan on 300W to 1500W types
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment
Designed for high reliability
Easy installation
Exceptionally compact, requires typically 50% less space than previous generation products
LED indicator for power ON
Long product lifecycle
Overvoltage and overcurrent protection
Screw terminals
Built-in fan on 300W to 1500W types
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment
Designed for high reliability
Easy installation
Exceptionally compact, requires typically 50% less space than previous generation products
LED indicator for power ON
Long product lifecycle
Overvoltage and overcurrent protection
Screw terminals
Certifications
CE certified
CSA 60950-1
CSA approved
EN 50178
EN 55022-B
EN 60950-1
EN 61000-3-2 (power factor correction)
FCC class B
UL 60950-1
UL508
CSA 60950-1
CSA approved
EN 50178
EN 55022-B
EN 60950-1
EN 61000-3-2 (power factor correction)
FCC class B
UL 60950-1
UL508
