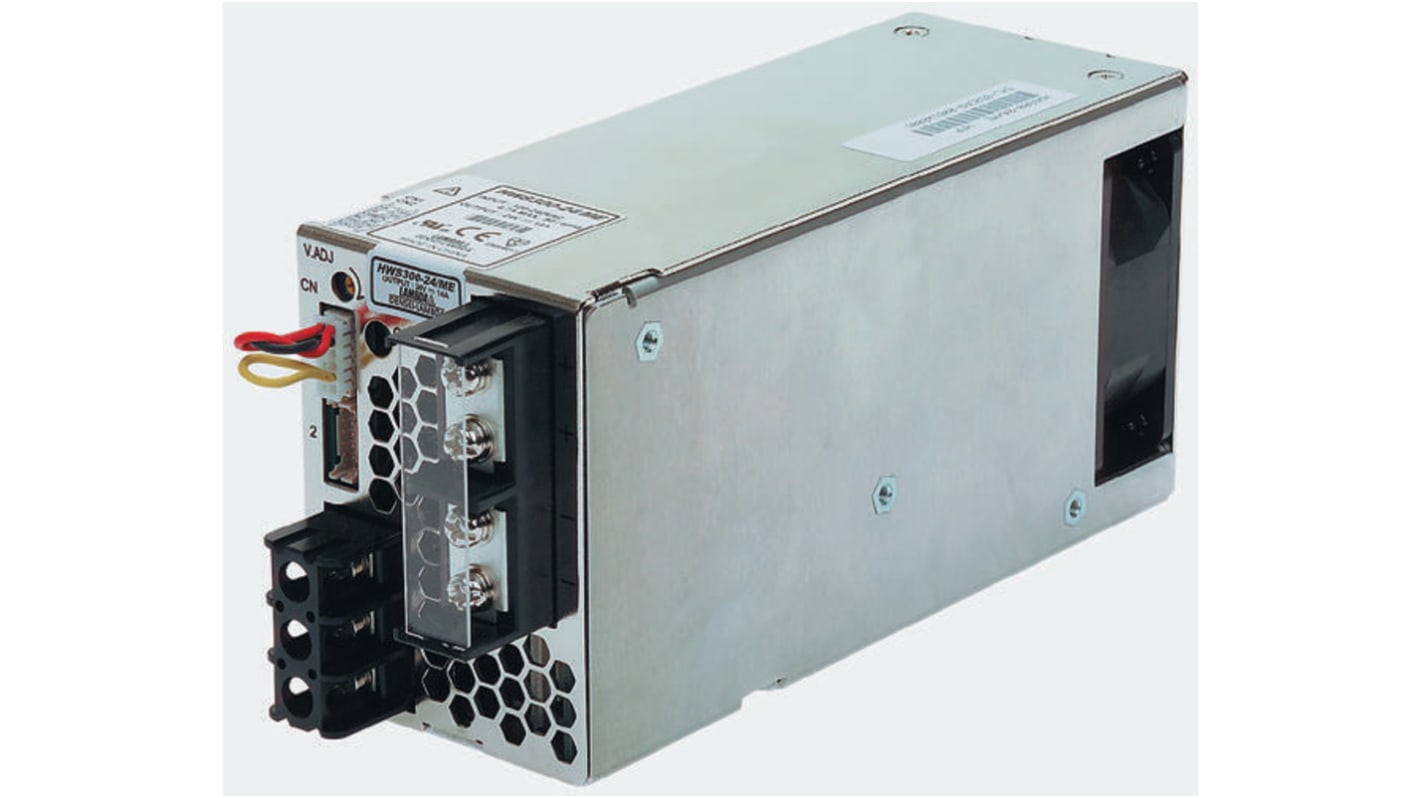

TDK-Lambda Switching Power Supply, HWS300-12/ME, 12V dc, 27A, 324W, 1 Output, 120 → 330 V dc, 85 → 265 V
- RS Stock No.:
- 200-083
- Mfr. Part No.:
- HWS300-12/ME
- Brand:
- TDK-Lambda
Available to back order for despatch 03/12/2024
Added
Price Each
£409.04
(exc. VAT)
£490.85
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £409.04 |
| 5 - 9 | £396.77 |
| 10 - 24 | £384.50 |
| 25 - 49 | £372.23 |
| 50 + | £359.96 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 200-083
- Mfr. Part No.:
- HWS300-12/ME
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
50W to 300W, Universal Input, Single Output, Medical Approved, HWS-50-300/ME Series
Exceptionally compact, requires typically 60% less space than previous generation products
Medical approvals EN 60601-1, UL 60601-1
Leakage current less than 500μA
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B
Over-voltage and over-current protection
Open frame construction 50 to 150W
300W is enclosed with built-in fan
Medical approvals EN 60601-1, UL 60601-1
Leakage current less than 500μA
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B
Over-voltage and over-current protection
Open frame construction 50 to 150W
300W is enclosed with built-in fan
Note
Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.
Standards
EN 60601-1, UL 60601-1, CSA-C22.2 No. 6011-M90
Approvals
UL recognised, CSA
Approvals
UL recognised, CSA
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Output Current | 27A |
| Power Rating | 324W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 330 V dc, 85 → 265 V ac |
| Mounting Type | Rack Mount |
| Package Type | Enclosed |
| Length | 6.5in |
| Width | 3.23in |
| Medical Approved | Yes |
| Depth | 2.4in |
| Maximum Temperature | +70°C |
| Weight | 1kg |
| Minimum Temperature | -10°C |
