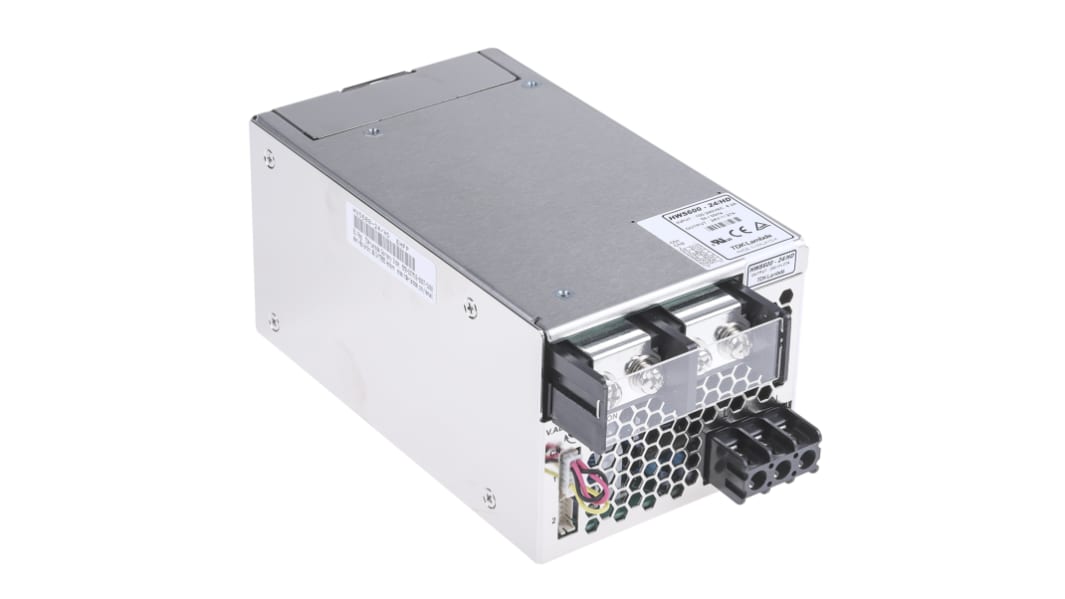

TDK-Lambda Switching Power Supply, HWS600-24/HD, 24V dc, 27A, 648W, 1 Output, 120 → 330 V dc, 85 → 265 V
- RS Stock No.:
- 200-308
- Mfr. Part No.:
- HWS600-24/HD
- Brand:
- TDK-Lambda
16 In stock - FREE next working day delivery available
Price Each
£618.57
(exc. VAT)
£742.28
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £618.57 |
| 5 - 9 | £600.01 |
| 10 - 24 | £581.46 |
| 25 - 49 | £562.90 |
| 50 + | £544.34 |
- RS Stock No.:
- 200-308
- Mfr. Part No.:
- HWS600-24/HD
- Brand:
- TDK-Lambda
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
50W to 1500W, Universal Input, Single Output, Heavy Duty, HWS-50-1500/HD Series
Exceptionally compact, requires typically 60% less space than previous generation products
Heavy-duty power supplies designed to perform reliably in the harshest of environments
Can start up at temperatures as low as -40°C
Conformal coating applied to both sides of the PCB, allowing use adverse environmental conditions
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B (curve A for HWS1500)
Over-voltage and over-current protection
Open frame construction 50 to 150W
300 to 1500W are enclosed and have built-in fan
Meet MIL-STD-810F standards for vibration and shock
Heavy-duty power supplies designed to perform reliably in the harshest of environments
Can start up at temperatures as low as -40°C
Conformal coating applied to both sides of the PCB, allowing use adverse environmental conditions
LED indicator for power on
Easy installation - screw terminals
Adjustable output voltage (±20%)
Power factor correction to EN 61000-3-2
EMC meets EN 55022-B, FCC-B (curve A for HWS1500)
Over-voltage and over-current protection
Open frame construction 50 to 150W
300 to 1500W are enclosed and have built-in fan
Meet MIL-STD-810F standards for vibration and shock
Note
Dimensions quoted exclude terminal block. Peak load for 10ms max on time, 35% duty cycle. De-rate above 50°C.
Standards
EN 60950-1, UL 60950-1, CSA 60950-1, EN 50178
Approvals
UL recognised, CSA
Approvals
UL recognised, CSA
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 27A |
| Power Rating | 648W |
| Number of Outputs | 1 |
| Input Voltage | 120 → 330 V dc, 85 → 265 V ac |
| Mounting Type | Rack Mount |
| Package Type | Enclosed |
| Length | 6.5in |
| Width | 3.23in |
| Depth | 3.94in |
| Efficiency | 85% |
| Weight | 1.6kg |
| Minimum Temperature | -10°C |
| Maximum Temperature | +71°C |
