Bourns, SRN4030HA, 4030 Shielded Power Inductor with a Ferrite Core, 2.2 μH ±30 % 4.3 A Idc Q:14

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 tape of 10 units)*

£2.20

(exc. VAT)

£2.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 570 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tape*
10 - 40£0.22£2.20
50 - 90£0.196£1.96
100 - 190£0.165£1.65
200 +£0.134£1.34

*price indicative

Packaging Options:
RS Stock No.:
247-5927
Mfr. Part No.:
SRN4030HA-2R2Y
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Power Inductor

Inductance

2.2μH

Maximum DC Current

4.3A

Package/Case

4030

Packaging

Tape & Reel

Automotive Standard

AEC-Q200

Shielding

Yes

Pin Count

2

Minimum Operating Temperature

-55°C

Maximum DC Resistance

30mΩ

Series

SRN4030HA

Inductance Tolerance

±30 %

Maximum Operating Temperature

150°C

Height

3mm

Termination Style

Surface Mount

Depth

4mm

Core Material

Ferrite

Standards/Approvals

RoHS

Maximum Self Resonant Frequency

47MHz

Minimum Quality Factor

14

Moulded

Yes

Inductor Construction

Wirewound

COO (Country of Origin):
CN

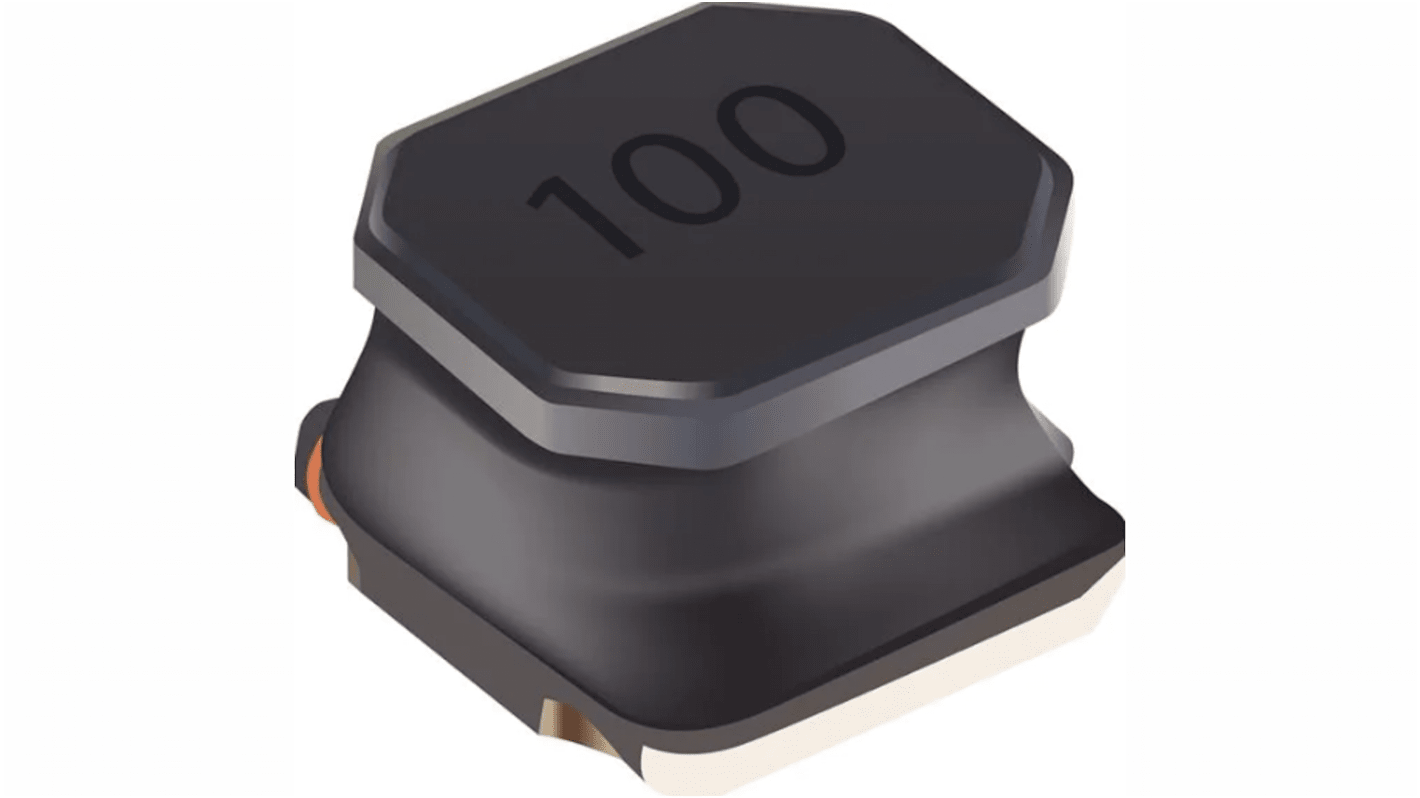

The Bourns SRN4030HA series is semi-shielded power Inductor with a ferrite core, enameled copper wire, and a magnetic epoxy resin coating. It has designed for automotive electronics applications and is AEC-Q200 qualified but they can also be used on other applications where high inductor reliability is required. It has 2.2 μH inductance and 4.3 A rated current.

Operating temperature is -55 °C to 150 °C

Halogen free

RoHS compliant
